ITEM NO. PART NO. DESCRIPTION QTY.
1 63738 Sensor,
6' lead
....................................... 3
63739 Sensor,
12' lead (use at switch no.3 when extra lead length is required)
..
2 63741 Actuator .......................................... 3
3 63216 Bracket ........................................... 1
4 63133 Alignment Bracket.................................... 3
5 † Spacer............................................ 6
6 10039 Hex Head Cap Screw,
1/4-20 x 1", s.s.
....................... 2
7 10230 Hex Nut,
1/4-20, s.s.
................................... 2
8 10231 Hex Nut,
locking, 10-24, s.s.
.............................. 12
9 10233 Hex Head Cap Screw,
10-24 x 1", s.s.
....................... 2
10 10348 Hex Head Cap Screw,
10-24 x 1-1/4", s.s.
..................... 4
11 10351 Hex Head Cap Screw,
10-24 x 7/8", s.s.
...................... 6
12 10045 Hex Head Cap Screw,
5/16-18 x 3/4", s.s.
..................... 4
13 10306 Hex Nut,
locking, 5/16-18, s.s.
............................. 4
14 11548 Cord Connector,
7/32", 90
° .............................. 4
15 11617 Conduit Connector,
straight, 1-1/4" (NEMA assemblies)
............ 1
11619 Conduit Connector,
straight, 1-1/2" (CE compliant & NEMA assemblies)
. 1
16 11618 Conduit Connector,
90
°
, 1-1/4" (NEMA assemblies)
.............. 1
11620 Conduit Connector,
90
°
, 1-1/2" (CE compliant & NEMA assemblies)
.... 1
17 11622 Sealing “O” Ring
(NEMA assemblies)
....................... 1
18 11538 Conduit Bushing,
1-1/4 x 1-1/2" (NEMA assemblies, use one of the
bushings listed to fit the hole in the motor conduit box)
............ 1
11540 Conduit Bushing,
1-1/2 x 2" (NEMA assemblies)
................ 1
11541 Conduit Bushing,
1-1/4 x 2" (NEMA assemblies)
................ 1
19 13424 Clip .............................................. 1
20 13465 Clip .............................................. 11
21 11513 Cable Tie .......................................... 10
22 11534 Cable Tie,
small
...................................... 20
23 11582 Conduit Hub,
1"
....................................... 1
GREASE SPINDLE MACHINES CONTAIN IN ADDITION:
24 63738 Sensor,
6' lead
....................................... 1
25 63741 Actuator .......................................... 1
26 † Spacer............................................ 1
27 10231 Hex Nut,
locking, 10-24, s.s.
.............................. 4
28 10233 Hex Head Cap Screw,
10-24 x 1", s.s.
....................... 4
†See chart below to select spacer so that sensor and actuator are aligned.
PARTS
Electrical Assembly (Switches)
129

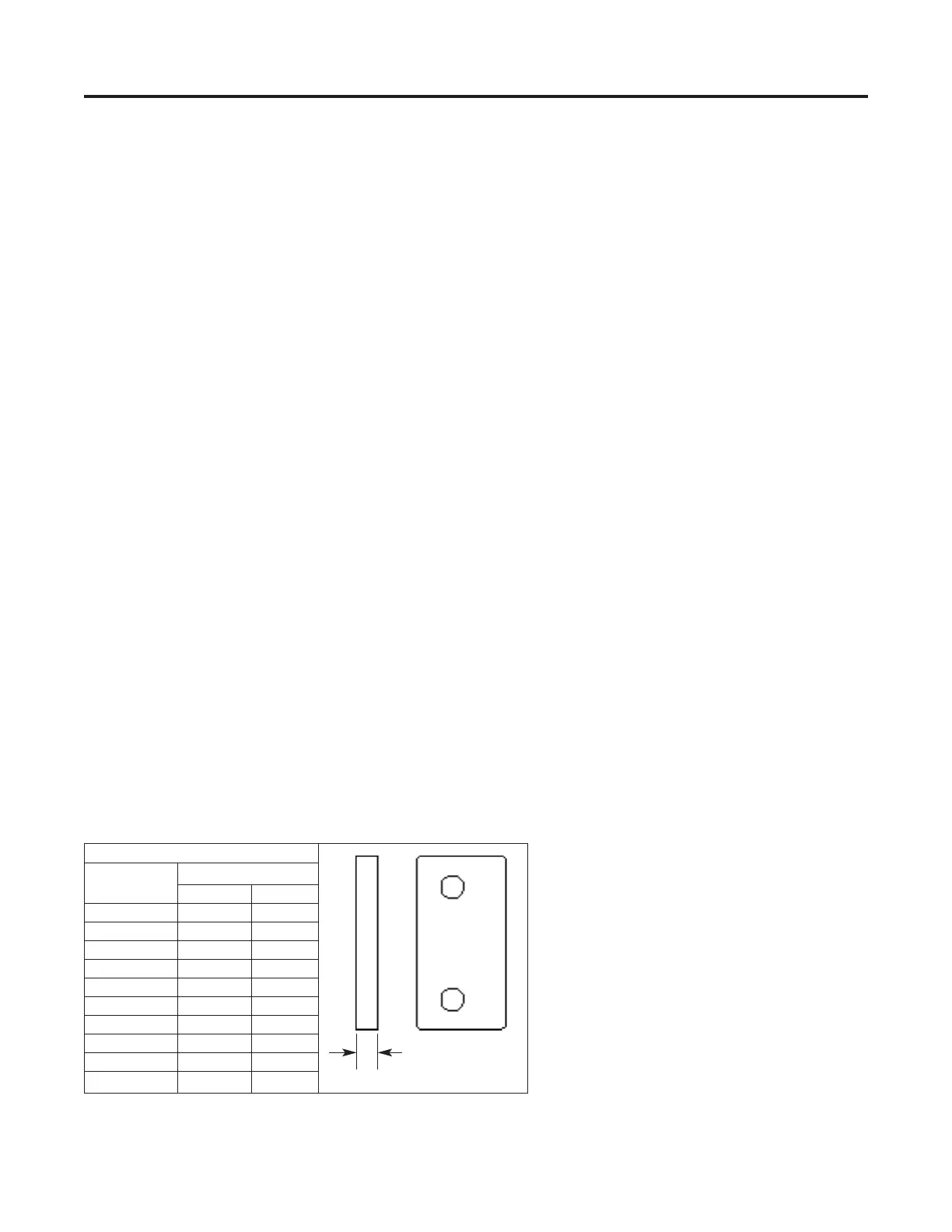

SWITCH SPACER CHART
Item 72 Thickness
Part No. inches mm
63084 .037 .94
12799 .062 1.57
12800 .093 2.36
12801 .125 3.18
12802 .187 4.75
12803 .250 6.35
12804 .312 7.92
12805 .375 9.53
12806 .437 11.10
12807 .500 12.70
THICKNESS
