Troubleshooting > Troubleshooting

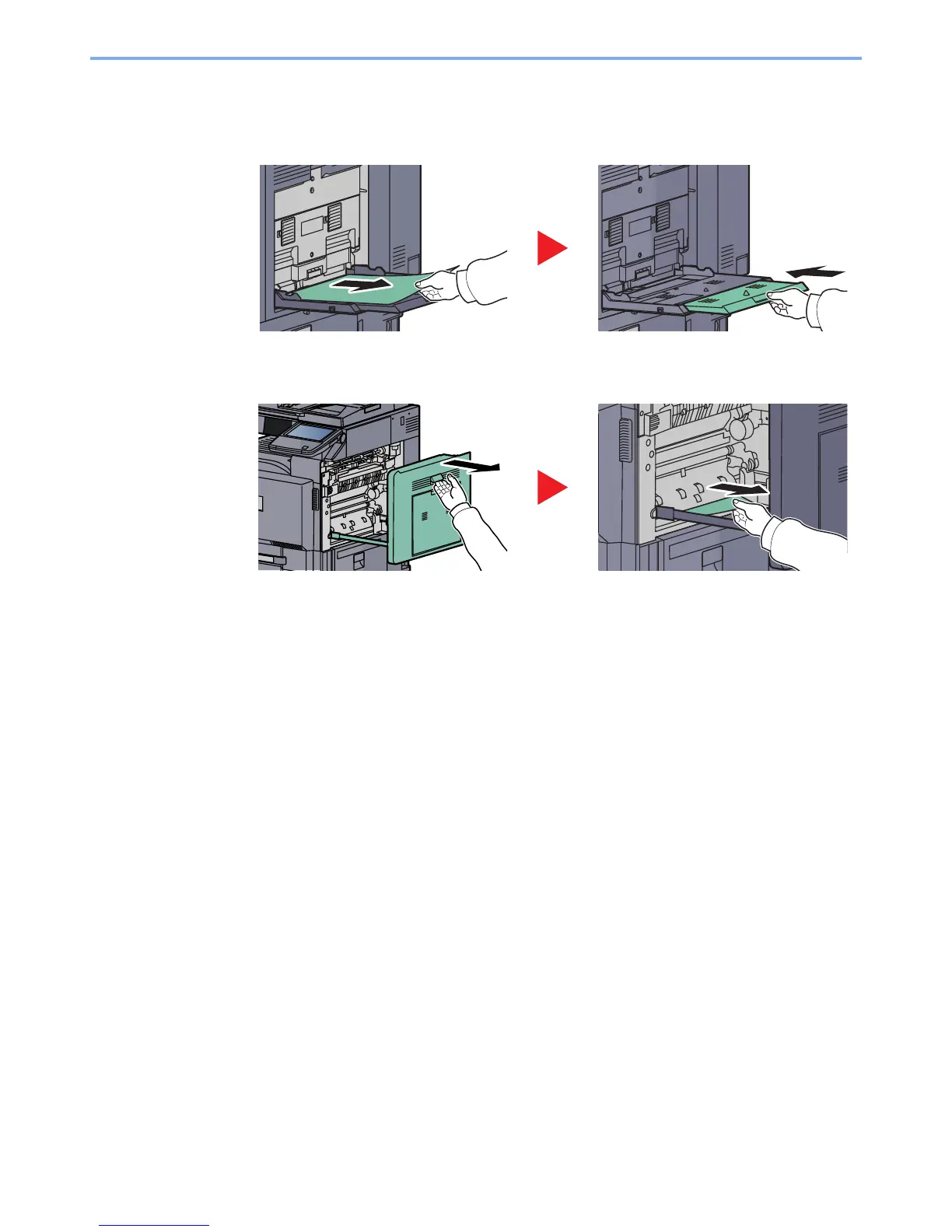

Inside the Right Covers 1, 3 and 4

If you are using the optional document finisher,

follow step on page

10-59

to remove jammed

paper

in the optional bridge unit
