9 - SELF-LEARNING OF WORKING TIMES
This menu allows the automatic learning of the times necessary to
open and close the gate.
During this phase, the control unit memorizes also the forces
necessary to open and close the gate: these values will be
activated by using the obstacle sensor.
m CAUTION: to perform the self-learning procedure it
is necessary to disable the ADI interface by means of the
menu i.Adi .
If some safeties are controlled by means of the ADI module,
they will not be active during the self-teaching stage.
m CAUTION: ATTENTION: before proceeding, make sure
to position the mechanical stops and the limit sensors
correctly.
1. Press and hold the OK key until the display shows -APP
2. Release the OK key: the display shows ESC
(only press the OK key if it is desired to exit this menu)
3. Press the i key: the display shows t.LAv
4. Press the OK key to activate the working time self-training
cycle: the display shows the control panel and starts the time
self-training procedure.
4.1 The gate will be activated in closing direction until the
stop end or the closing end of stroke is reached
4.2 The gate will be activated in opening direction until the
stop end or the opening end of stroke is reached
4.3 The gate will be activated in closing direction until the
stop end or the closing end of stroke is reached
m CAUTION: during self-learning stage of times, the
motor moves at reduced speed.
m PLEASE NOTE: If the control unit is left to time out
from programming mode (1 minute), the obstacle sensor
return to the value that was set prior to performing self-
training (according to the default values, the sensor is
disabled).
On the other hand, the limit switch positions are always
stored.
10 - EMERGENCY DEAD MAN OPERATION
This operational mode can be used to move the gate in DEAD
MAN mode in particular cases, such as installation/maintenance or
in the case of malfunctioning of photocell, edge, limit switches or
encoder.
To activate the function the START command must be pressed
3 times (presses must last at least 1 second; the pause between
commands must last at least 1 second).

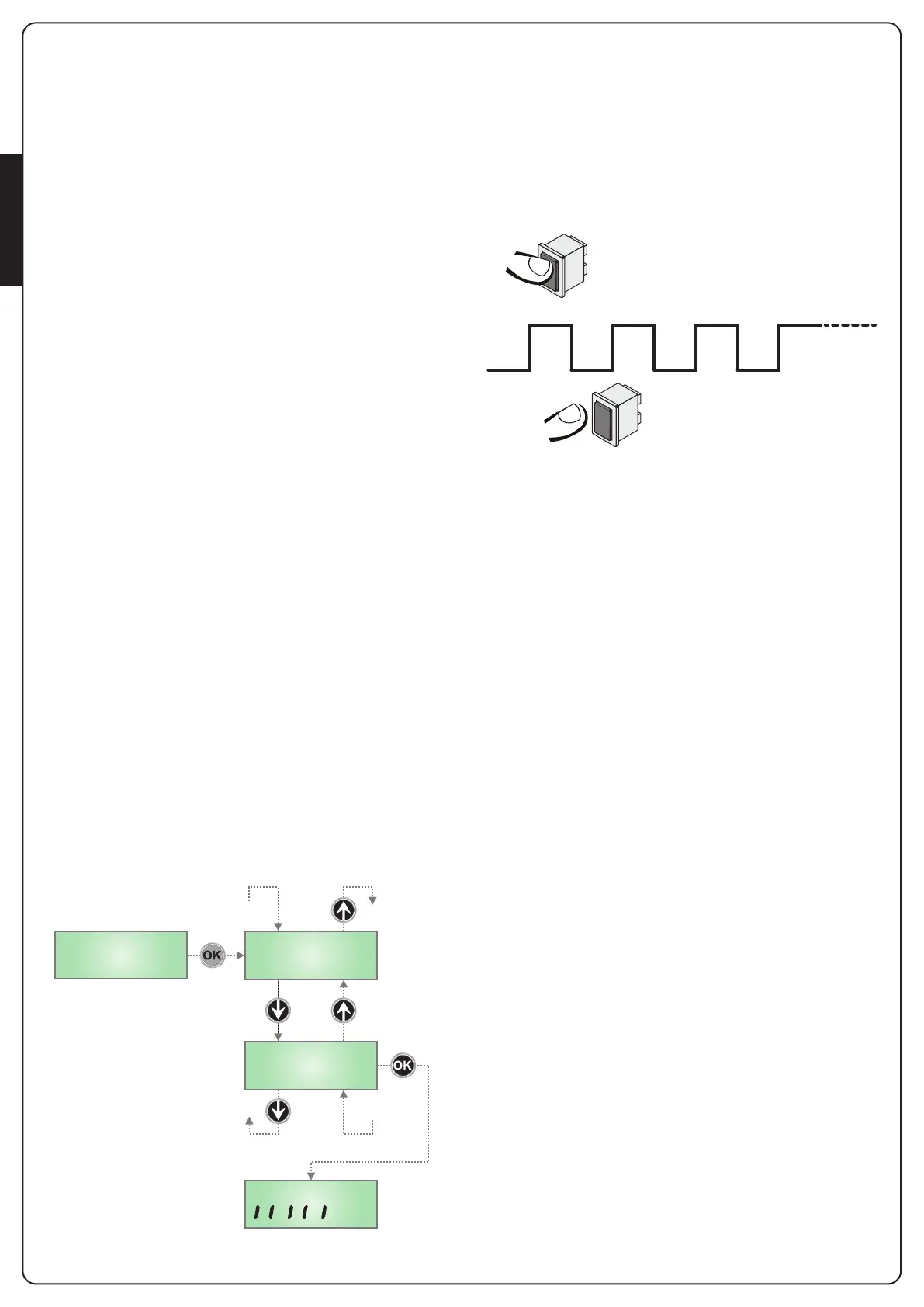

1” 1” 1” T
>1” >1” >1”
The fourth START command activates the gate in MAN PRESENT
mode. To move the gate keep the START command pressed for
the duration of the operation (time T).
The function will automatically turn off after 10 seconds of
inactivity of the gate.
NOTE: if the Strt parameter is set as StAn, the Start
command (from the terminal block or remote control) moves the
gate in the open and closed directions alternatively (unlike the
normal DEAD MAN mode).
t.LAv
ESC
-APP
