Vacon 100 Installation Manual

4.4.2 FLANGE MOUNTING OF MR5
Ø7
Ø7
436
454.1
262.5
145
144
150
169
9
13
382
24
39
33
27.5
100
214
114
11.5
72
145
102
12

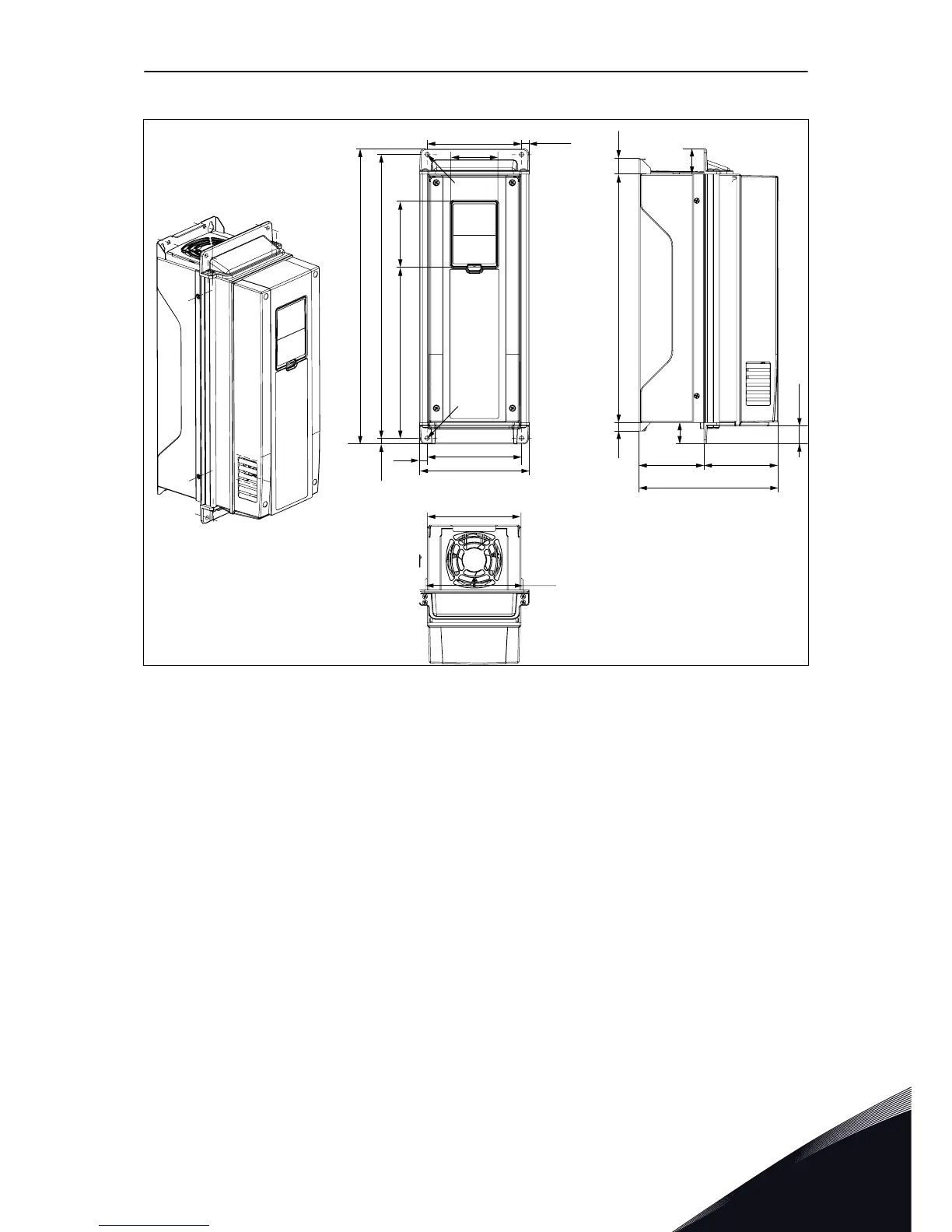

Fig. 22: The dimensions of the AC drive, flange mounting, MR5 [mm]
MOUNTING VACON · 43
24-HOUR SUPPORT +358 (0)201 212 575 · EMAIL: VACON@VACON.COM
4

Vacon 100 Specifications

General

Product type	AC Drive
Enclosure class	IP20
EMC filter	Built-in
Power	0.25 kW - 5.5 kW
Cooling method	Fan
Braking chopper	Optional
