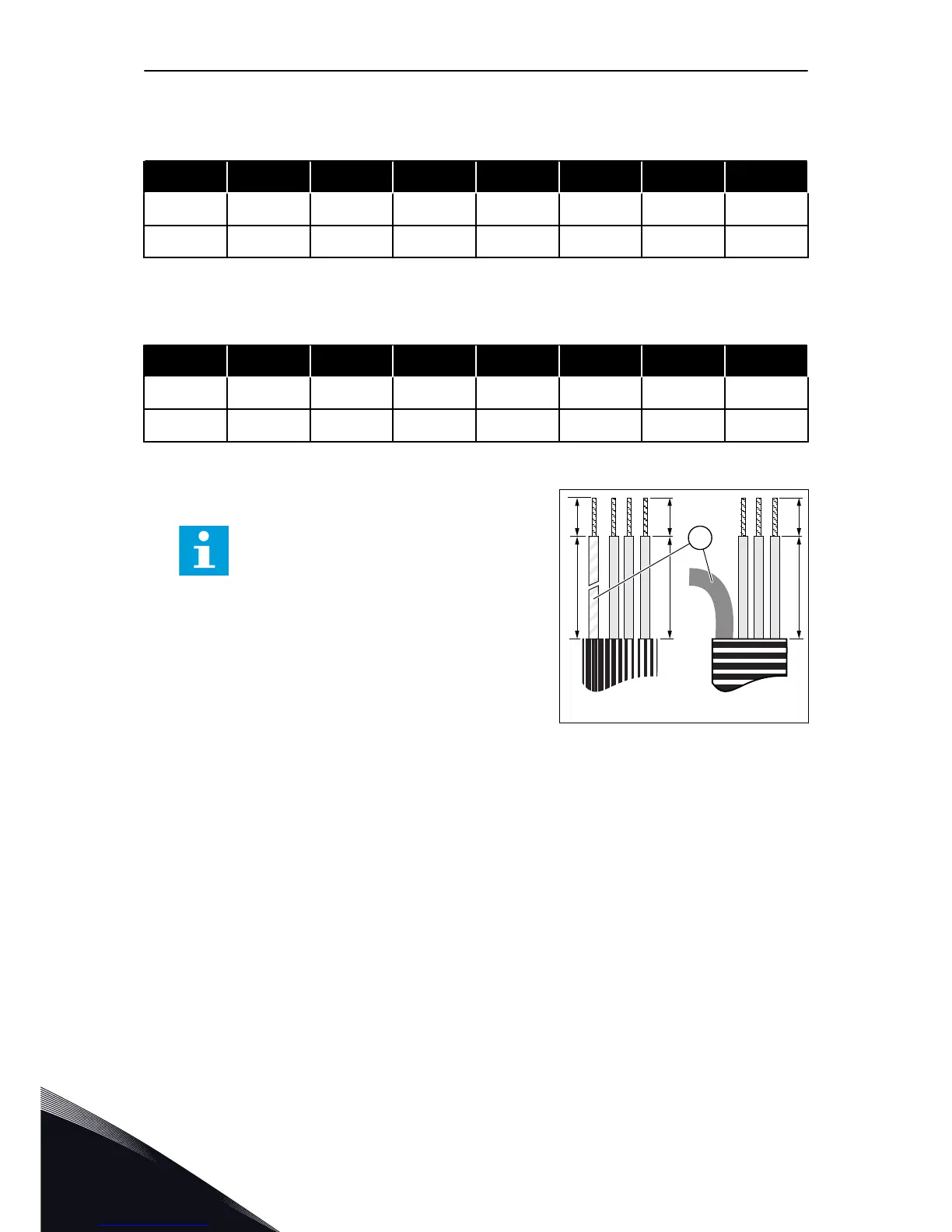

5.6.2 FRAMES MR8 TO MR9
Table 24: The cable stripping lengths [mm]. See the figure in step 1.
Frame A B C D E F G
MR8 40 180 25 300 25 300 *
MR9 40 180 25 300 25 300 *
* = As short as possible.
Table 25: The cable stripping lengths [in]. See the figure in step 1.
Frame A B C D E F G
MR8 1.6 7.1 1 11.8 1 11.8 *
MR9 1.6 7.1 1 11.8 1 11.8 *
* = As short as possible.
1 Strip the motor cable, the mains cable, and the
brake resistor cable.
NOTE!
The Vacon
®
100 FLOW and HVAC software
do not have the dynamic braking or the
brake resistor functions.
B
D
A
C
F
E
G
MAINS MOTOR
G. The grounding conductor
VACON · 76 POWER CABLING
5
