description of parameters vacon • 69
24-hour support +358 (0)40 837 1150 • Email: vacon@vacon.com
7
f
I
Par. ID710
Par. ID712
NX12k63
Stall area
708 Motor thermal protection: Motor duty cycle (2.6.12)
Defines how much of the nominal motor load is applied.
The value can be set to 0%…100%. See chapter 9.2.

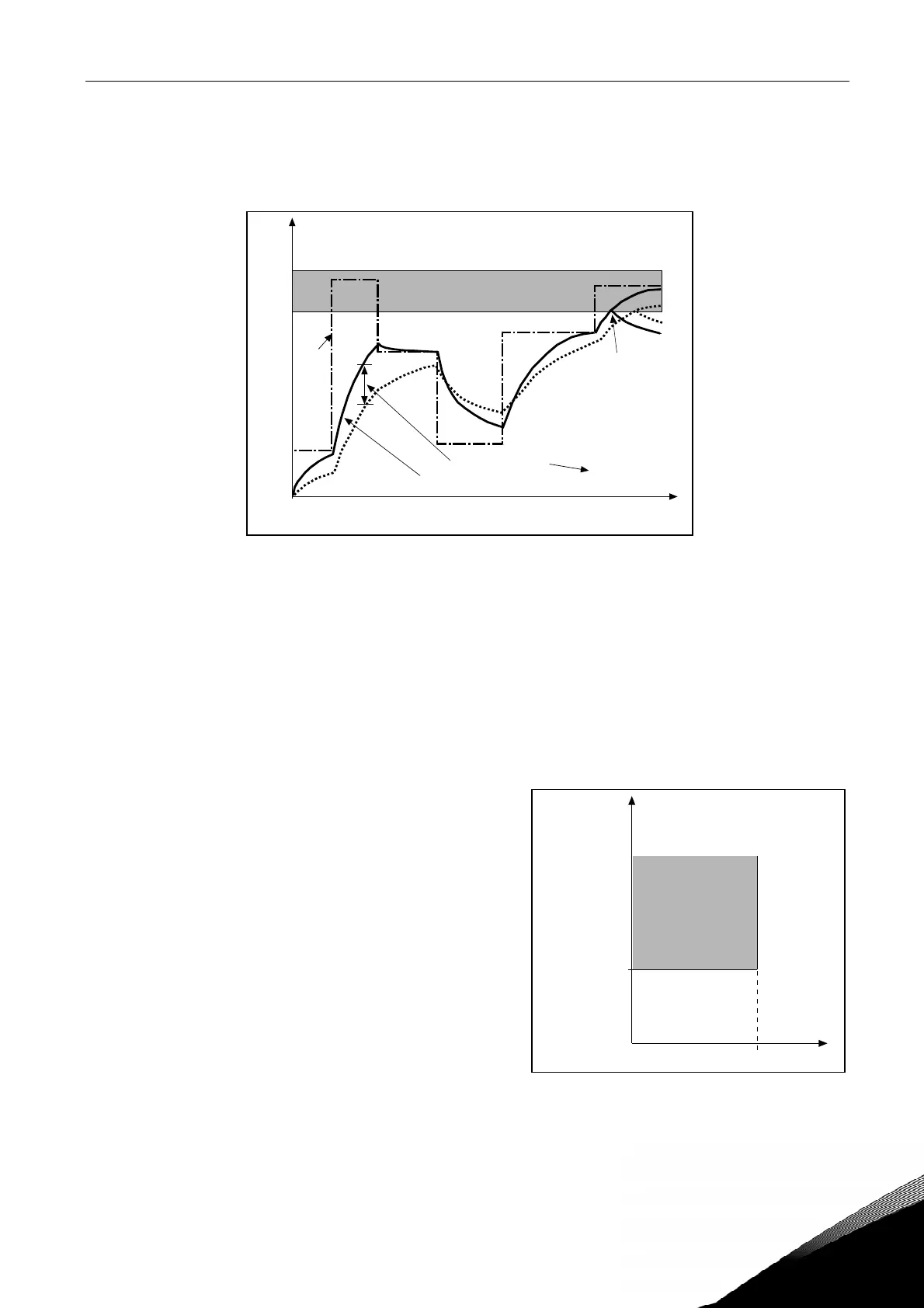

Figure 24. Motor temperature calculation
709 Stall protection (2.6.13)
0 = No response
1 = Warning
2 = Fault, stop mode after fault according to ID506
3 = Fault, stop mode after fault always by coasting
Setting the parameter to 0 will deactivate the protection and reset the stall time counter.
See chapter 9.3.
710 Stall current limit (2.6.14)
The current can be set to 0.1…I
nMotor
*2. For a
stall stage to occur, the current must have
exceeded this limit. See Figure 25. The
software does not allow entering a greater
value than I
nMotor
*2. If parameter ID113
Nominal current of motor is changed, this
parameter is automatically restored to the
default value (I
L
). See chapter 9.3.
Figure 25. Stall characteristics settings
105%
par. ID704
Θ
= (I/I
T
)
2
x (1-e
-t/T
)
I/I
T
NX12k82
Trip area
Motor temperature
Time
Motor temperature
Time constant T
*)
*) Changes by motor size and
adjusted with parameter ID707
Fault/warning
Motor
current
