X5 AC Drive User’s Manual Chapter 2: Technical Characteristics
DPD00089A - 22 - © 2009 Vacon Incorporated All Rights Reserved

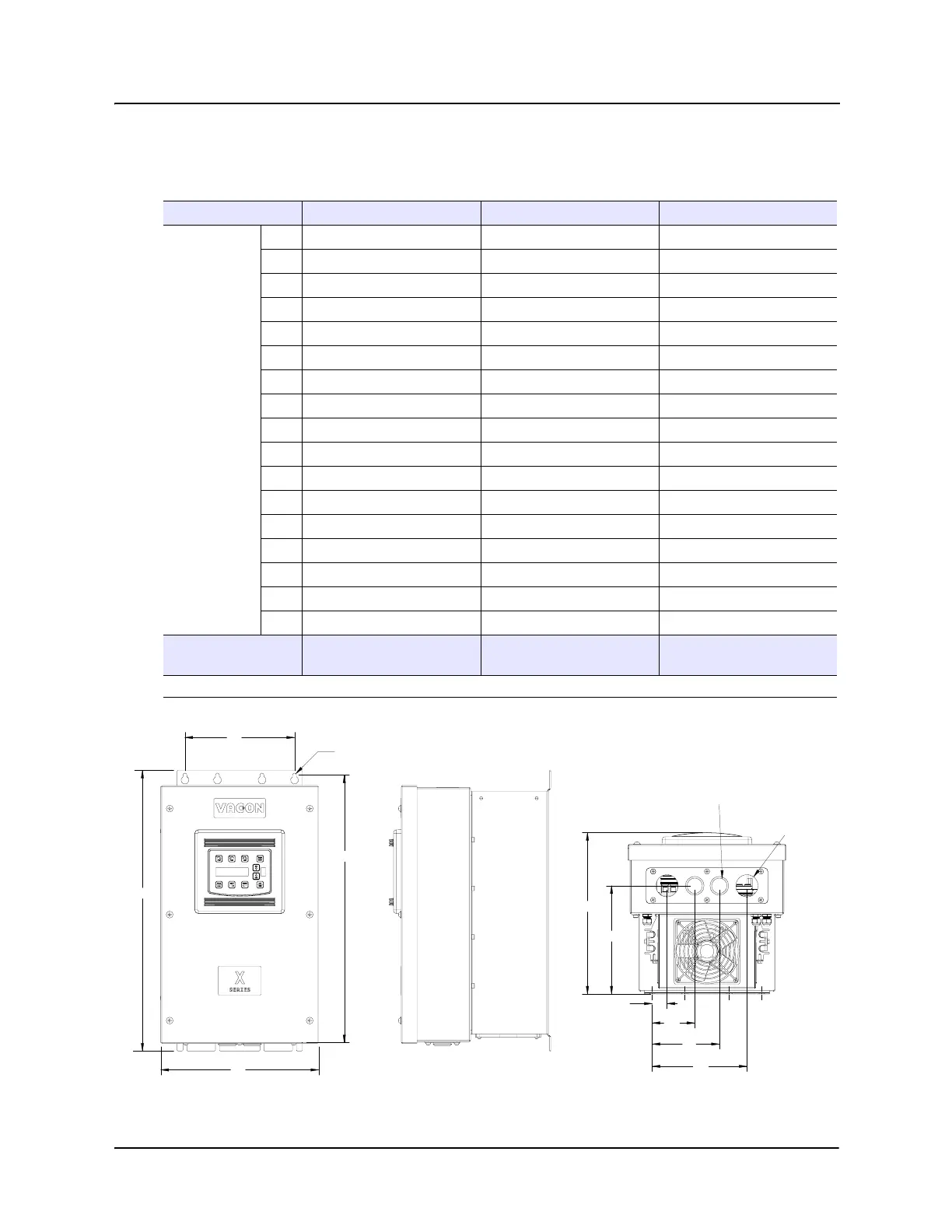

Figure 2-4: X5 Frame Size 3 Models
Table 2-3: Dimensions and Weights for Frame Sizes 3 - 5
Frame 3 4 5
Dimensions
in (mm)
(See X5
diagrams on
pages 23 - 23)
A
1
20.19 (513) 29.35 (745) 50.77 (1290)
B 11.25 (286) 12.84 (326) 16.31 (414)
C 11.73 (314) 13.80 (351) 16.88 (429)
D 19.25 (489) 28.00 (711) 45.77 (1163)
E 7.88 (200) 7.88 (200) 7.65 (194)
F 0.28 (7) 0.42 (11) 0.42 (11)
G 7.78 (198) 8.63 (219) 12.57 (319)
H N/A 8.26 (210) 11.10 (282)
J 0.65 (17) 0.53 (13) 0.20 (5)
K 2.29 (58) 2.69 (68) 2.32 (59)
L 3.95 (100) 3.94 (100) 3.82 (97)
M 1.69 (43) 2.44 (62) 2.94 (75)
N 0.88 (22) 0.88 (22) 0.88 (22)
P 5.60 (142) 5.19 (132) 5.32 (135)
Q 7.24 (184) 7.35 (187) 7.45 (189)
R N/A 10.23 (260) N/A
S N/A 1.94 (49) 1.86 (47)
Weight
lb (kg)
50.0 (22.68) 95.0 (43.10) 305.0 (138.35)
(1) For the X5C20300C, the A dimension changes to 21.00 inches (533 mm).
D
A
F(8PLACES)
B
E
C
G
J
K
L
P
M(2PLACES)
N (2 PLACES)
