X5 AC Drive User’s Manual Chapter 2: Technical Characteristics
DPD00089A - 20 - © 2009 Vacon Incorporated All Rights Reserved
2.6 Dimensions and Weights
Table 2-2 lists dimensions and weights for the X5 frame size 0, 1, 2, and 3 models. Dimensions and
weights for the X5 frame size 4 and 5 models are shown in Table 2-3 on page 22. You may wish to
refer to the cross-reference table on page 15 for X5 model numbers / frame sizes.
See Figures 2-2, 2-2, 2-3, 2-4, 2-5, and 2-6 on pages 21 - 23 for locations of dimensions. Dimensions
A onward are in inches / millimeters (in/mm). Weight is in pounds / kilograms (lb/kg).

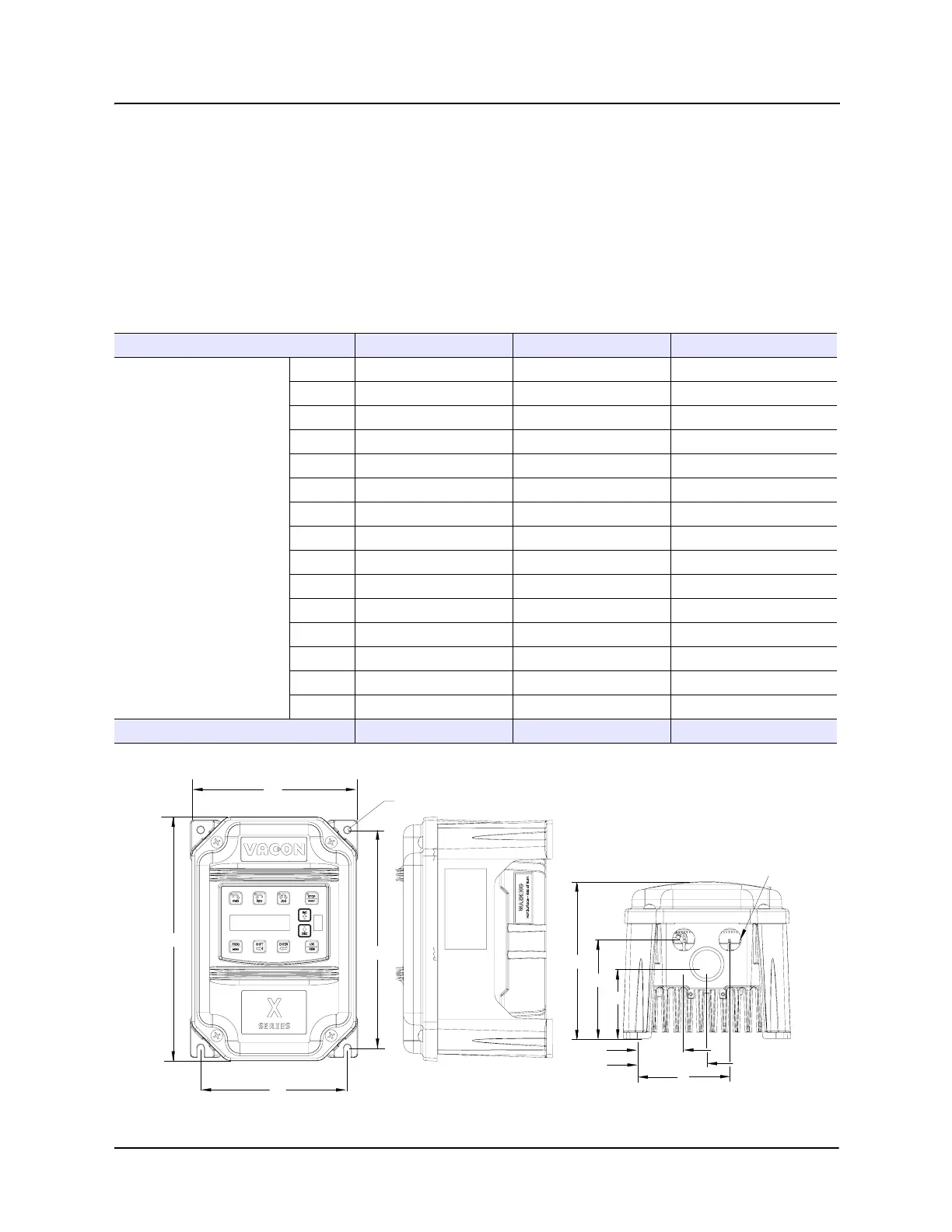

Figure 2-1: X5 Frame Size 0 Models
Table 2-2: Dimensions and Weights for Frame Sizes 0 - 2
Frame 0 1 / 1A 2 / 2A
Dimensions
in (mm)
(See X5 diagrams on pages
21 through 23)
A 9.47 (241) 12.01 (305) 17.38 (441)
B 6.50 (165) 8.72 (221) 10.75 (273)
C 6.08 (155) 8.49 (216) / 6.51 (166) 9.89 (251) / 7.91 (201)
D 8.45 (215) 11.03 (280) 16.50 (419)
E 5.69 (145) 7.88 (200) 9.76 (248)
F 0.28 (7.11) 0.28 (7) 0.41 (10)
G 3.84 (98) 4.05 (103) 4.72 (120)
H 2.77 (70) N/A N/A
J 1.93 (49) 2.31 (59) 2.88 (73)
K 2.85 (72) 3.94 (100) 4.84 (123)
L 3.75 (95) 5.56 (1.41) 6.88 (175)
M 0.88 (22) 0.88 (22) 1.38 (35)
N N/A N/A 1.13 (29)
P N/A N/A N/A
Q N/A N/A N/A
Weight lb (kg) 8.5 (3.85) 14.0 (6.35) 29.5 (13.38)
E
A
B
D
F
M
C
G
H
L
K
J
