X5 AC Drive User’s Manual Chapter 4: Connections
DPD00089A - 41 - © 2009 Vacon Incorporated All Rights Reserved
4.6.2 Typical Connection Diagrams for Digital Inputs

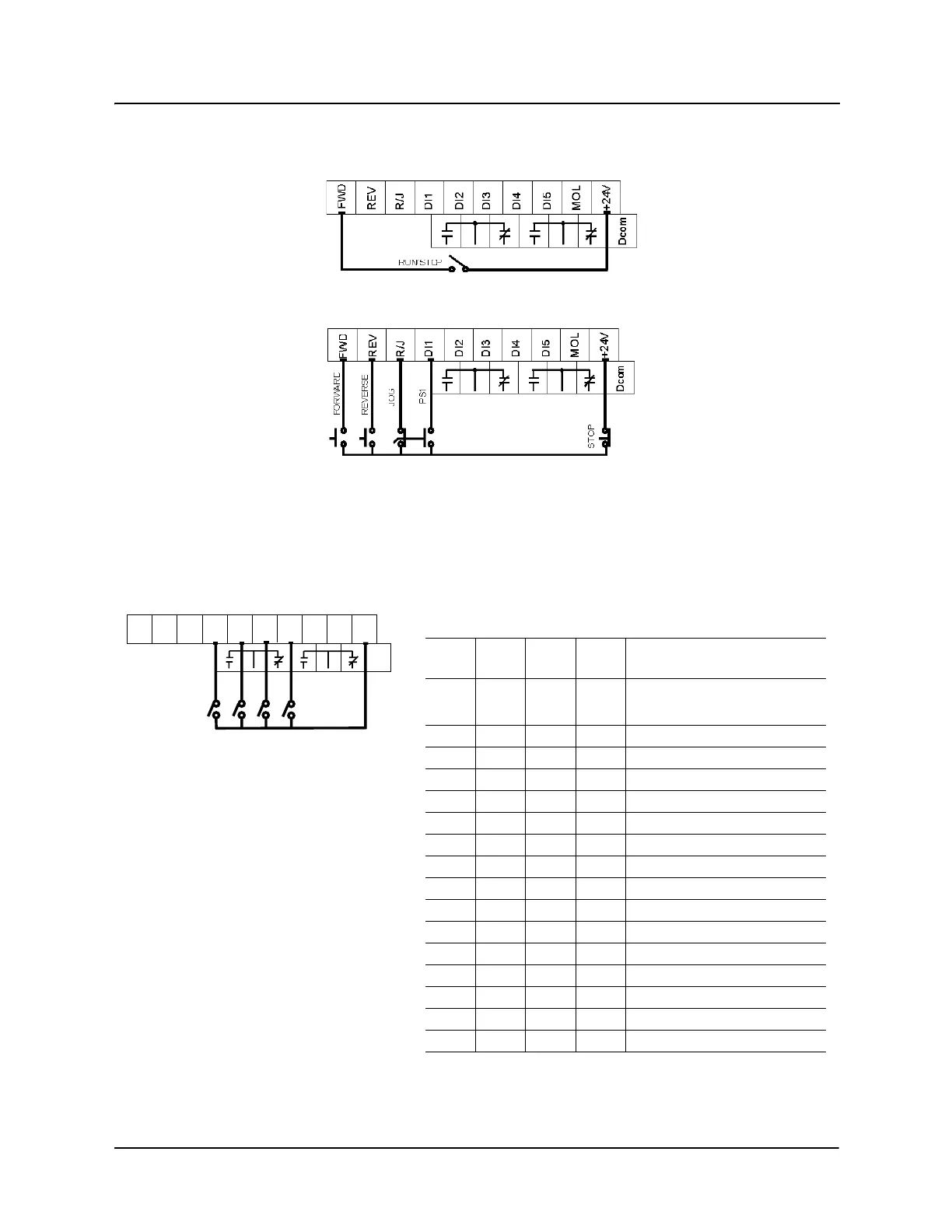

Figure 4-4: Connections for 2-wire and 3-wire Control
Typical connection for 2-wire control
Typical connection for 3-wire control
Table 4-9: Selection of Preset Speeds
PS4
(Bit 4)
PS3
(Bit 3)
PS2
(Bit 2)
PS1
(Bit 1) Speed Selected
0000
Normal reference speed as defined by
parameters 201 (Input Mode) and 204
(Ref Select)
0 0 0 1 Preset frequency F1 (parameter 303)
0 0 1 0 Preset frequency F2 (parameter 304)
0 0 1 1 Preset frequency F3 (parameter 305)
0 1 0 0 Preset frequency F4 (parameter 306)
0 1 0 1 Preset frequency F5 (parameter 307)
0 1 1 0 Preset frequency F6 (parameter 308)
0 1 1 1 Preset frequency F7 (parameter 310)
1 0 0 0 Preset frequency F8 (parameter 311)
1 0 0 1 Preset frequency F9 (parameter 312)
1 0 1 0 Preset frequency F10 (parameter 313)
1 0 1 1 Preset frequency F11 (parameter 314)
1 1 0 0 Preset frequency F12 (parameter 315)
1 1 0 1 Preset frequency F13 (parameter 316)
1 1 1 0 Preset frequency F14 (parameter 317)
1 1 1 1 Preset frequency F15 (parameter 318)
PS1 PS2 PS3
PS4
Dcom
+24V
MOL
DI5
DI4
DI3
DI2
DI1
R/J
REV
FWD
Figure 4-5: Connections for Preset Speeds
