8-4 LigaSure Vessel Sealing Generator Service Manual
Cover
Before you can inspect or replace any component, you must remove the cover.
The following procedure describes its removal and re-installation.
Tools Needed
• Phillips head screwdriver
Remove the Cover
1. Turn off the generator. Disconnect the power cord from the wall receptacle.
Disconnect any footswitches or handsets currently connected to the generator.
2. Remove three screws (M4 x .7 x 8) that secure the cover to the chassis.
3. Slide the cover toward the rear of the chassis. When the front of the cover
catches on the rear of the chassis, lift the cover slightly and continue to slide it
toward the rear of the chassis to compete the removal. Set the cover and
screws aside for reinstallation.

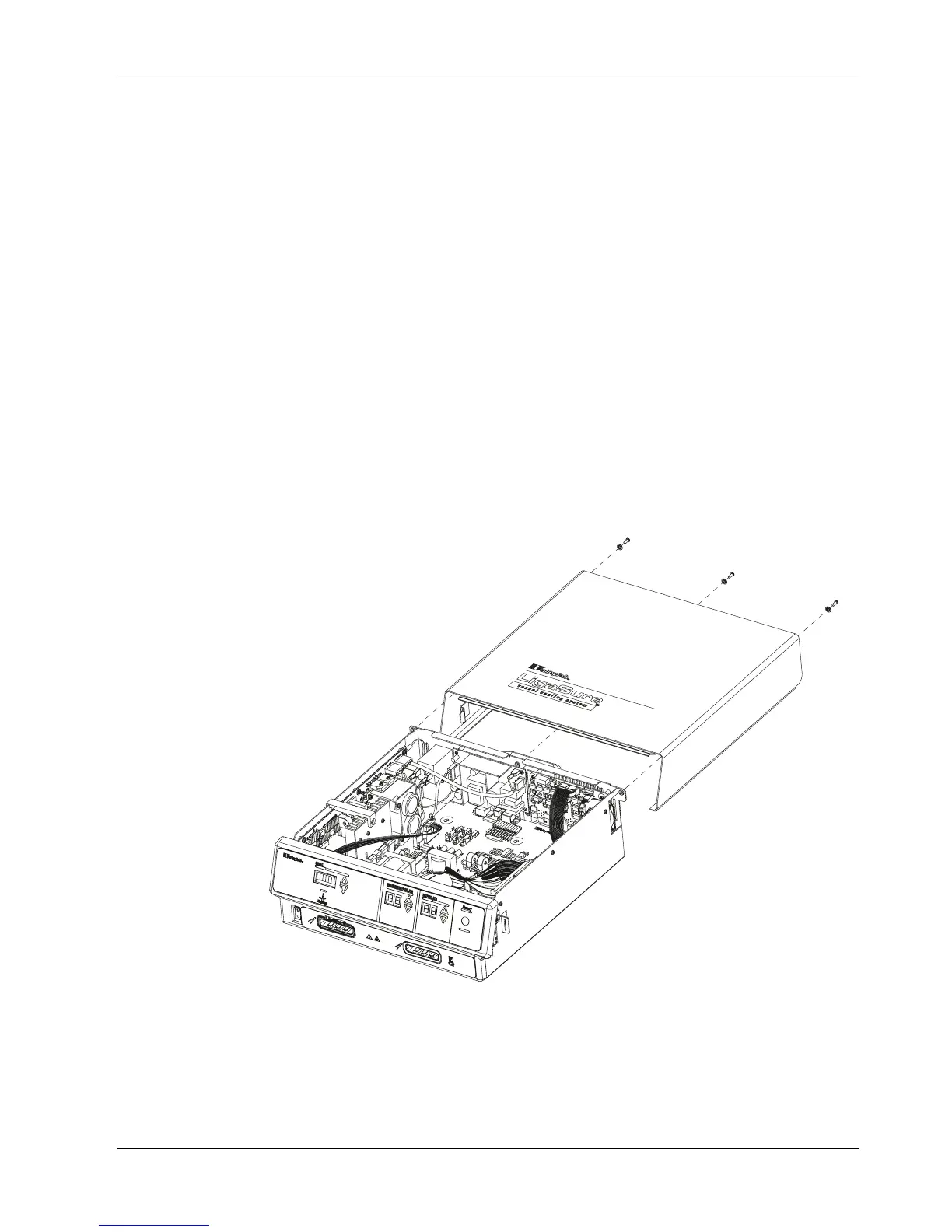

Fi g ure 8 - 2 .
Removing the cover
