Rear Panel
3-10 LigaSure Vessel Sealing Generator Service Manual
Option Panel
A removable plate on the rear panel covers a serial port, an RF (radio frequency)
activation port, and an expansion port. To review the technical specifications for
each port, refer to Chapter 4, Technical Specifications.

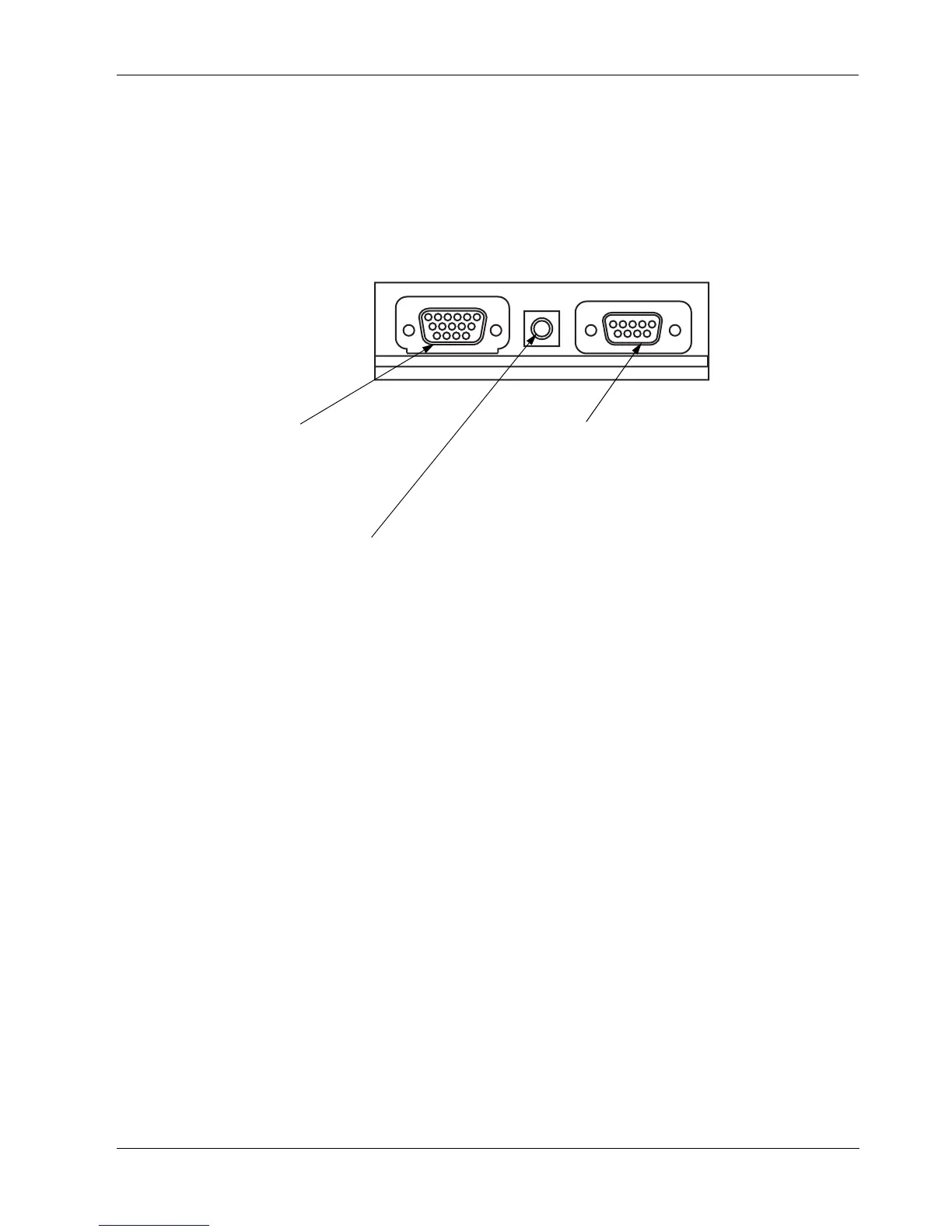

F i gu r e 3 -9.
The option panel
Expansion Port
Allows a connected device to
receive information about RF
output from the generator.
RF Activation Port
Allows a connected device to receive
information during RF activation of the
generator, which can then generate a response.
in the device.
Serial Port
Allows connecting a computer to the
generator to obtain information using the
RS232 communications protocol.
