Output Power vs. Impedance Graphs
Technical Specifications
LigaSure Vessel Sealing Generator Service Manual 4-17
Output Power vs. Impedance Graphs
The following graphs depict the RF output as applied to tissue impedance for
generator operative modes of macrobipolar and bipolar outputs.

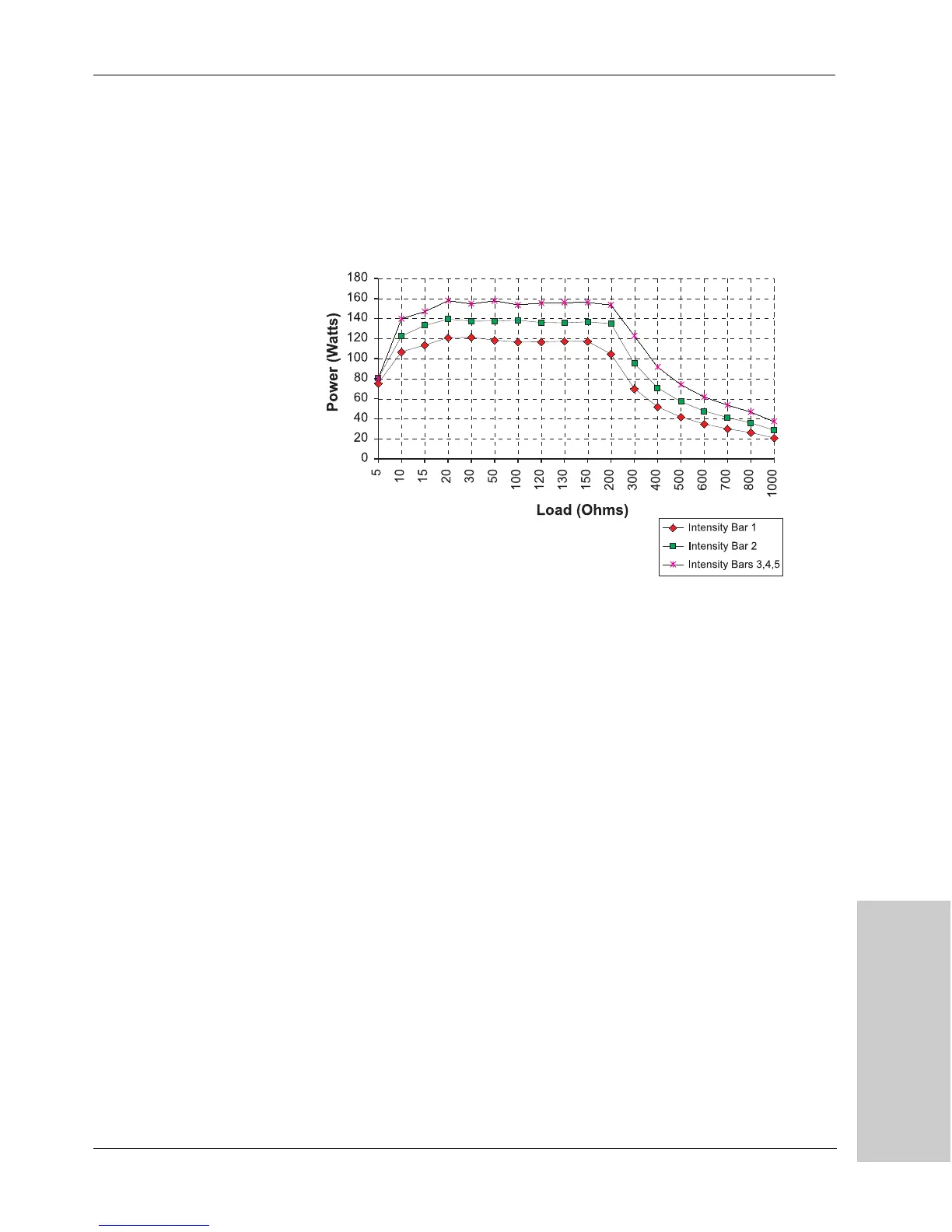

Figur e 4 - 3 .
Power (in watts) versus
impedance (in ohms) in the vessel
sealing mode
