Power Entry Module
Replacement Procedures
LigaSure Vessel Sealing Generator Service Manual 8-31

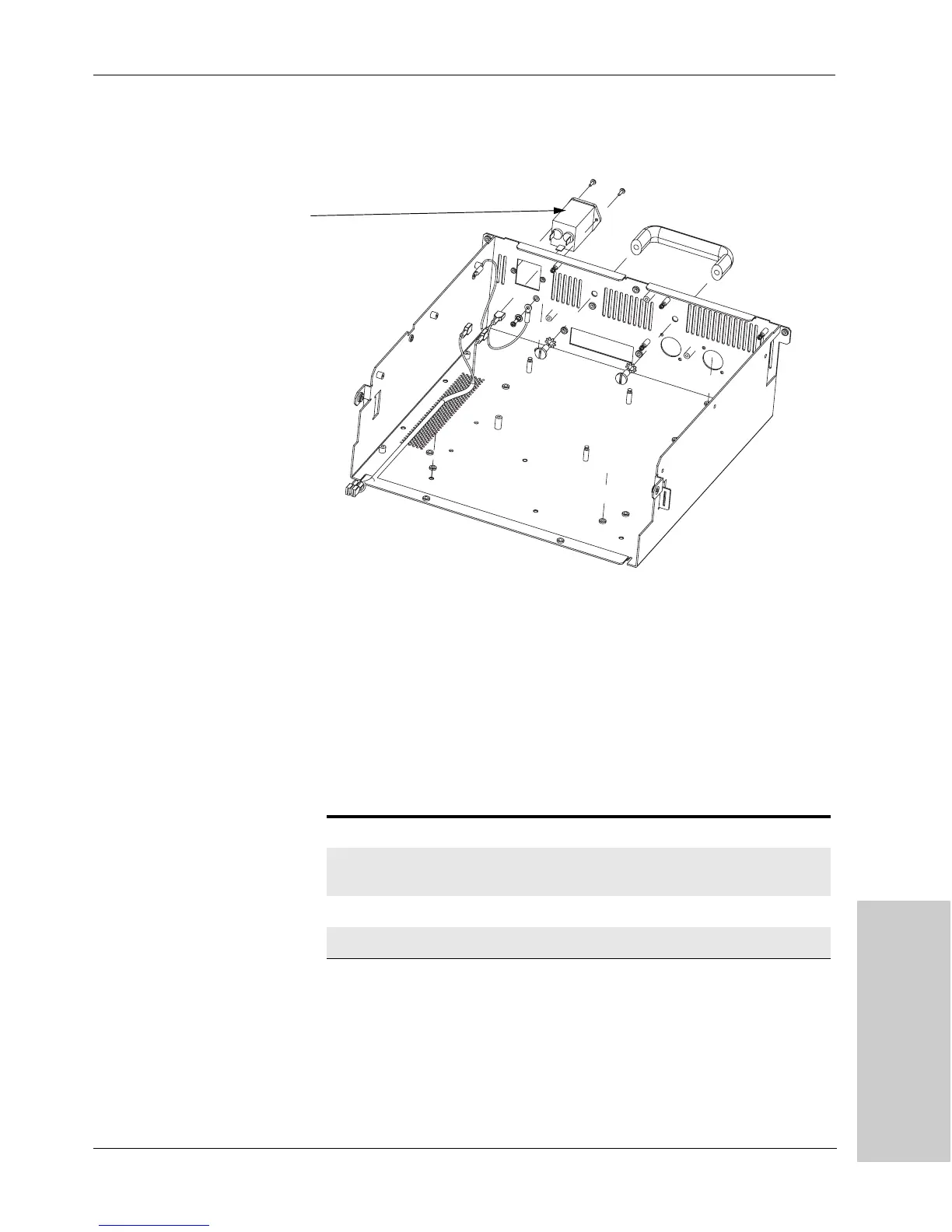

Fi g u re 8 - 1 7.
Removing the power entry module
from the rear of the chassis
Install the Power Entry Module
1. Position the new power entry module at the rear panel opening, then slide the
module into place.
2. Replace the screws (M3 x .5 x 8) that secure the module to the rear panel.
3. Reconnect the power entry module wires:
4. Install the cover. For further information, refer to Cover in this chapter.
5. Reconnect the power cord to the rear panel.
Power Entry
Module
Name Location Wires Colors
Chassis ground Center bottom of rear of
module
2 green/yellow
AC switch 2 Pin N, top of rear of module 1 blue
AC switch 2 Pin P, top of rear of module 1 brown
