Front Panel
Controls, Indicators,
and Receptacles
LigaSure Vessel Sealing Generator Service Manual 3-7
Bipolar Handset Receptacle (blue)
You can connect either a footswitching or handswitching bipolar/macrobipolar
instrument to this receptacle.

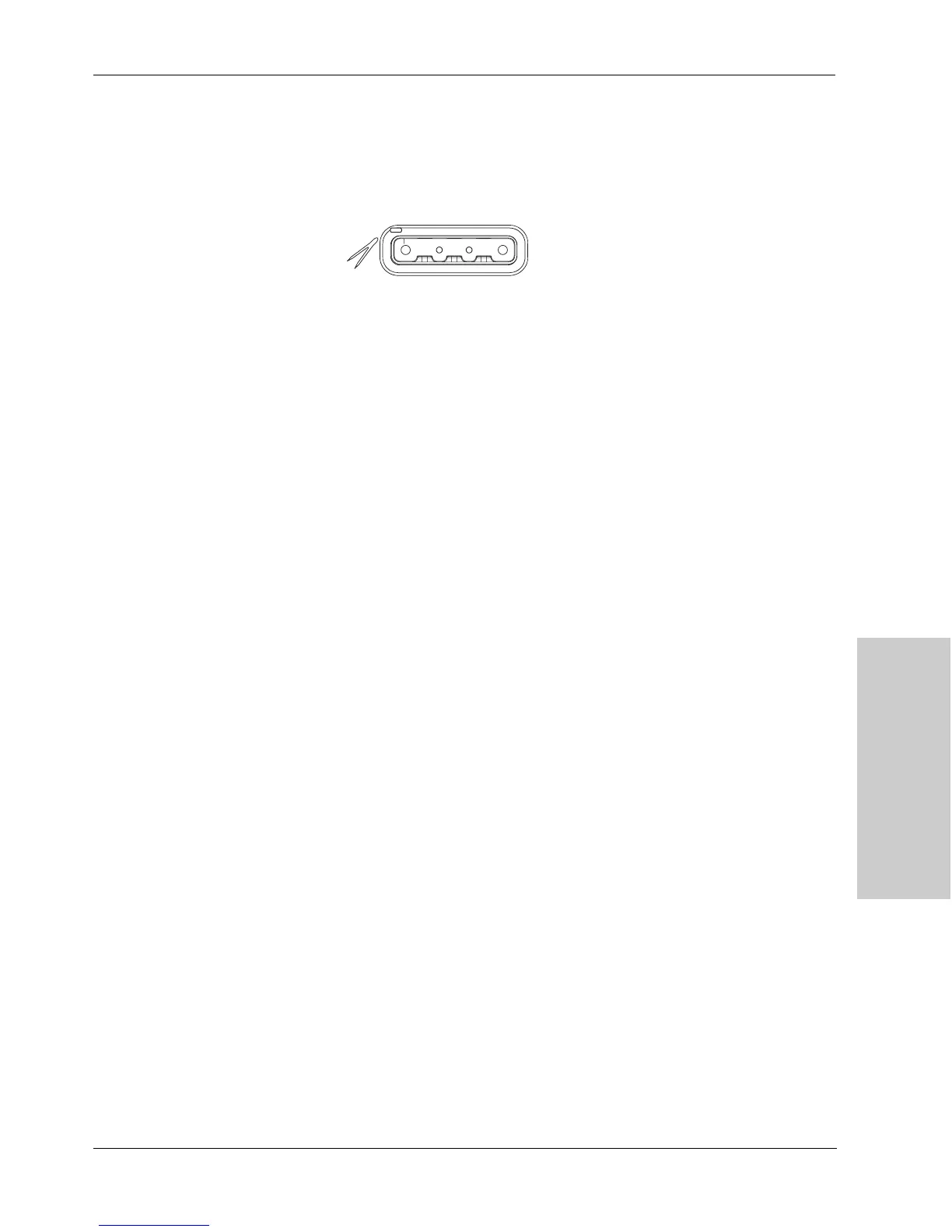

Figur e 3 - 5 .
Bipolar handset receptacle (blue)
Connect a footswitching instrument with a
two-pin connector.
or
Connect a handswitching instrument with a
three-pin connector.
This receptacle is designed to accept a Valleylab Smart Connector or a Valleylab
Smart Connector adapter. If the bipolar instrument you select does not have a
Smart Connector, you must use the Valleylab Smart Connector adapter (p/n
LS0500).
When the bipolar handset or Valleylab Smart Connector is correctly connected,
the bipolar receptacle indicator light illuminates green.
