Front Panel
3-6 LigaSure Vessel Sealing Generator Service Manual
Vessel Sealing Handset Receptacle (purple)
You can only connect a LigaSure vessel sealing instrument to this receptacle.

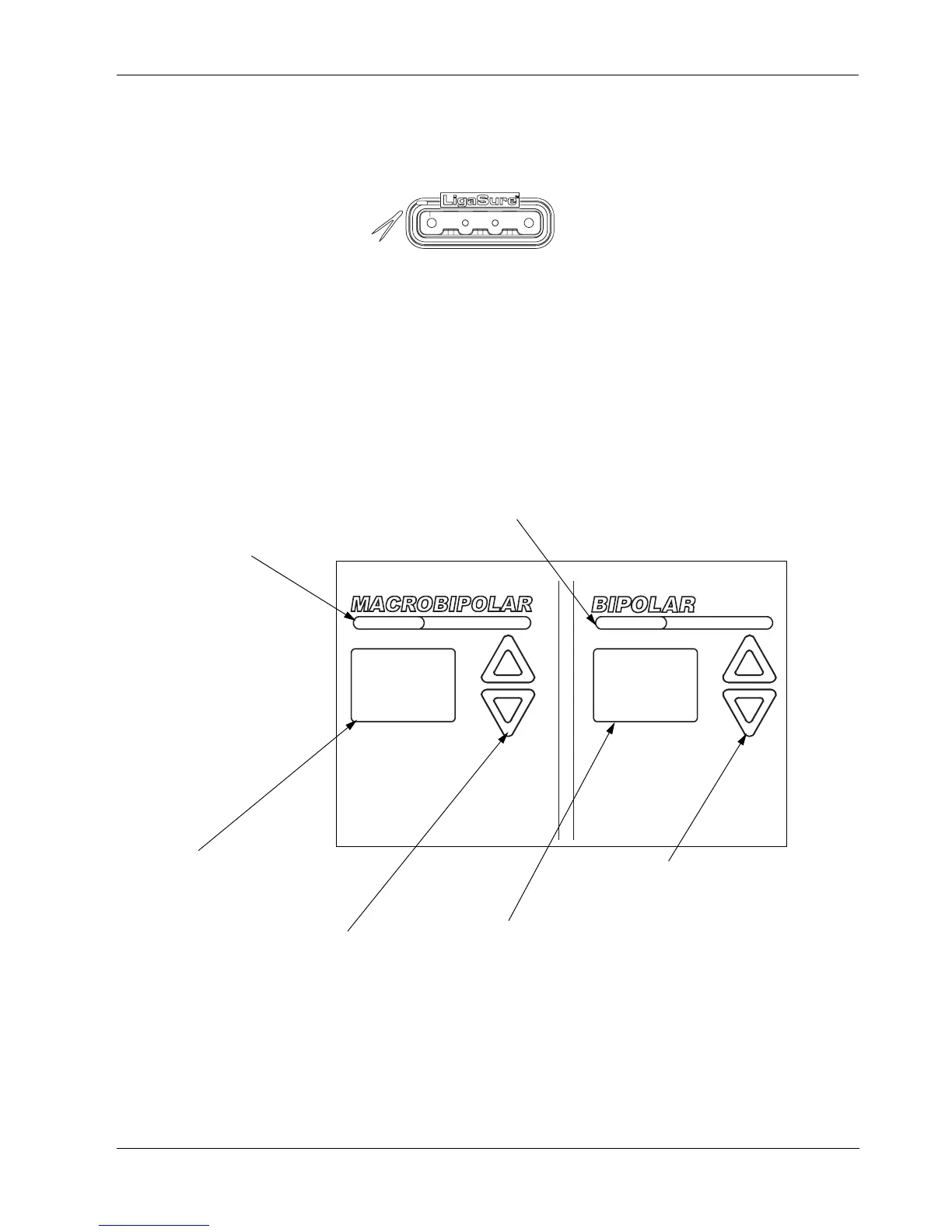

F i gu r e 3 -3.
Vessel sealing handset
receptacle (purple)
Connect a footswitching instrument with a
multi-pin connector.
This receptacle is designed to accept a
Valleylab Smart Connector.
When the handset is correctly connected, the vessel sealing receptacle indicator
illuminates green.
Bipolar Controls and Indicators
F i gu r e 3 -4.
Bipolar controls and indicators
Bipolar RF Activation Lamp
These lamps illuminate with handswitch
or footswitch activation.
Macrobipolar RF Activation Lamp
These lamps illuminate with
handswitch or footswitch. activation.
Bipolar Power Buttons
Press Δ to increase the power.
Press ∇ to decrease the power.
Bipolar Power Display
Shows the power setting in
Watts for the Bipolar mode.
Macrobipolar Power Buttons
Press Δ to increase the power.
Press ∇ to decrease the power.
Macrobipolar Power Display
Shows the power setting in Watts
for the Macrobipolar mode.
