Output Characteristics
Technical Specifications
LigaSure Vessel Sealing Generator Service Manual 4-15
Output Waveform

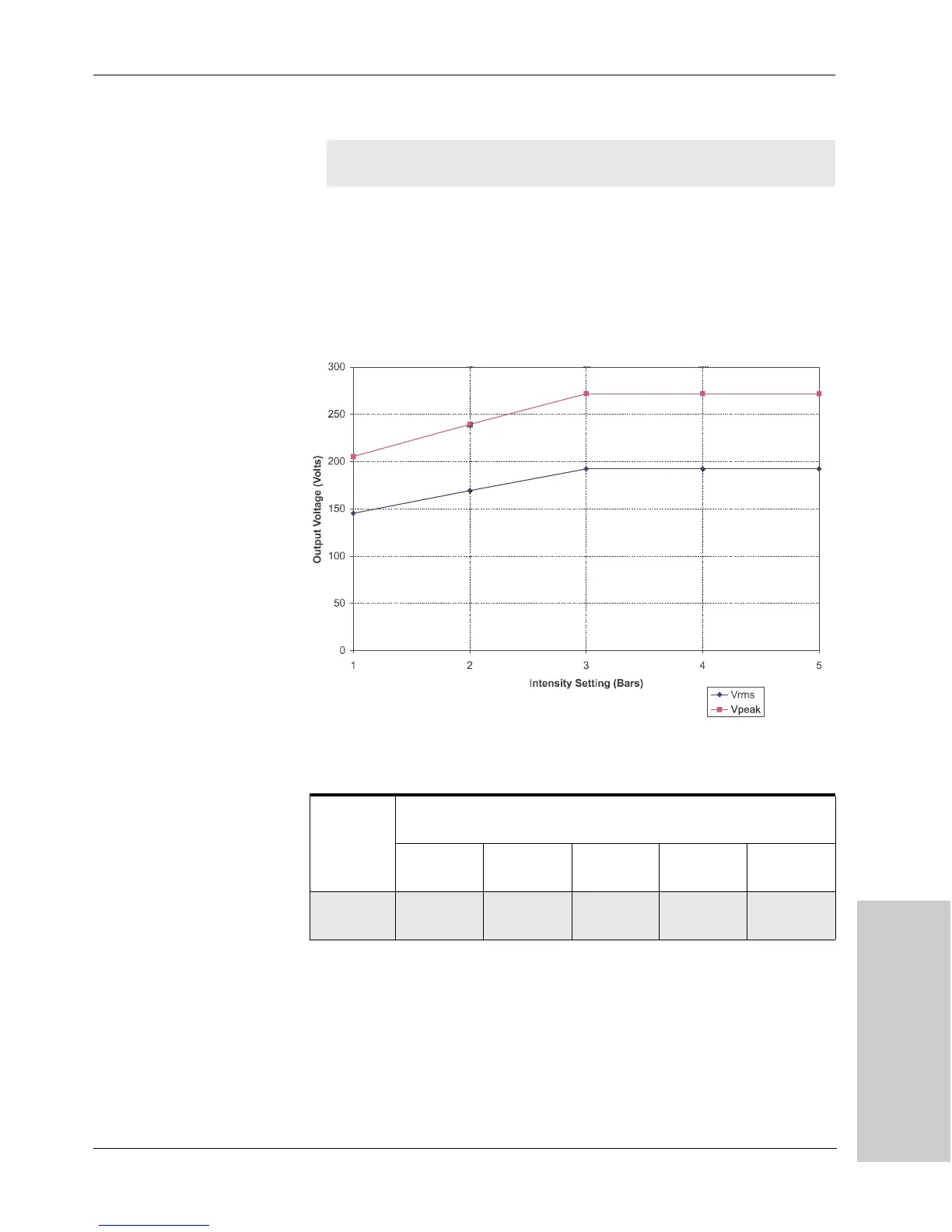

Figur e 4 - 1 .
Output voltage at specific intensity
settings in the vessel sealing
mode
Table 4-1
Open Circuit Output Volts Peak
(rms)
Macrobipolar/Bipolar 473 kHz sinusoid. 100% duty cycle.
Seal 473 kHz sinusoid, pulsed.
Mode Generator Intensity Setting — Bars
12345
Seal 51 (36) 82 (58) 115 (81) 139 (98) 151 (107)
