Rear Panel
Controls, Indicators,
and Receptacles
LigaSure Vessel Sealing Generator Service Manual 3-9
Vessel Sealing Footswitch Receptacle (purple)
Connect either the two-pedal vessel sealing footswitch or the single-pedal vessel
sealing footswitch to this receptacle.

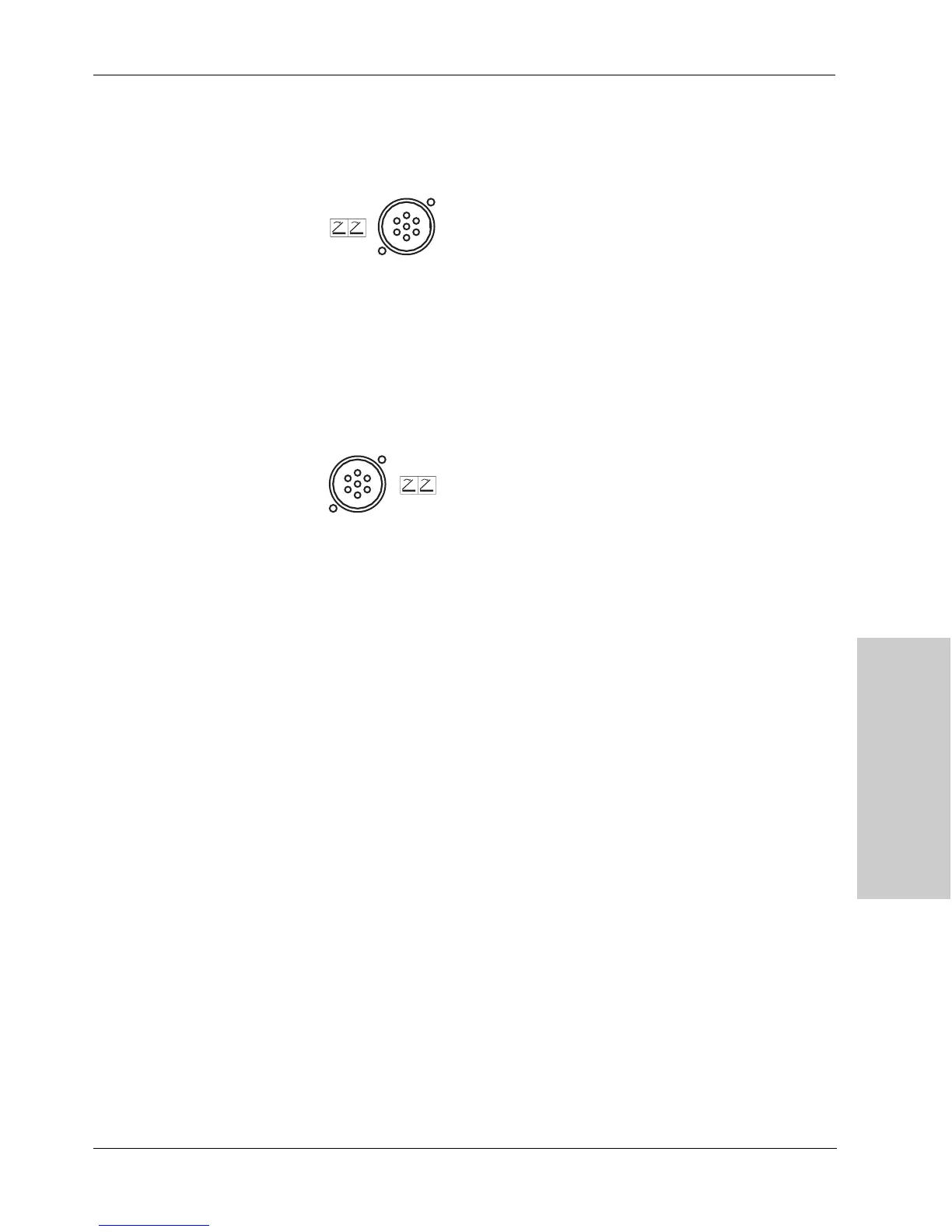

Figur e 3 - 7 .
Vessel sealing footswitch
receptacle (purple)
Two Pedal Footswitch
The connected footswitch activates either vessel sealing or
bipolar output for the LigaSure instrument that is connected to
the Vessel Sealing Handset receptacle on the front panel.
Single Pedal Footswitch
The connected footswitch activates only the vessel sealing
output for the LigaSure instrument that is connected to the
Vessel Sealing Handset receptacle on the front panel
Bipolar Footswitch Receptacle (blue)
Figur e 3 - 8 .
Bipolar footswitch receptacle
(blue)
Connect the bipolar/macrobipolar footswitch when you
connect a bipolar footswitching instrument to the generator.
Connect the two-pedal bipolar footswitch to this receptacle.
The connected footswitch activates bipolar or macrobipolar output for the bipolar
instrument that is connected to the Bipolar handset receptacle on the front panel.
