Front Panel
Controls, Indicators,
and Receptacles
LigaSure Vessel Sealing Generator Service Manual 3-5
Vessel Sealing Controls and Indicators

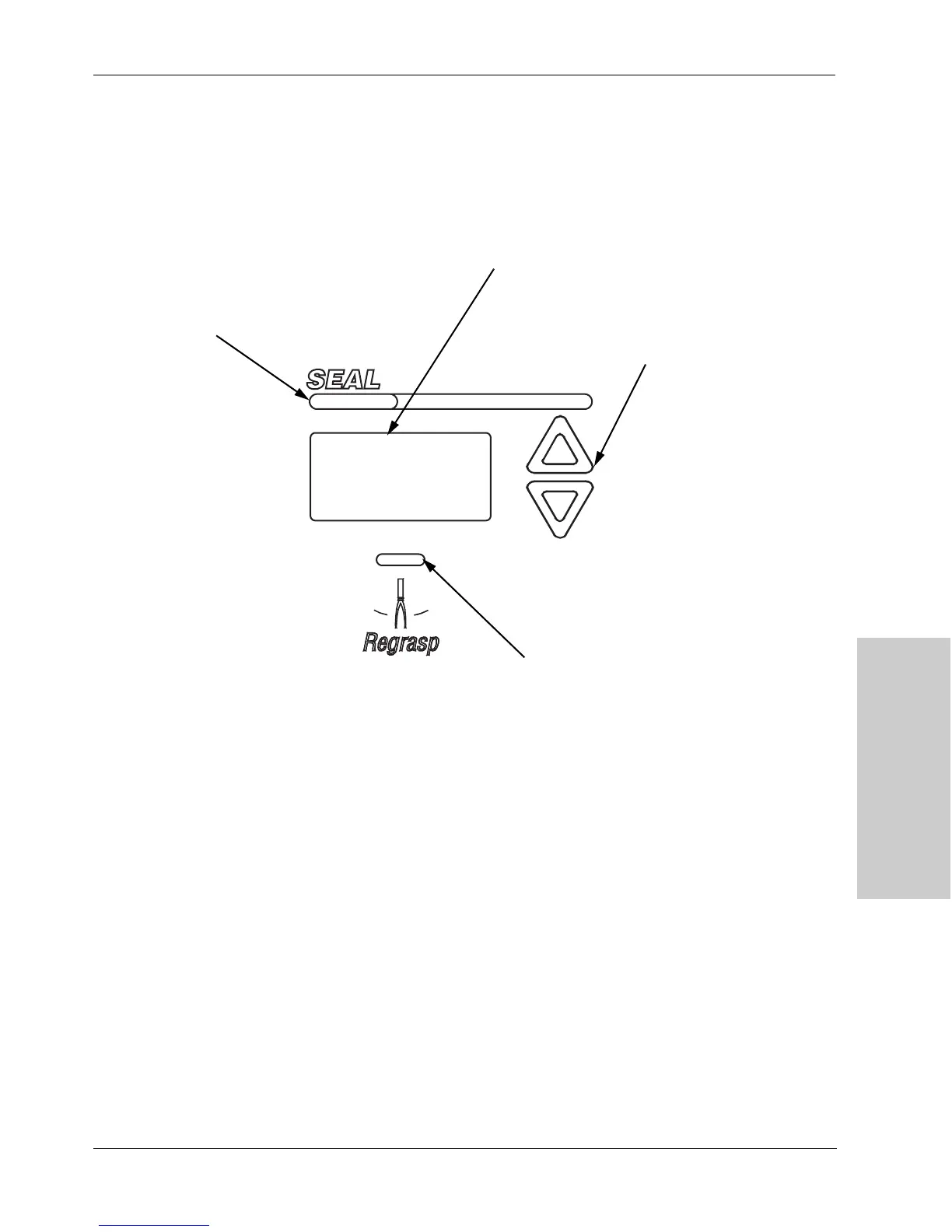

Figur e 3 - 2 .
Vessel sealing intensity control,
activation indicator, and regrasp
indicator
Seal RF Activation Lamp
Illuminates with handswitch or
footswitch activation.
Vessel Sealing Intensity Display
A bar graph indicates the relative
seal intensity setting.
Vessel Sealing Intensity Buttons
Press Δ to increase the intensity.
Press ∇ to decrease the intensity.
Regrasp Indicator
Illuminates if the tissue is not sealed.
This may be due to:
• Tissue not responding to RF energy
• Tissue impedance is out of range
• Seal cycle was interrupted before the cycle
was complete
• Maximum seal cycle time has been reached
