952
Model Code Page
61. Steering system
8. 11. 1990
6000--8750 611 4

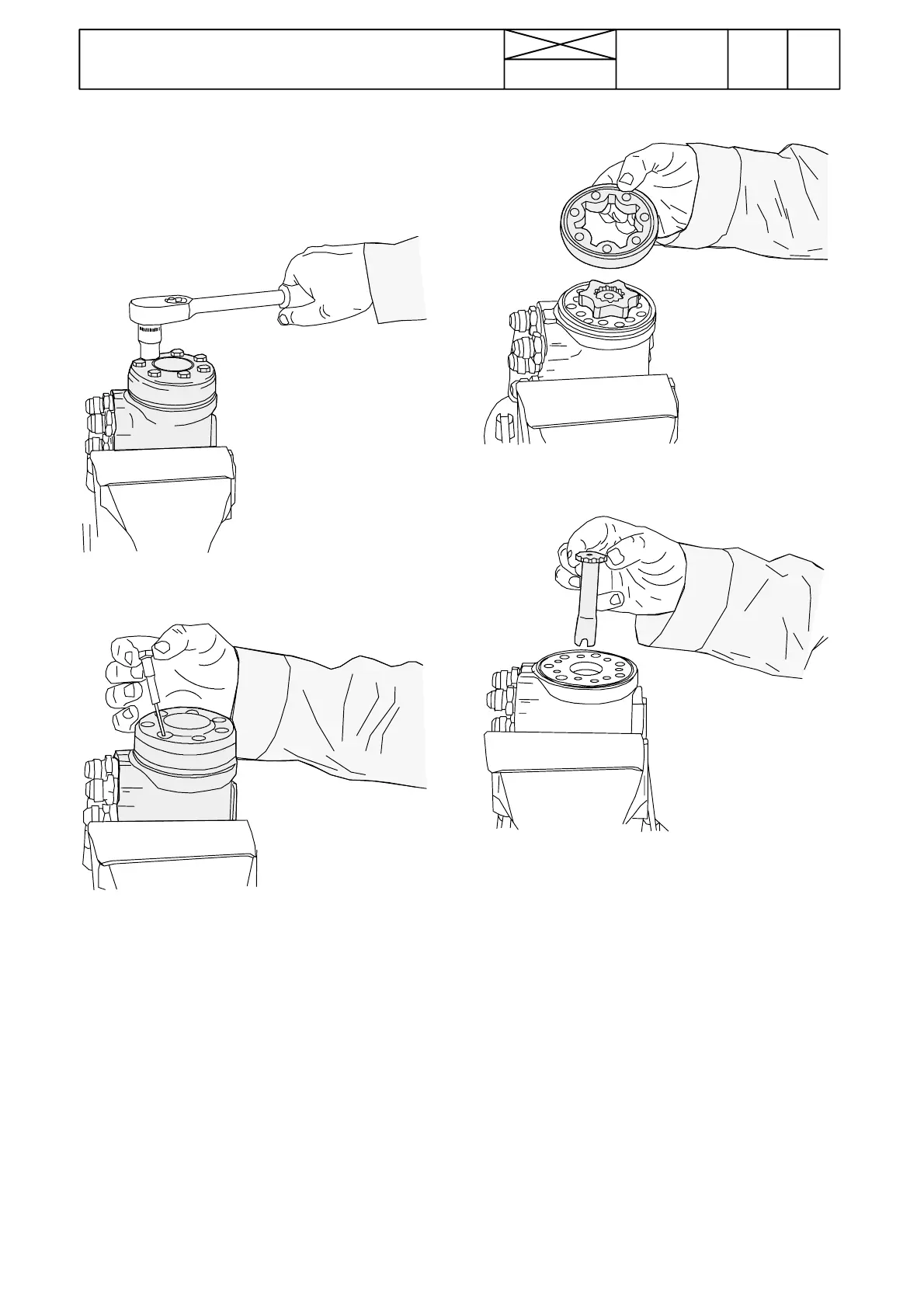

F. Changing seals in steering valve
1. Remove the steering valve (see instr. D).
2. Secure the steering valve in a vice with the cover upwards.
Mark the position of the cover, distributor plate and rotor ring
foreasierfitting.
3. Unscrew the cover fixing bolts.
Note! Remember where the bolt with the locating pin was
fitted. If the valve is turned upside down, three valve balls and
two pins will fall out.
4. Remove the cover, rotor ring and the rotor and the washer
inside the rotor.
5. Remove the rotor shaft and the distributor plate. Check/
change o---rings between the parts.
6. Push up the valve slide and pull them out of the valve hous-
ing. Remove the thrust bearing from the slide bore.
