CABIN HEATER, FITTING INSTRUCTION
(2)
Cab heater socket 32634800...............
(Note! requires an engine heater). The mounting
kit includes the socket, wires and a branch con-
nector (to engine heater supply wire) with necess-
ary fitting details.
Cab heater 32630300......................
The heater has two output levels, 1100W / 550W
FITTING:
---RemovetheLHsideenginesideplate.

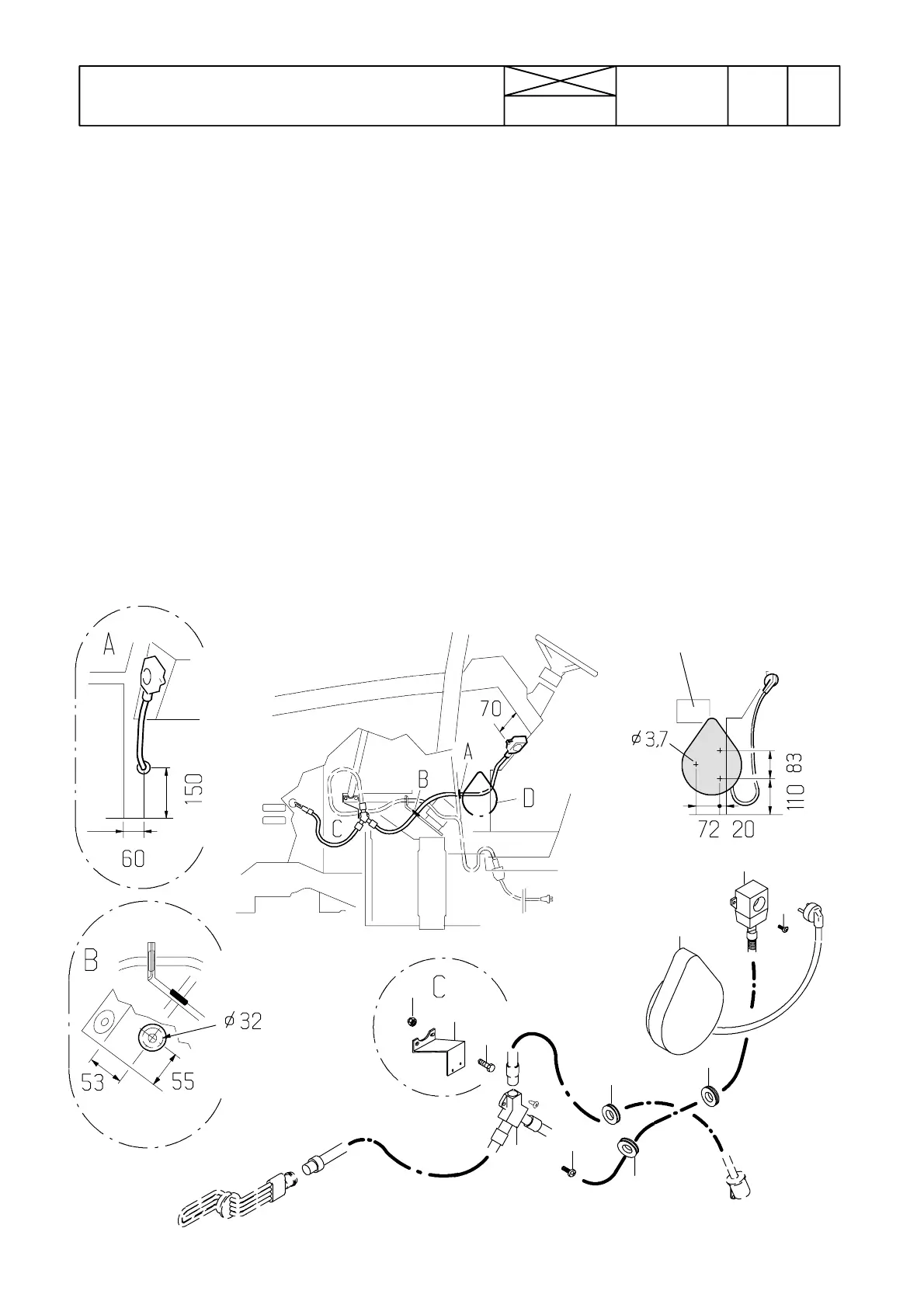

--- M a k e l e a d --- in h ol e s a c c o r d i n g t o t h e p ic t ur e
through the intermediate frame protective shield
and through the cab front wall.
Fit bracket 5 into position in holes on the battery
shelf and fasten the branch connector 1 onto the
bracket. Fasten socket 2 under the instrument
panel and pass the wire to the branch connector.
Disconnect the supply wire from the engine heater,
and connect it to the branch connector. Connect
thewirefromtheconnectortotheengineheater.
--- Drill for the cab heater 8 fastening holes and fit the
heater.
1
2
3
4
4
4
6
5
3
7
8
