Valtra 6850 - Cabin Heater

1128
Model Code Page
80. Cab and shields
8. 11. 1990
6000--8750 810 8

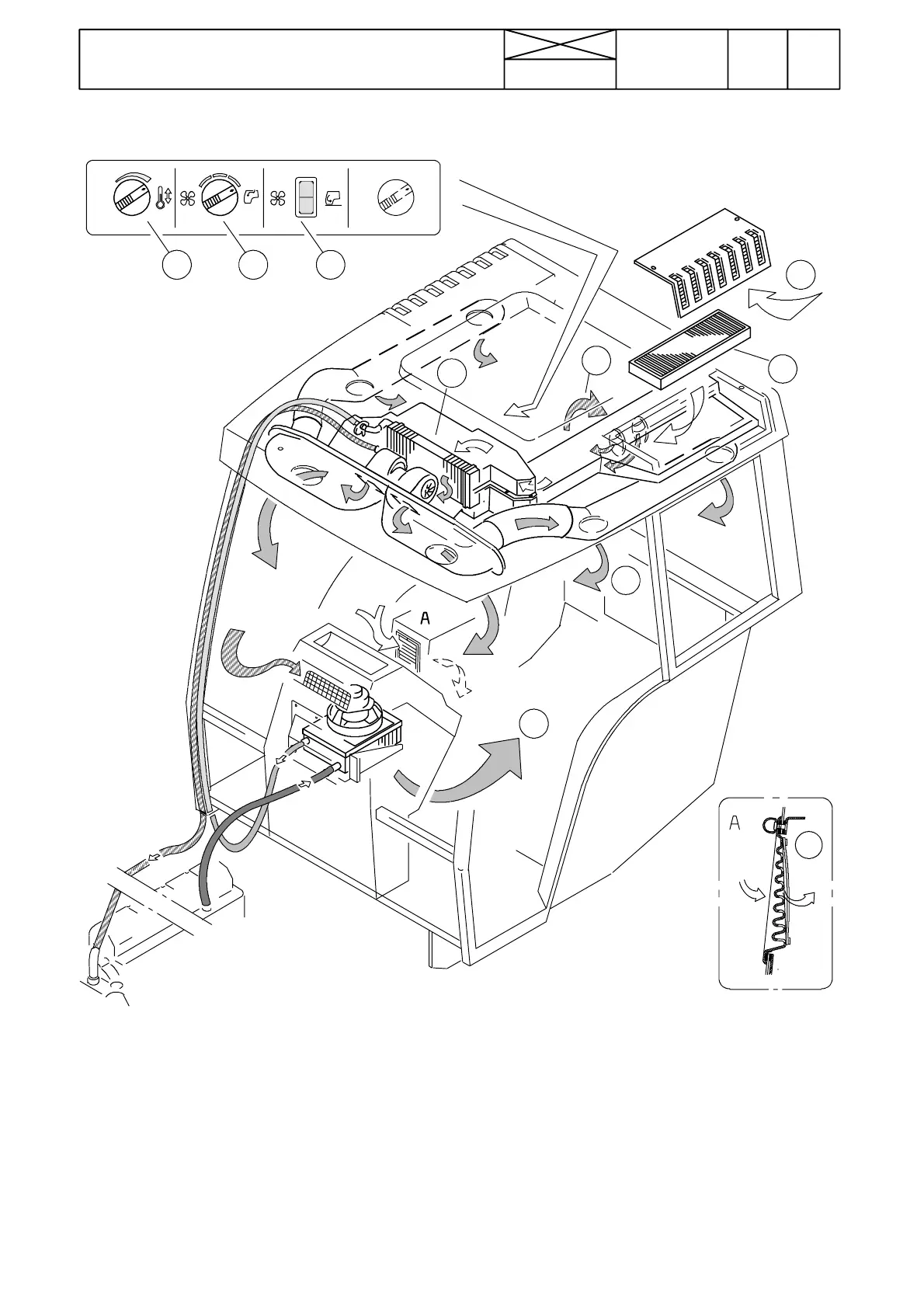

Cabin heater
12
0
12
3
1
2
1
8 9 10
4
2
3
5
6
7
1. Air intake
2. Air filter (clean at intervals of 200 running hours)
3. Heater radiator
4. Re--- circulation of air (can be closed when needed)
5. Warm air into the cab (nozzles can be turned 360˚)
6. Warm air for the lower part of the cab
7. Overpressure valve
8. Heating and ventilation control
9. Roof heater fan (3 ---speeds)
10. Floor heater fan
Note! The heater unit components on the roof are accessi ble
after removing the upper roof plate. Detach the roof plate as
follows:
--- open the ro of hatch and unscrew the screws on the edge
of the hatch
--- unscrew the screws on the rear and front edge of the roof
(6 pcs)
--- unscrew the front gutter plate screws
--- remove the upper roof plate
Note! When fitting the roof plate, do not tighten the screwstoo
hard because the roof plate material (glass fibre) could be
damaged.
