Valtra 6850 - Radar Fastening Parts; Electric Connections

62
69
71
70
65
64
67
66
63
68
148
Model Code Page
31. Tractor electrical system
1. 6. 1999
6000--8950 310 4D

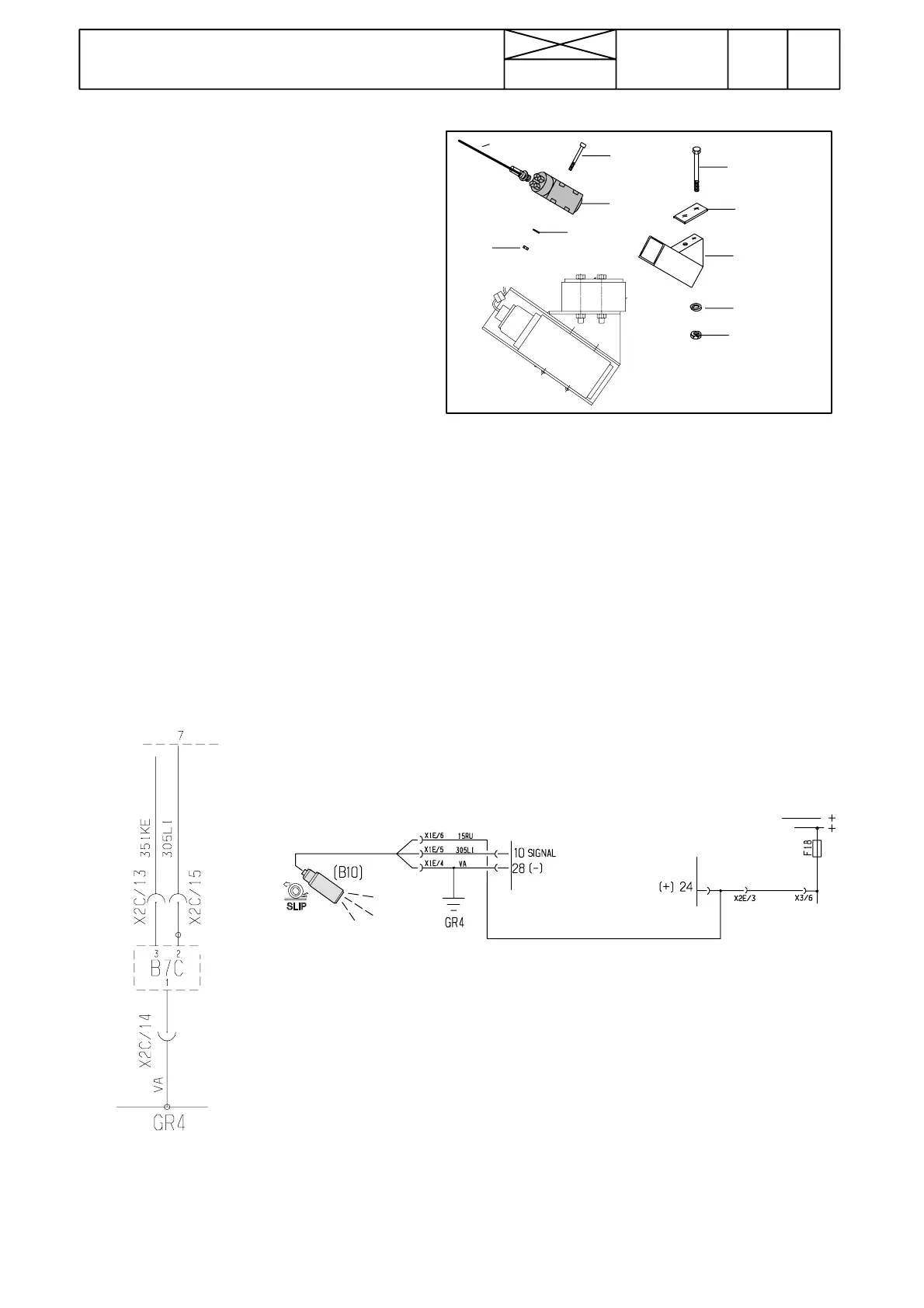

Radar fastening parts
(e.g. ACD ---power lift)
(these parts can be ordered from the Spare Part Center):
62=radar=31702100
63=bracket=32912800
64=plate=32891600
65=bolt=HA8351 (2 pcs)
66=washer=JD0412 (2 pcs)
67=nut=JB8906 (2 pcs)
68=wire=33187500
69=bolt=HC8514 (4 pcs)
70=washer=JD0406 (4 pcs)
71=nut=JB8903 (4 pcs)
The radar bracket is fastened on the RH side door step attach-
ment on the intermediate frame. If the tractor is equipped with
pressure air systems, the radar bracket is fastened on the LH
side.
Electric connections:
The radar is connecetd with cable 33187500 to the tractor
electric system. Figures below show connections in AC IV and
ACD power lift.
AC IV
X2C: Sensor connector in the lever console
B7C: Radar
GR 4: Earth point in the lever console rear part
A C D --- p o w e r l i f t
X1E: connector on the plate in the lever console
(HiTech) or a separate connector in the console
(not HiTech)
GR4: Earth point in the rear part of the lever con-
sole
B10: radar
