Valtra 6850 - Hydraulic Diagram

1208
Model Code Page
90. Hydraulic system
15. 5. 1993
6000--8750 910 7A
Ø1.5
VALVE FOR HYDRAULIC MOTOR (OPT.) K IC K --- OU T V A LVE (OP T I O N )
FLOW REGULATOR (OPTION)
19 MPA
20 MPA
20 MPA
14 MPA
REAR STEERING (OPTION)
19. MPA 23 MPA
i=1,32
20 MPa
BREAK VALVE (OPTION)
Hydraulic diagram,
660071---

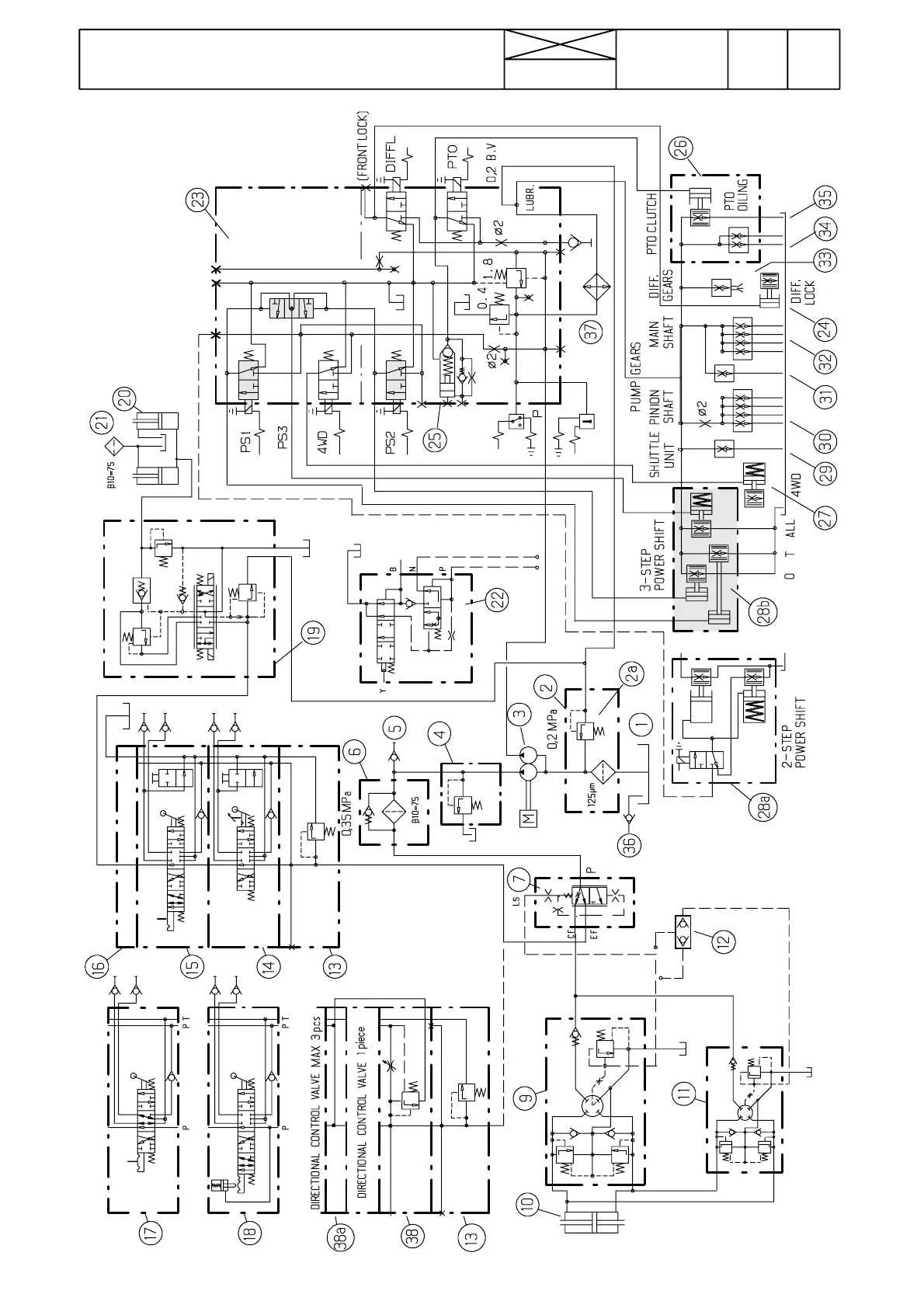

Figure 1A. Hydraulic diagram
