61. Steering system
1. 1. 1995
6000--8750 613 3
8. 11. 1990

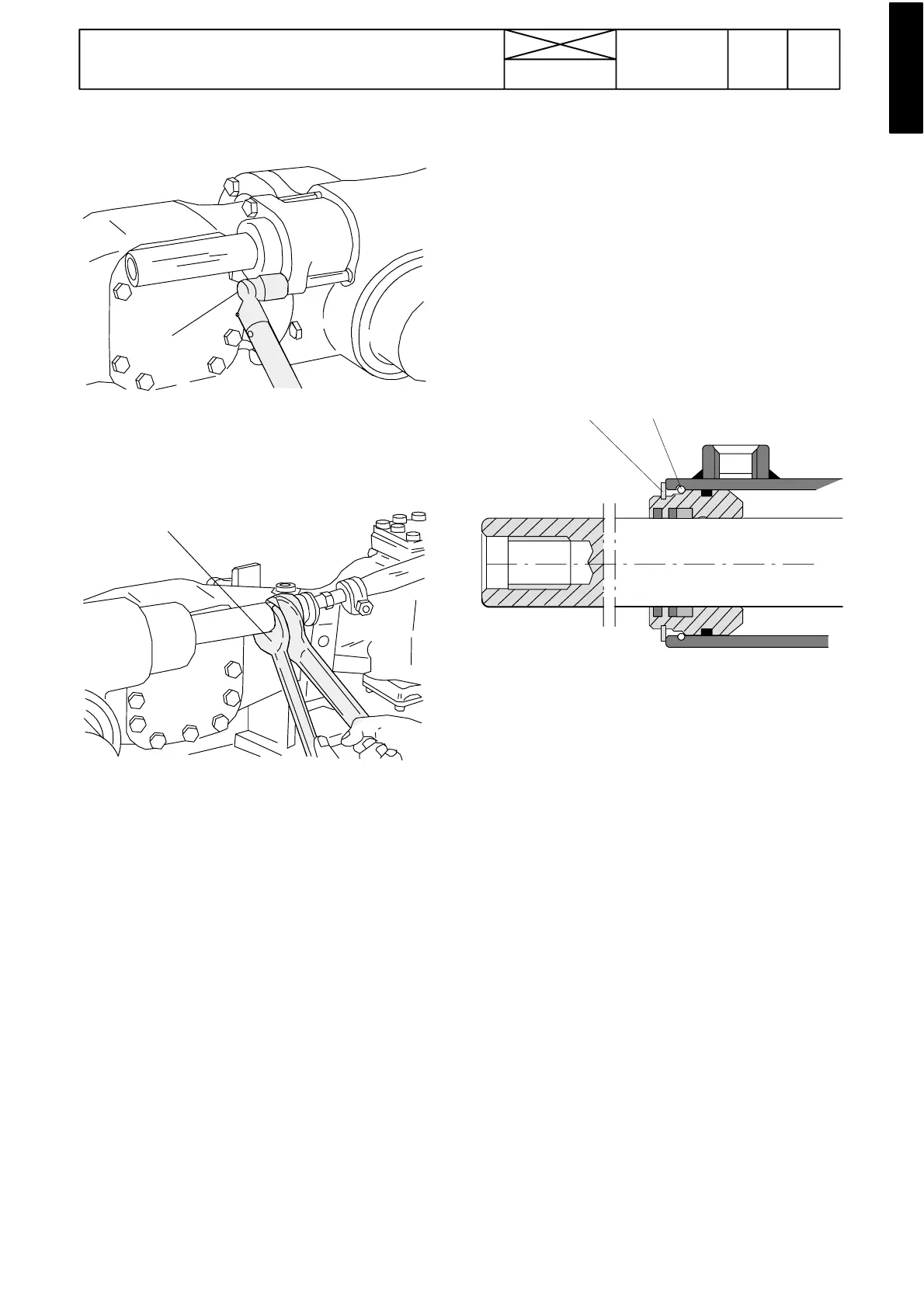

D. Fitting steering cylinder
190 Nm
1. Push the steering cylinder into the axle housing. Tighten
cylinder attaching screws to 190 Nm.
290 Nm
2. Connect the piston rod to the tie rods. Tighten the joint to
290 Nm. Apply locking fluid Loctite 586 to the threads.
3. Connect the oil hoses to the steering cylinder.
4. Start the engine and check that the steering system func-
tions properly. Check for possible leakage. Chec k oil level in
hydraulic oil tank.
2. Later steering cylinder
The steering cylinder on Sige front axles has been changed
from axle number 1673/94 incl. and 0306/94--- incl. (Hi---
Lock) or 086/94--- incl. (ind. front axle)
The new cylinder is as a complete unit exchangeable with the
earlier one. Order number of the new steering cylinder is
31797410.
A. Changing seals
1.Removingthecylinder,seeinstr.1A on page 613/1.
1
2
2. Remove the locking ring (1). Push the end piece a little
inwards and remove the securing ring (2).
3. Pull the piston rod/piston out of the cylinder with a rapid
movement at which time also the end piece releases.
4. Remove all damaged seals and fit new ones.
Note! A seal ring kit no 31797510 is available.
Lubricate all seals with oil before assembling the cylinder.
5. Assemble the cylinder in the reverse order. Fitting the cylin-
der into the fro nt axle, see instr. D on this page 613/ 3.
