67. Powered front axle Carraro
1. 10. 1999
8450--8950 674 9
55. Lock the bevel pinion shaft nut with the locking washer.
56. Fit the o---ring (if any), grease and fit the cassette seal
with a suitable sleeve. Do not damage the seal on the shaft
splines.

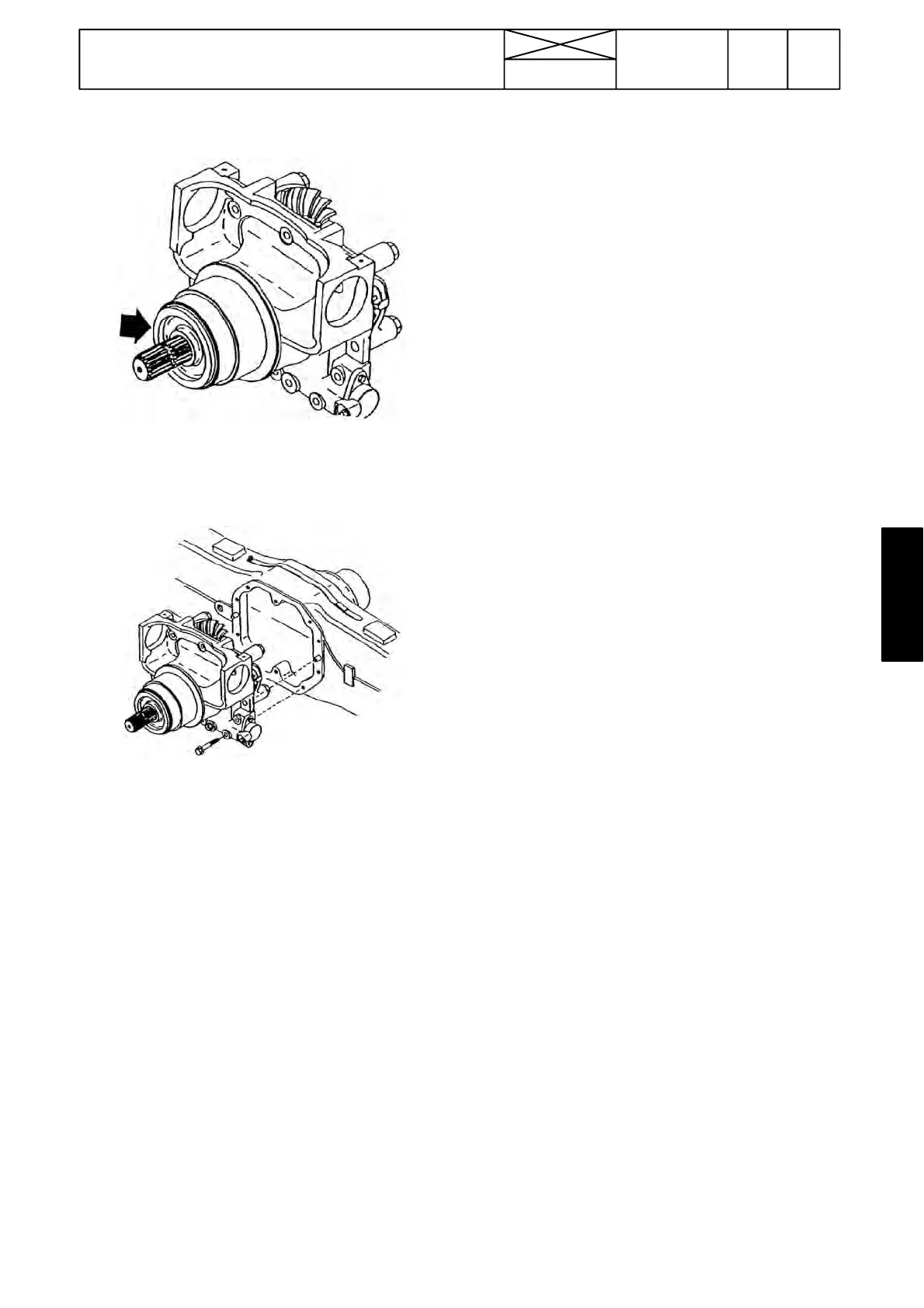

57. Clean the mating surfaces on the axle housi ng and on
the differential bracket. Apply Loctite 510 or alt. Loctite 518
and push the differential into the axle housing. There are
dowels in the joint.
58. Tighten progressively the bracket fixing bolts to 170
Nm. Reconnect the diff. lock hose.
59. Fit the bevel pinion shaft drive flange (fixed with two
bolts). Connect the propeller shaft front flange joint (70
Nm).
60. Fit the steering ram, see instr. A on page 675/1.
61. Fit the bottom guard.
62. Fasten the hubs/drive shafts, see instr. 1C stages
12---16 on page 672/ 5.
63. Add oil into the axle housing (6litres. 80W/90 GL---5
(LS),e.g.ValtraAxle).
64. Test---run the tractor and check the function of the front
axle and differential lock. Check for leaks and test the steer-
ing system.
