1205
Model Code Page
90. Hydraulic system
6000--8750 910 5
1. 11. 1998
1. 8. 1998

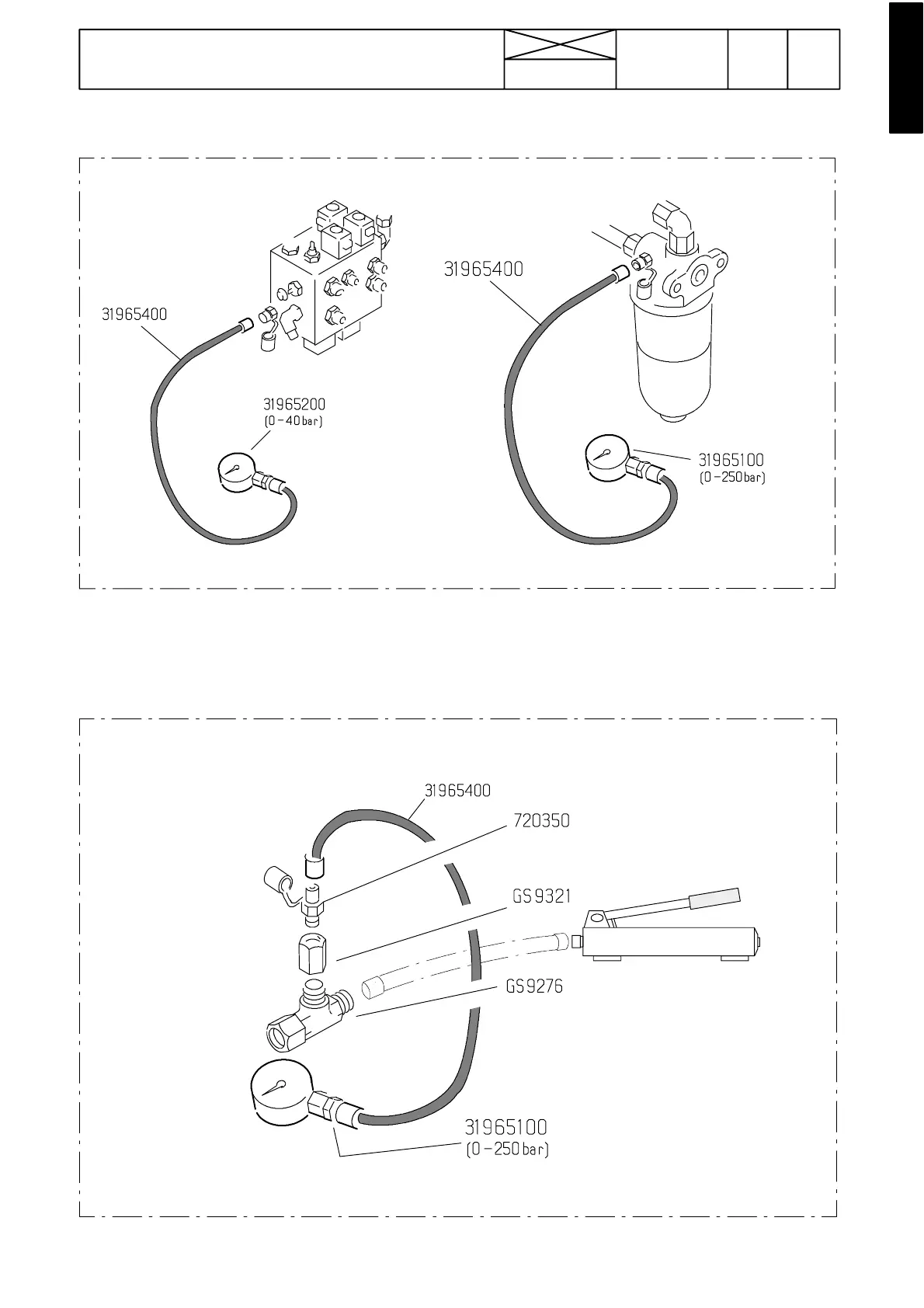

Pressure measuring equipment
1. Equipment for measuring pressure in low pressure circuit (2,1---2,3 MPa (---660070) or 1,8---1,9 MPa (660071---). On HiTech
tractors the pressure test point is placed on the outer face of the block, see picture on page 440/24.
2. Equipment for measuring pressure in high pressure circuit (19, 0 ---19,8 MPa). Pressure measuring kit 31965000 includes the
above shown equipment, which can also be ordered separately.
Measuring opening pressure of hydraulic lift shock valve
1. Measuring opening pressure of the hydraulic lift shock valve (opening pressure 20 MPa).
Note! T---connector GS9276 has thread 3/4---16 for connecting a hand pump. The kit 31965000 does not include the hand pump.
