1259
Model
Code Page
FITTING INSTRUCTION 21.01.1997 6000---8750 99 1
LIFTING CYLINDER PROTECTIVE COVERING,
(1)
10.06.1996
Lifting cyl. covering (6000---6400,8000) 33287400..
Lifting cyl. covering
(6600---8750) 33275600.....
Protective covering is intended to protect the pis-
ton rod and its seals in very difficult conditions
(e.g. mud fields etc).

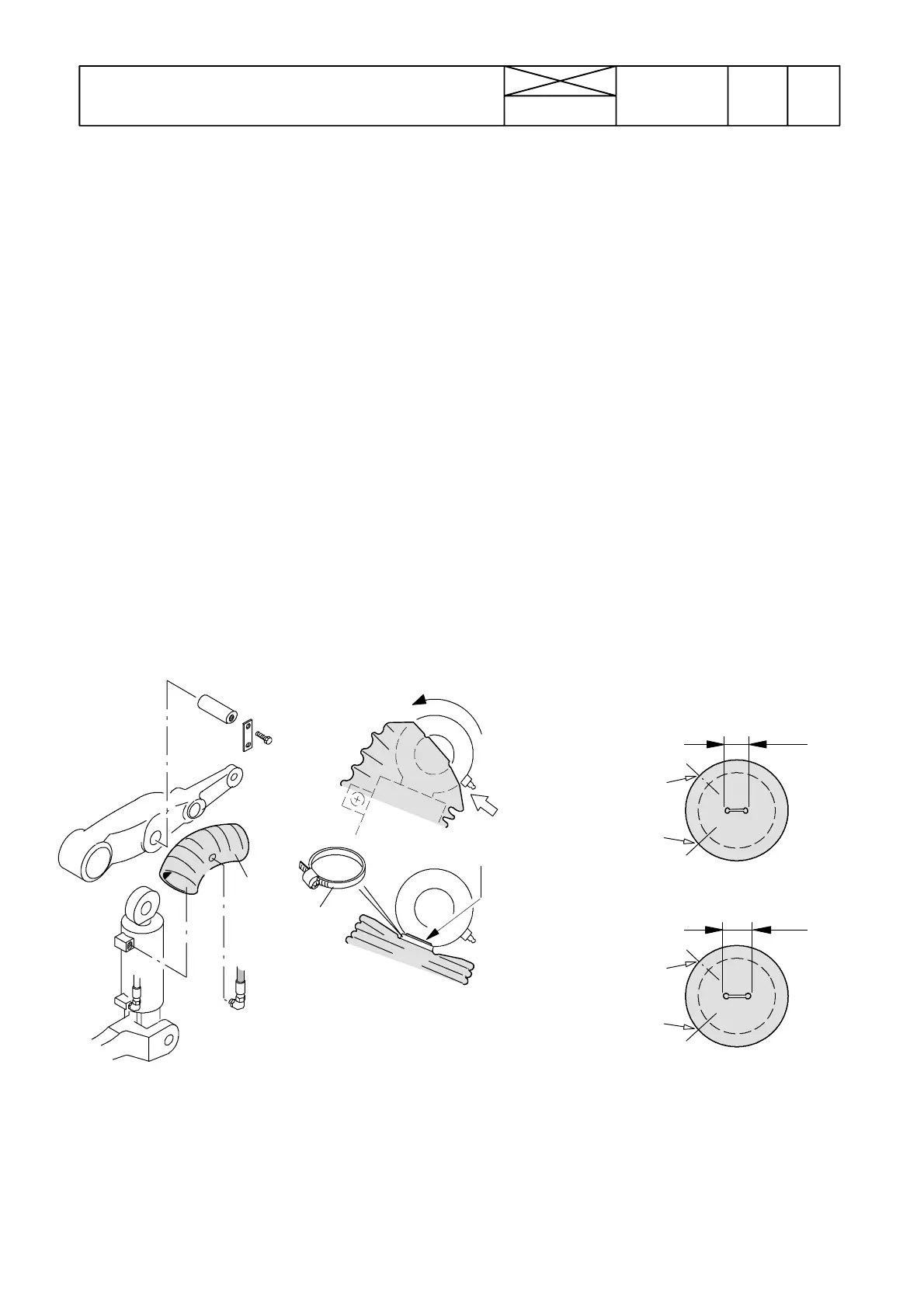

FITTING:
--- Lower the lower links to the lowest position.
Release the cylinder upper end from the lifting
arm. Disconnect the breather hose.
--- Place the covering round the piston rod so that
thegreasenipplefitsattheholeattheendofthe
covering.
Hold the lid of the protective covering (so that
the glue joint between the lid and the lower part
not rend) and rotate carefully the covering
round the piston rod end.
NOTE! Do not use any sliding compound (other-
wise the covering does not stay later in its
place).
--- Fasten the covering with a clip. Refit the
breather hose
Tighten, if needed, the upper end of the protec-
tive covering with silicone.
2
Hole location:
33287500 LH
33295400 RH
SILICONE
Hole location:
33275300, LH
33275400, RH
24mm
34mm
D30
D40
1
1 33287400 Syl. suojat Skydd kmpl. Protective covering Schutze kompl. D30, 6000---6400,8000
1 33275600 Syl. suojat Skydd kmpl. Protective covering Schutze kompl. D40, 6600---8750
1 1 33287500 .Suoja Skydd Shield Schutz LH, 6000---6400,8000
1 33295400 .Suoja Skydd Cover Schutz RH, 6000---6400,8000
1 33275300 .Suoja Skydd Shield Schutz LH, 6600---8750
1 33275400 .Suoja Skydd Cover Schutz RH, 6600---8750
2 2 SA9104 .Letkunkiristin Slangklämma Hose clip Schlauchbinder
