33. Agroline ---instrument

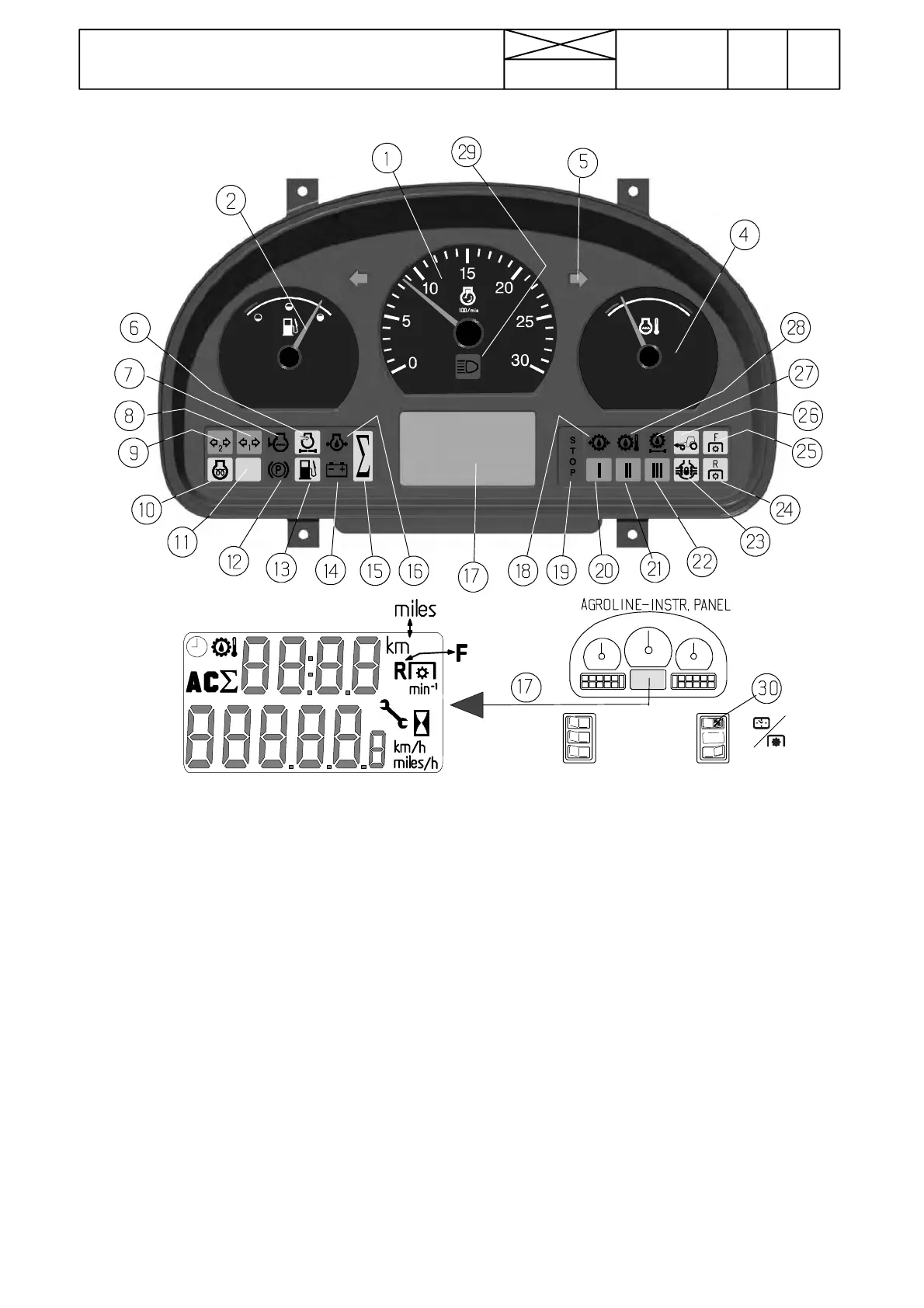

Agroline---instrument
1. Revolution counter
2. Fuel gauge
4. Engine temperature gauge
5. Directio n indicator flasher
6. Engine air filter warning li ght
7. Engine coolant level (not in use).
8. First trailer dir. ind. flasher (if one flasher bulb is blown, this
light does not flash)
9. Second trailer dir. ind. flasher (if one flasher bulb is blown,
this light does not flash)
10. Glowing
11. Not in use
12. Parking brake applied
13. Low fuel level (< 15 l, without extra reservoir)
14. Charging
15. Sigma---Power ind. light (8950Hi only)
16. Engine oil pressure
17. LCD--- display
18. Gearbox oil pressure
19. Stop---central warning light
20. DPS---speed I (not HiTech)
21. DPS---speed II (not Hitech)
22. DPS---speed III (not HiTech)
23. Differential lock
24. Rear PTO
25. Front PTO
26. 4WD
27. Hydraulic pressure filter blocked
28. Gearbox oil temperature
29. High beams
30. Switch (S80) to select functions in LCD---display (17)
upper row
Stop ---central warning light (19) T h e S t o p --- l i g h t i s c o n -
trolled by the following functions, i.e. if one of the following
warning lights come on, the STOP ---light starts to flash:
---engine oil pressure too low
---engine temperature too high (not ind. light)
---gearbox oil pressure too low
---gearbox oil temperature too high
---parking brake cable broken or faulty adjustment ( HiTech
only)
IftheSTOP---lightonlyisflashing,theenginetemperatureis
too high. If in the HiTech models the STOP ---light comes on
when the parking br ake is engaged, the parking brake cable
is broken or its adjustment is faulty. It is essential that this fault
must be repaired before driving.
When the ignition is switched on, the following warning lights
must come on:
---engine oil pressure
--- s t o p --- l i g h t i s f l a s h i n g
---gearbox oil pressure
--- 4 W D
---parking brake (HiTech models)l
--- c h a r g i n g
