Diff. lock switch Delta Powershift switch 4WD switch
387
Model Code Page
35. Autocontrol IV
1. 1. 1995
6600E
8100E-- 8750E
350 3
1. 1. 1994
Autocontrol IV display unit and function keys
1
23
45
6
789
0
AUTO
AUTO
AUTO
,
6681E_4

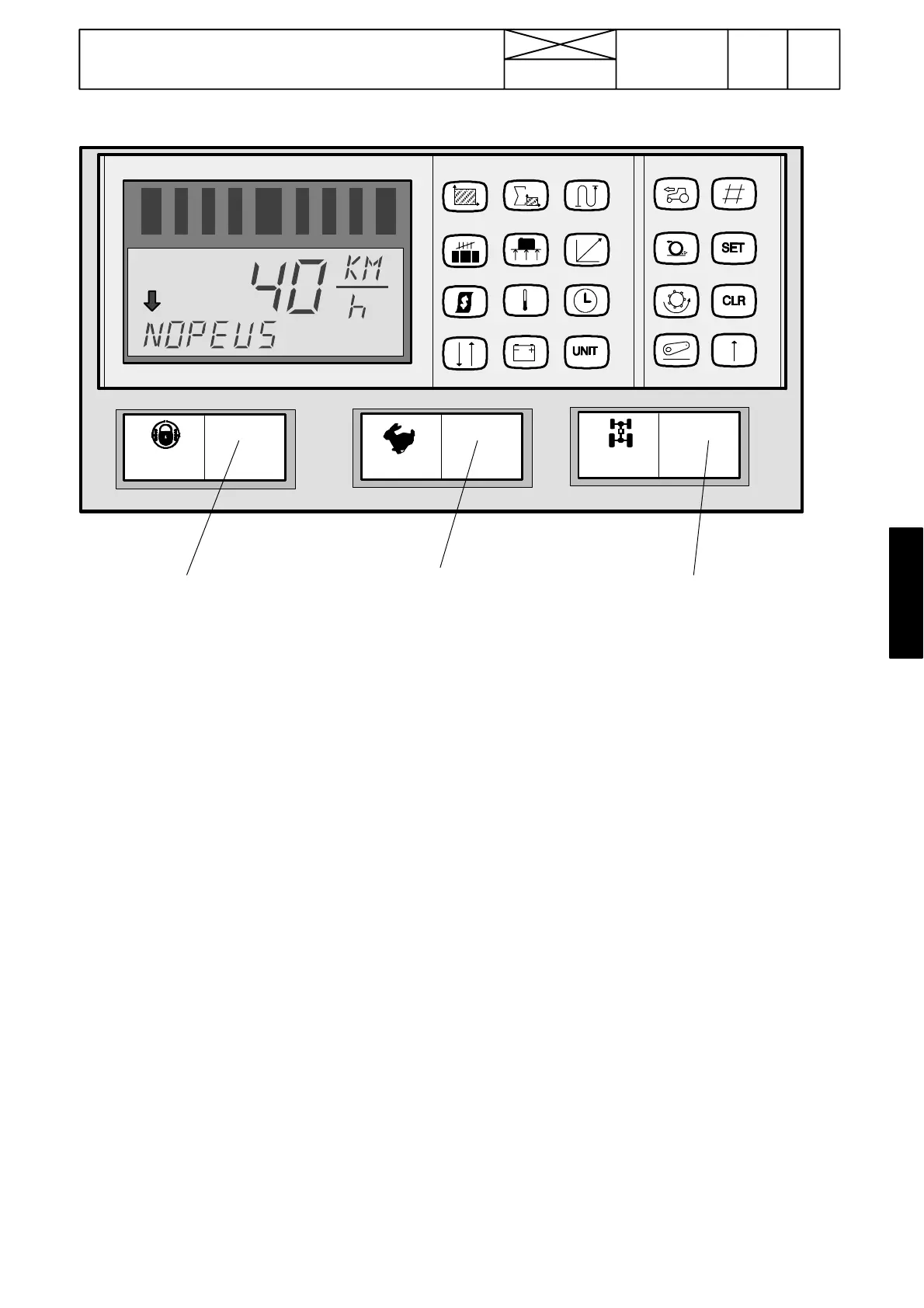

Picture 1. Display unit and function keys
Diff. lock switch:
Rear edge depressed: differentia l lock is engaged.
Middle position: lock is engaged manually but disengages when brake pedal/pedals are depressed
Front edge depressed: AC IV automatically controls the lock
Delta Powershift switch:
Rear edge depressed: the gear is controlled with the push buttons in the gear lever knob.
Front edge depressed: AC IV controls the gear automatically.
4WD switch:
Rear edge depressed: 4WD disengaged except when latched together brake pedals are depressed
Middle position: 4WD is engaged manually
Front edge depressed: AC I V automatically controls the 4WD
The display unit and keys are the same as on Autocontrol III,
see pages 340/6 and 7. The key functions differ a little when
calibrating the flow meter.
The switches below the display unit differ from the switches
on Autocontrol III, see page 340/6 (AC III) and page 350/1
(AC IV).
Calibrating mode for the hidden functions,seeAC
III on page 340/6.
