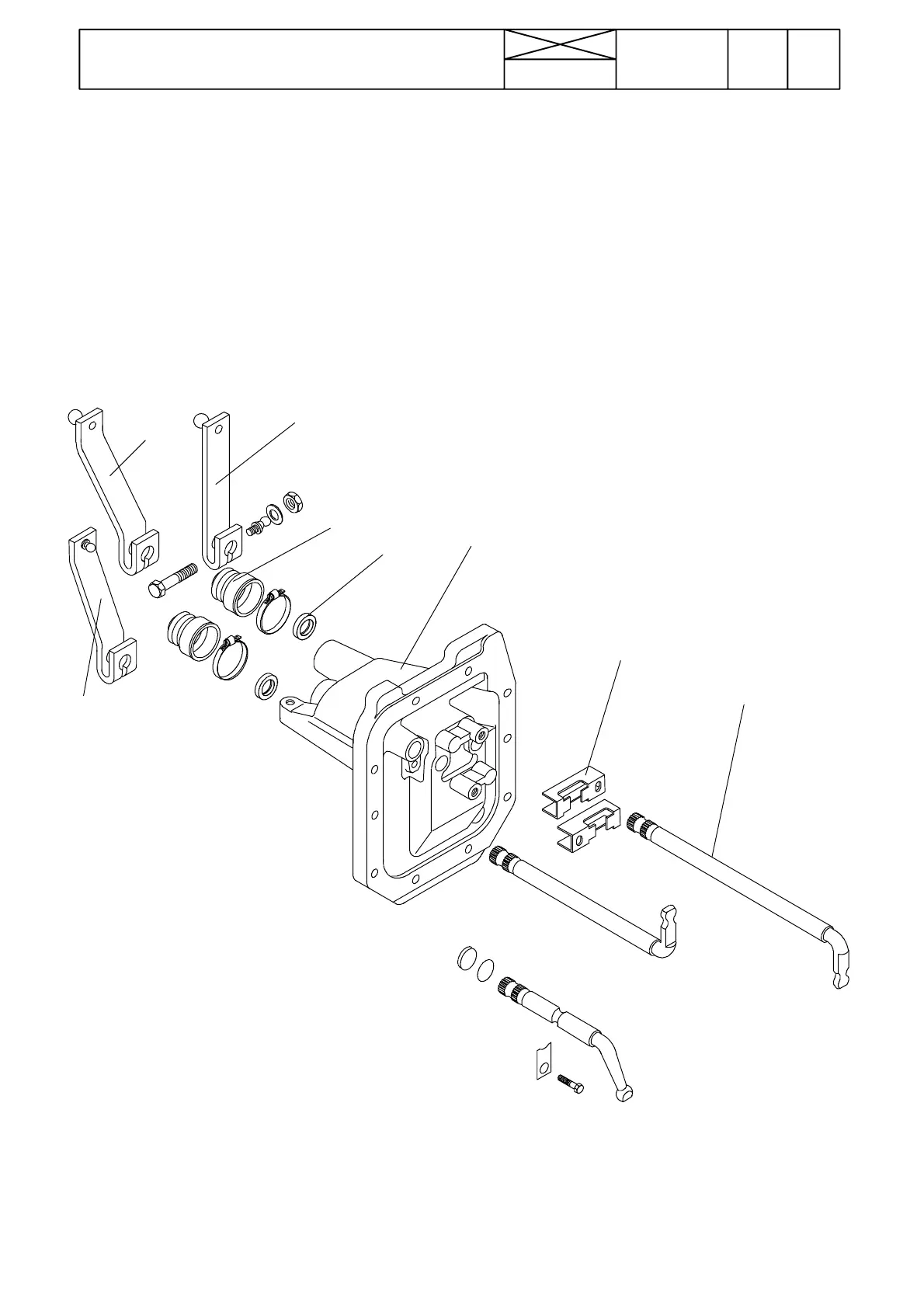

Figure 15. Selector levers and side cover
1. Shifter levers
2. Lead ---in rubber
3. Sealing rings
4.Sidecover(ontheRHsideofthegearbox)
5. Selector levers
6. Blocking pieces
Note! The side cover together with the selector levers can
be removed from the tractor after the gearbox oil is drained.
682
Model Code Page
42 Gearbox
8. 11. 1990
14420
6000--8750
Selector levers and side cover
Selector levers, which move the selector forks, are led into the
gearbox through the side cover on the right side of the gear-
box. Selector levers for speed and range gears can move also
in--- and outwards on the cover.
On the side cover there are fitted blocking pieces which pre-
vent simultaneous engagement of twogears. At the outer end
of the selector levers there are fitted shifter levers. Shifter rods
and cable are attached to the shifter levers.
Also the selector lever for the ground speed PTO (optional) is
led into the gearbox through the side cover (see section 46
P o wer take---off). Note! Reverse shuttle selec to r lever is
placed in front of the side cover (see section 44).
1
1
1
2
3
4
5
6
H --- M --- L L
1---2
3---4
AVO
