44. HiTech shuttle
1. 11. 1998
6250--8750 442 6
C. Reconditioning c lutc h for forward dri-
ving (rearmost clutch)

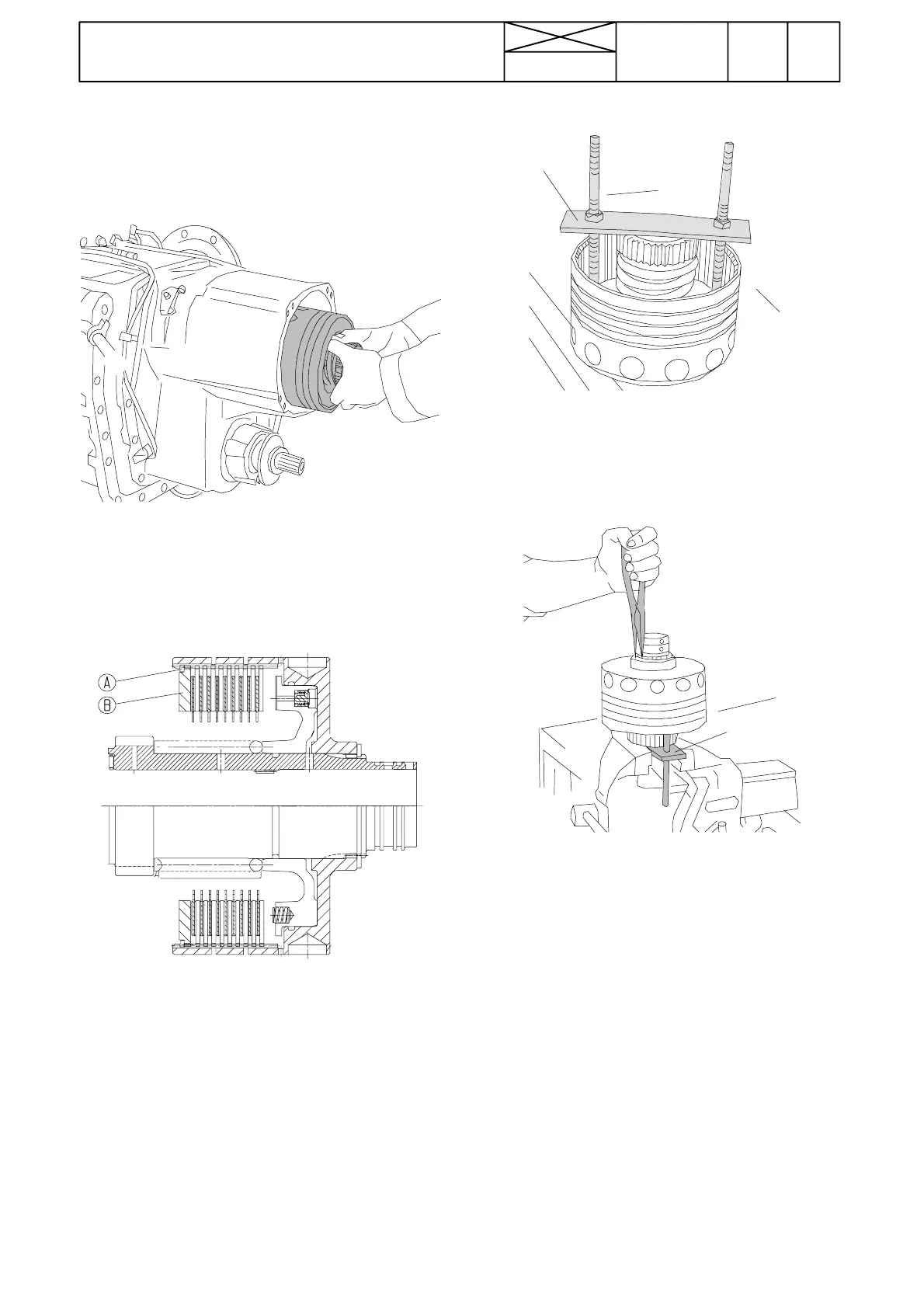

1. Split the tractor frame and remove the shuttle according
to instr. A.
2. Take the rearmost clutch out of the housing.
3. Take care of the thrust bearing between the sun gears.
4. Compress the clutch disc pack and release the snap ring
A and remove the support ring B.
5. Take the friction and steel discs and the spring rings out
of the drum. Remove the small spiral springs in the piston
housing.
Note! Dip the friction discs in oil before fitting and keep
them in oil for a while. Change all small coil springs of the
piston in connec t io n with reparations.
ETV 894 350
6. If you change the piston seals or the large spiral spring,
screw ETV 894 350 into the threaded holes in the piston.
Tighten the nuts of the ETV at which time the spring is
shrunk (and the piston is pulled out of its location).
ETV 894 350
7. Remove the clutch drum snap ring.
