219
Model Code Page
45. Final drives
1. 11. 1998
6000--8950
451 3
1. 9. 2002
ET 893 410

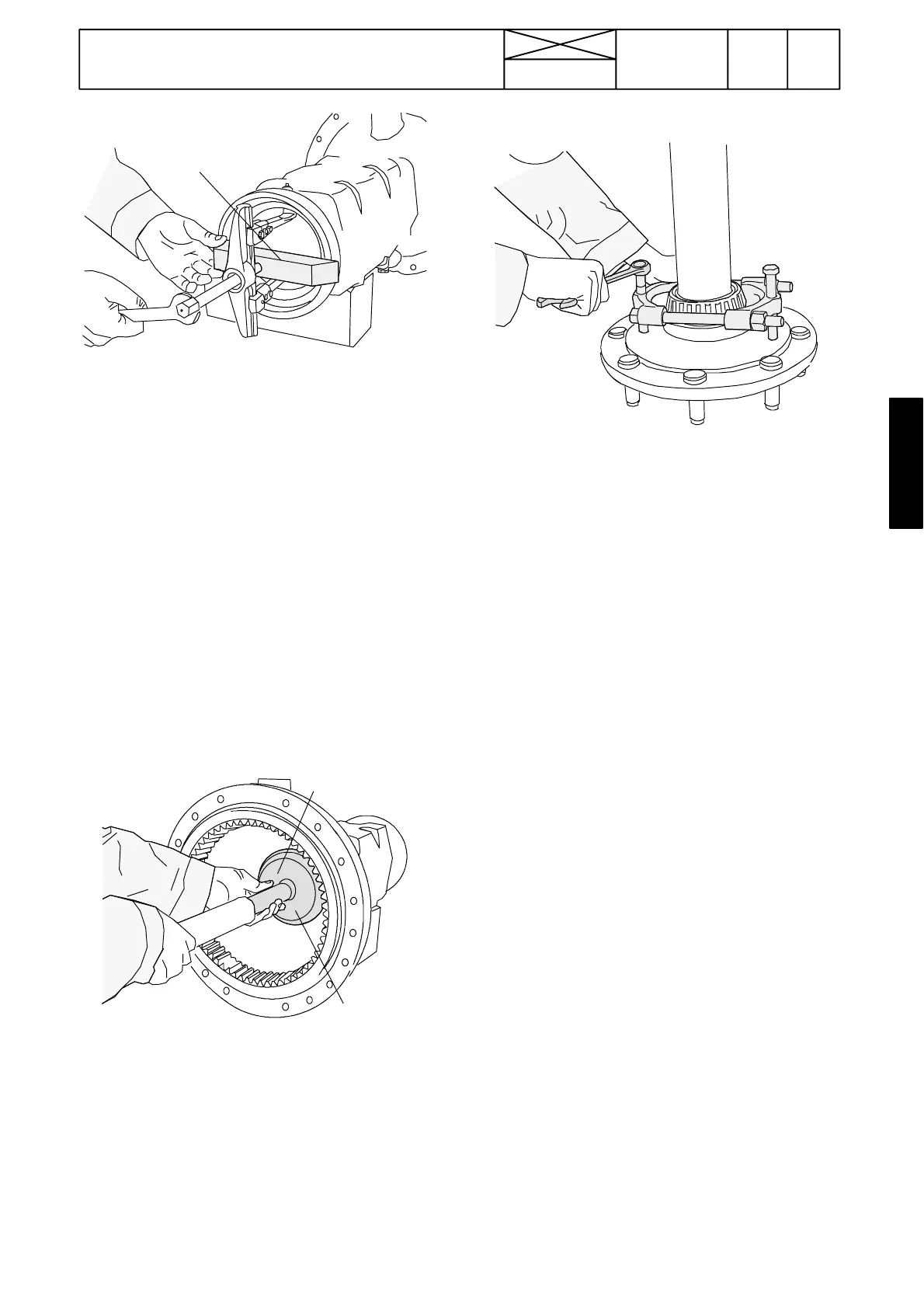

5. Position counter hold ET 893 410 against the rear axle
housing and pull o ut the outer bearing race.
6. Final gears 650, 6250Hi---8950Hi (---K36111) and
6600---8750 (J02316---K36111): Remove the plastic ring in
front of the inner seal. Lever out the seal, if damaged.
Grease lips of a new seal and fit it. Fit the plastic ring in
front of the seal.
7. Fit the race of the outer bearing (6000---6400, 6900 ---
8000: ETV 893 320 and universal handle ETV 890 220). Tap
it fully home
8. Final gears 300 and 650: Lubricate the outer oil seal
and fit it. Use a sturdy plate for fitting. Final gears 650 R
and 700: Fit the outer cassette seal of the drive shaft to the
axle housing using plate: 650 R, ETV 894 470 and 700, ETV
894 550).
.
9. Remove the inner bearing race using a puller and sup-
port ET 893 410. Fit a new bearing race using plate ETV
893 320 6000---6400, 6900---8000 or ETV 892 260
(6600---8750).
ETV 893 310
ETV 893 690
10. Final gears 300 and 450: Change the inner oil seal of
theouterdriveshaft.FitanewsealwithplateETV893310
6000---6400, 6900---8000 (--- K41105) or ETV 893 690
6600---8750 ( ---J02315).
NOTE! Recommend use the followings ETV ---tools to as-
semble the final drives
11. Put the drive shaft upright with the wheel flange on the
floor. Grease the bearings and seals before fitting them.
Final gears 650 and 700: Placetheguidepipeonthedri-
ve shaft. (650: ETV 894 490) ja (700: 894 560).
Only 650: Put the guide sleeve ETV 894 480 on the inner
bearing rac e of the axle housing
Carefully lift the axle housing into the drive shaft *). Make
sure that the seals are not damaged.
RemovetheETV---toolsfromthedriveshaft.
*) HiTech ( --- K36111) and 6600---8750, (J02316 ---K36111)
tract ors, the inner seal has been moved outwards .
Protect the plastic ring seal using the ETV ---tools and
grease.
12. Fit the inner bearing on the drive shaft. Fit the planetary
gear on the splines on the drive shaft and press the planet-
ary gear home. Fix the planetary gear to the end of the
drive shaft with the attaching plate and the screw.
13. Adjust the drive shaft bearing clearance (instr. D) and
fit the final drives (instr. E).
