46. Power take ---off
15. 5. 1993
6000--8750 460 13
1
2
3
4
5
6
7
8
9

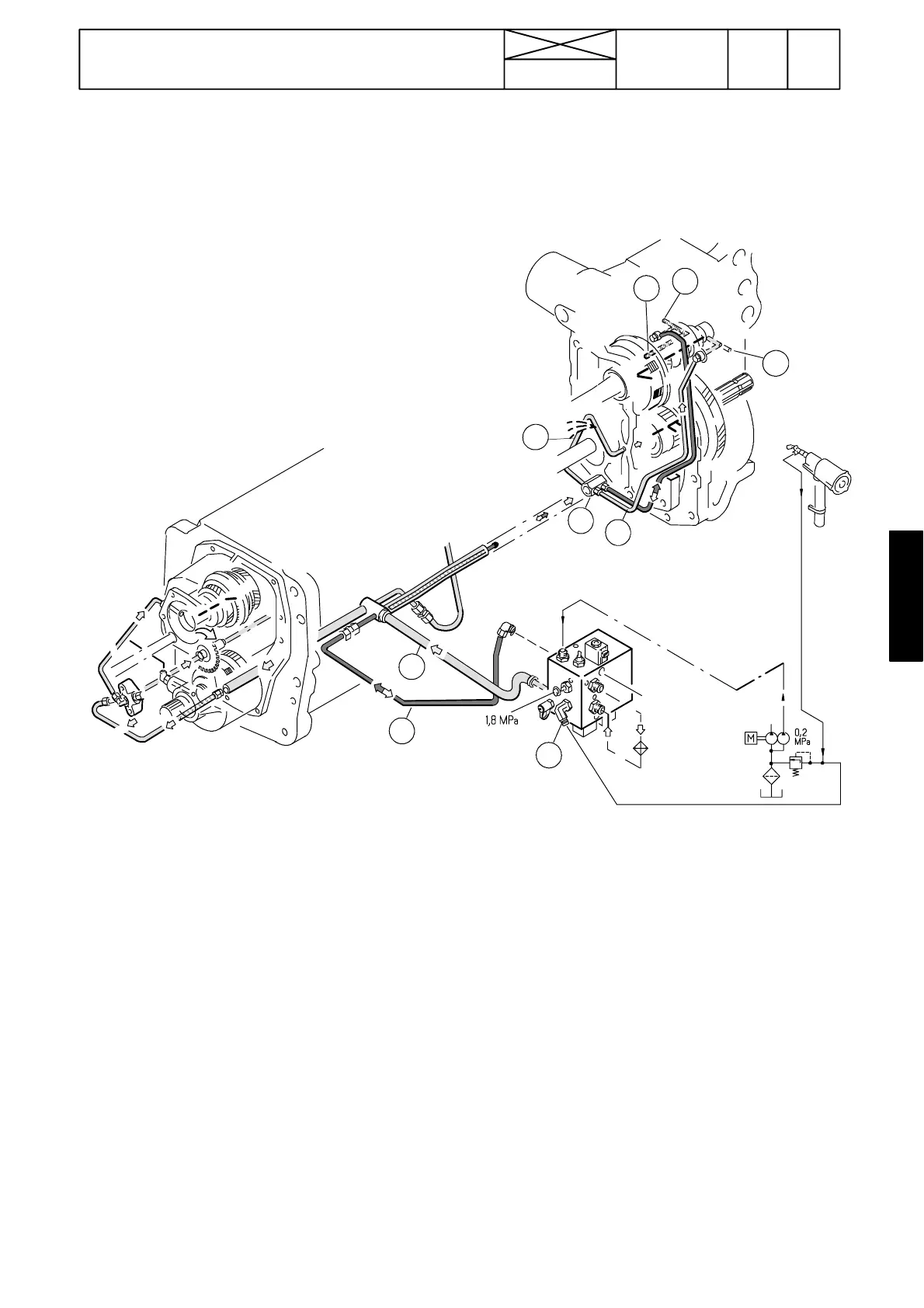

Picture 10. Lubricating system and clutch pressure
piping, 659787 ---.
1. Servo valve block (660071 ---), which has in---built
cushioning valve for the PTO clutch (see page 462/9).
The PTO solenoid valve is fitted on the valve block
lower side.
2. Lubricating oil feed pipe in the gearbox housing
3. PTO clutch pressure
4. Oil distributor piece
5. Lubricating oil to PTO clutch shaft
6. Lubricating oil to PTO shaft
7. Pressure---test point
8. Pressure---test point
9. PTO clutch pressure
