241
Model Code Page
51. Brake system
1. 9. 2002
6000--8950 511 3
8. 11. 1990
D. Changing brake housing
The brake housing fixing bolts are difficult to open if the
cabin is fitted in place. For that reason, the cabin must be
lifted up before removing the brake housings (removing
the cab, see section 80) or the tractor frame must be split
(see Op. 423 1A).
When fitting the brake housing, apply sealing compound
Hylosil RTV Grade 102 black or Loctite 5900 to the contact
surfaces between gearbox---brake housing.
Brake housing fixing bolts are tightened to 270---330 Nm.

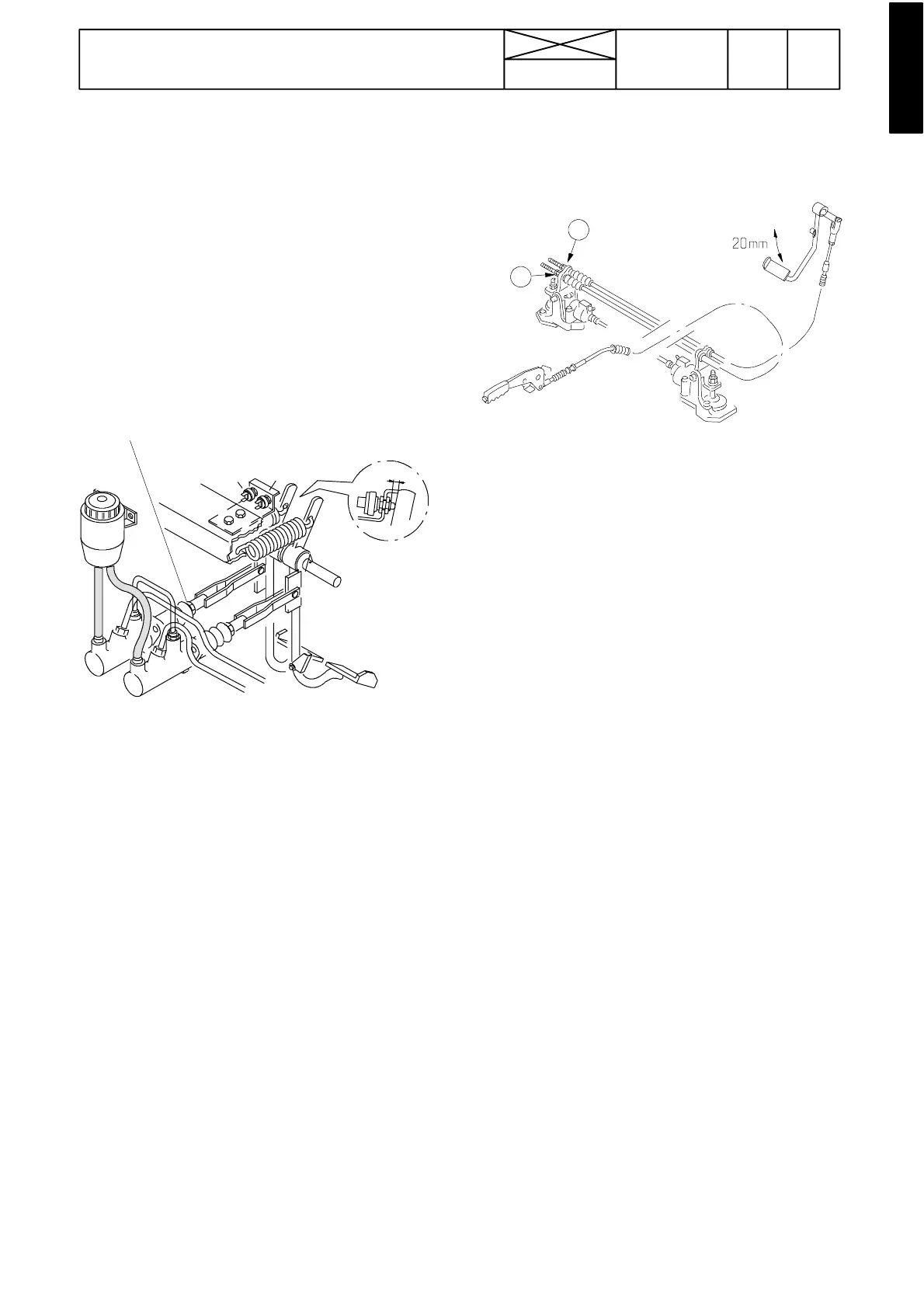

E. Adjusting master cylinder pushrod
clearance
S20 S10
8mm
1
2
The clearance should be 1 --- 3 m m . This adjustment is done
by slackening screw (1) and removing the cotter pin and
the pivot pin and turning the clevis.
Note! Point 2 shows the brake light switch adjusting
measurement.
F. Tractors with reverse drive controls
(TwinTrac)
1
2
Adjusting rear brake pedal free travel:
--- adjust first the free travel of the front pedals according to
instruction B.
--- adjust the free travel o f the rear brake pedal to 20 mm
by turning the adjusting nut 1.
--- nut 2 is for adjusting the parking brake cable. Adjust-
ment of the parking brake is shown on page 521/1 ---3.
