Engineer programming via the browser

Configuring Communications

270

Vanderbilt

Installation & Configuration Manual

A6V10276959

01.05.2016

2. Configure the following fields:

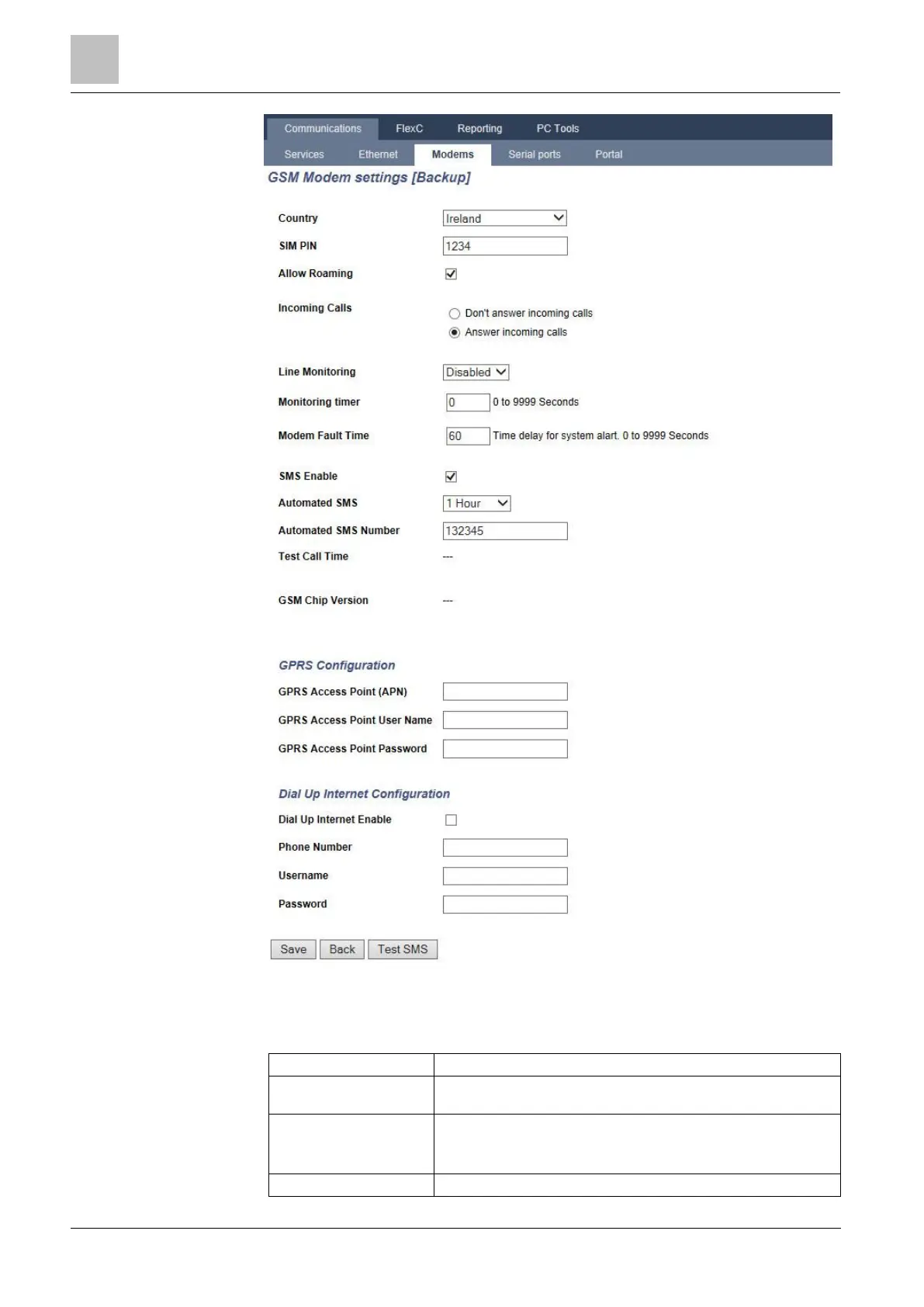

Modem settings

Country

Select the country that the SPC is installed in.

SIM PIN

Only for GSM. Enter the PIN for the SIM card installed in the GSM

module.

Allow Roaming

Select to enable GSM roaming.

Note: Changing this setting resets the modem.

Note: Supported on GSM modems v3.08 or higher.

Incoming Calls

The modem can be programmed to answer calls based on the following

Default Chapter3
