2920 Float & Tape Transmitter 3 Mounting
16 Installation and Operations Manual

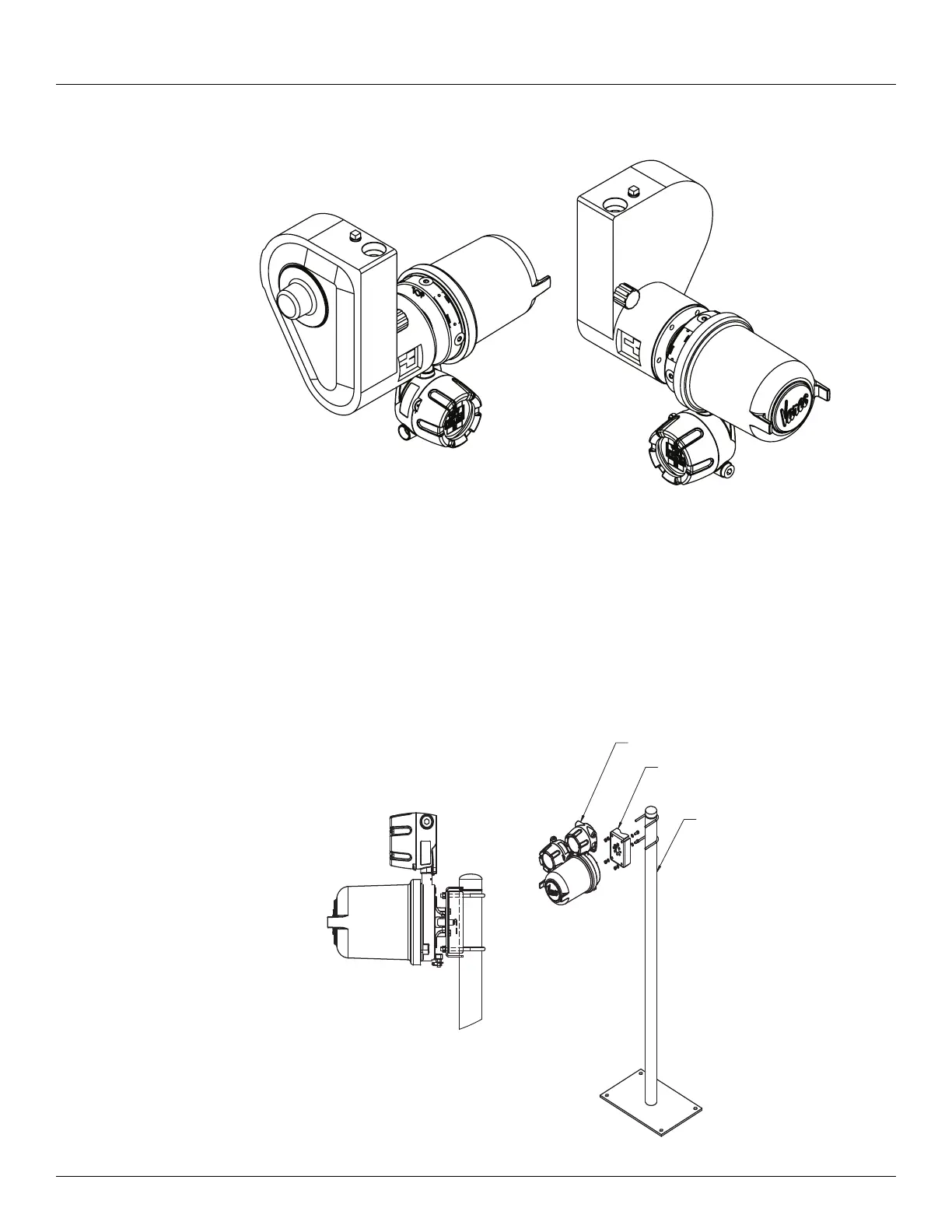

The following figure shows the 2920 mounted on a S & J Gauge.
Pipe Mount Option
The 2920 FTT can be used standalone without a mechanical gauge for radar applications as a
tank side integrator. It can talk to HART radars and temperature devices.
In this situation, it will mount on a 2" pipe as shown.
(BY OTHERS)
BRACKET ASSEMBLY 05-013352
OPTIONAL PIPE MOUNTING
2" VERTICAL OR HORIZONTAL PIPE
VAREC 2920 FTT TRANSMITTER
