Varec 2920 - Analog Output

2920 Float & Tape Transmitter 4 Wiring
24 Installation and Operations Manual
Analog Output

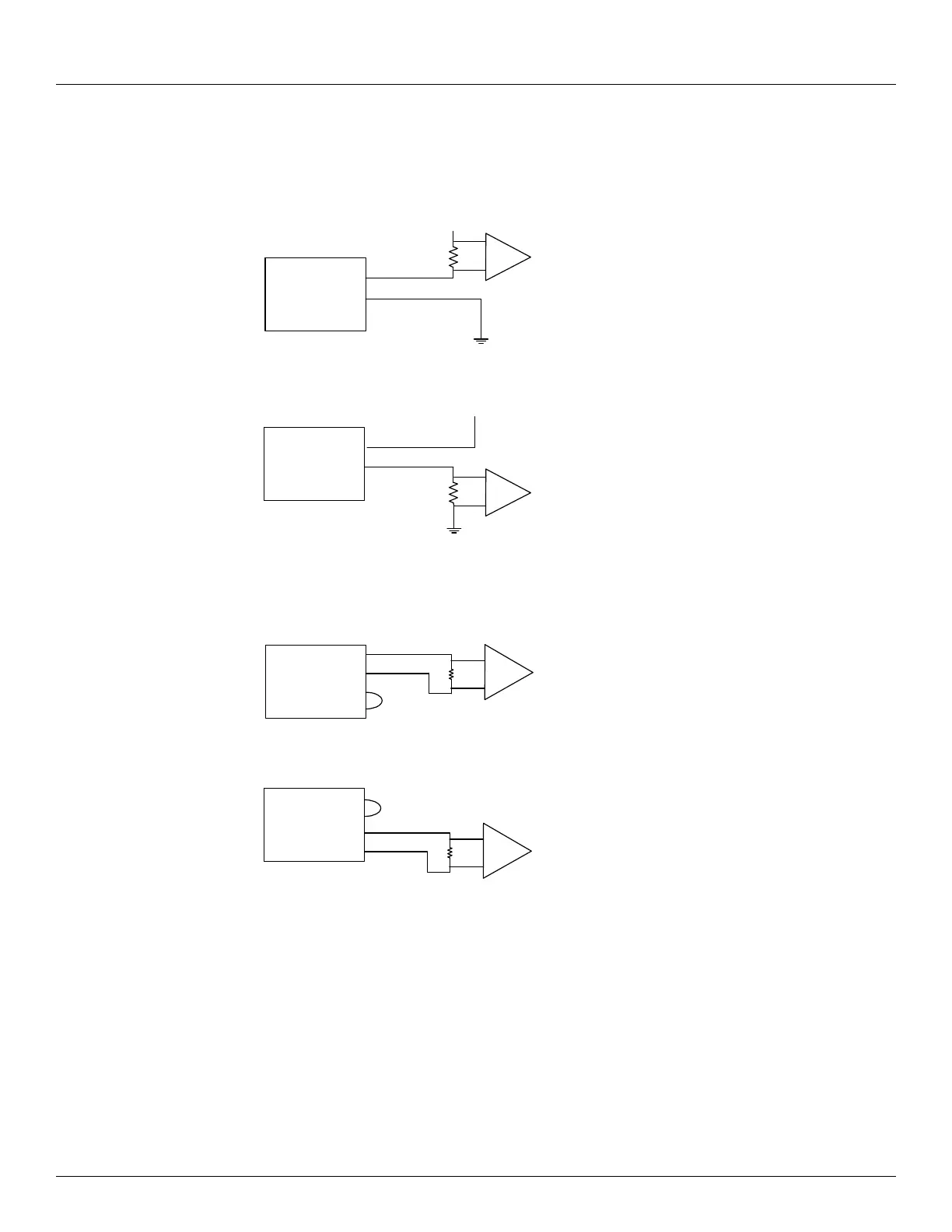

The Analog Output power drawings below apply to either the AO1 or AO2 terminals.
Load
A/D
External +24VDC
Load
A/D
External +24VDC
Load
A/D
Load
A/D
External Power
Internal Power
AO +
AO -
AO +
AO -
A+24V
AO +
AO -
ACOM
A+24V
AO +
AO -
ACOM
(2920 Provides Loop Power)
