Page 150 of 244
PANO image size: 3208 (variable) x 1372 (constant)
Center Pin Position: 1574 ±10 pixel
Right/Left Pin Distance: ±30 pixel: ±30 pixel

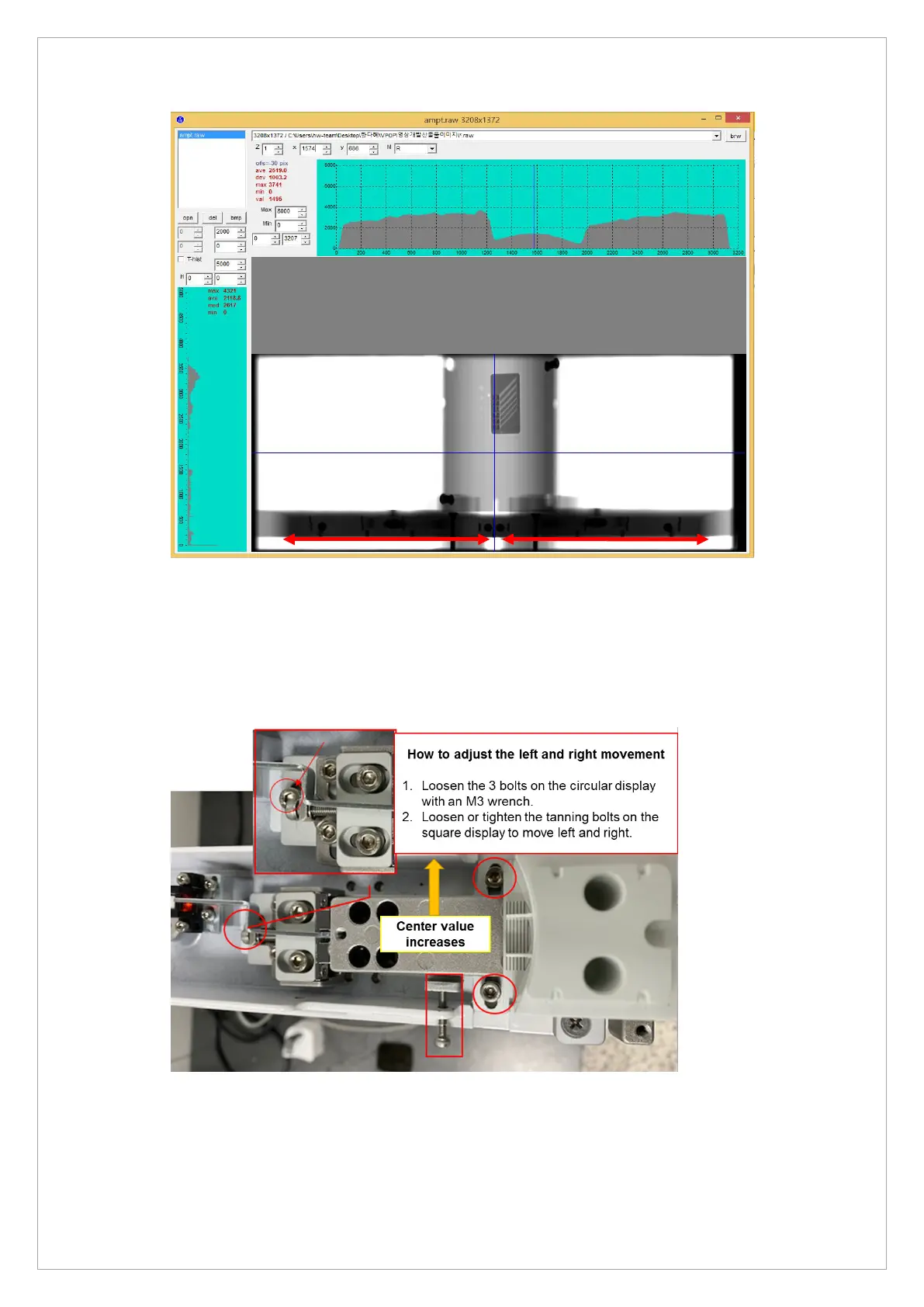

4) Center Pin Position is not correct, as shown in the picture below, loosen the three
points of the Chinrest drive and move it.
5) When moving to the right, the center of the image moves to the left. (Center value
increases)
