Overview

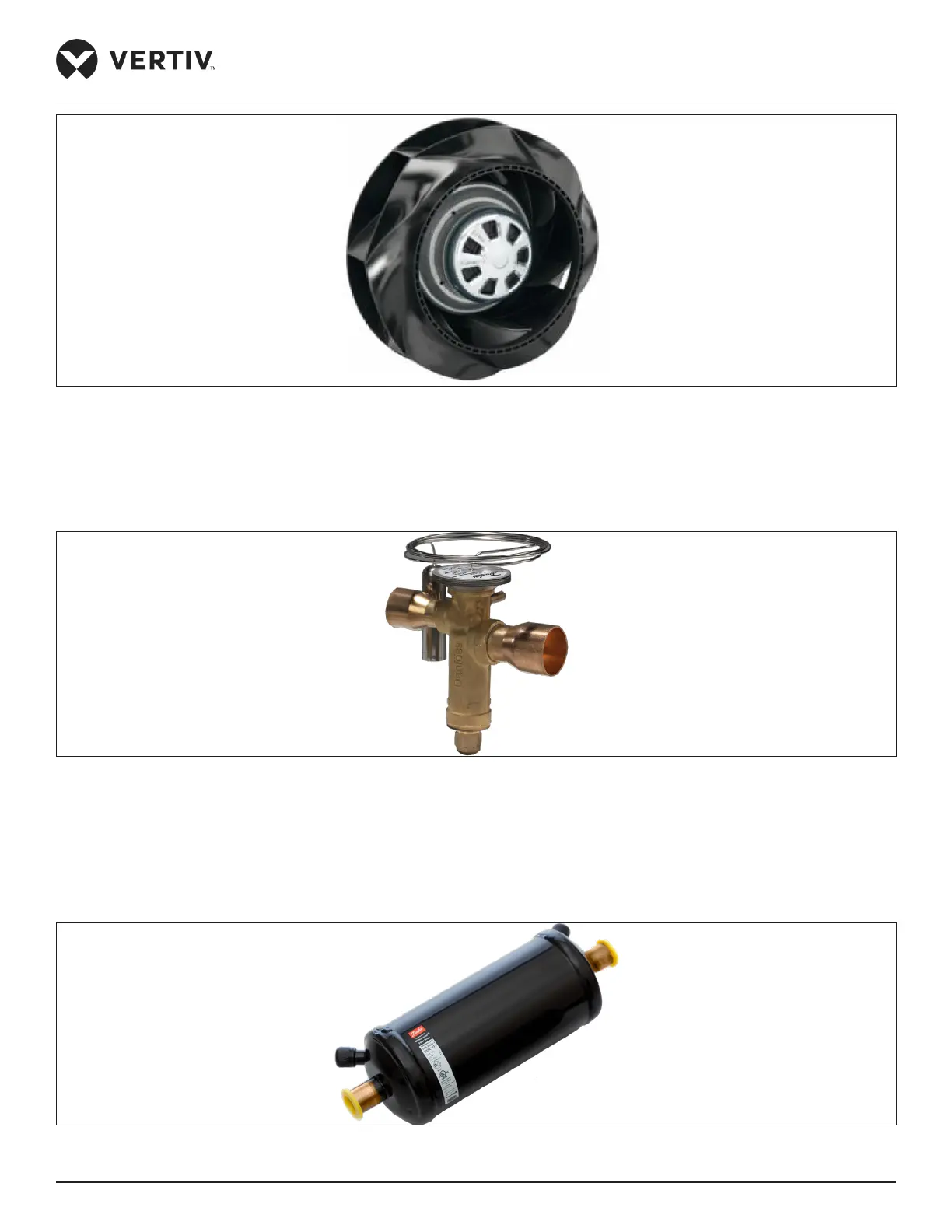

Figure 1-4 EC Fan
• Thermal Expansion Valve (TXV)
Vertiv™ Liebert® SRC-G unit has an external equalizer type Thermal Expansion Valve (TXV) that collects
temperature and pressure signals simultaneously to accurately regulate the refrigerant flow into the evaporator.
Figure 1-5 Thermal Expansion Valve (TXV)
• Filter Dryer
The moisture can adversely aect the operations and service life of a system in the refrigeration life-cycle. In
order to rectify this condition the unit is equipped with a filter dryer that can filter out, remove, hold, and prevent
the moisture particles from circulating through the system.
Figure 1-6 Filter Dryer
