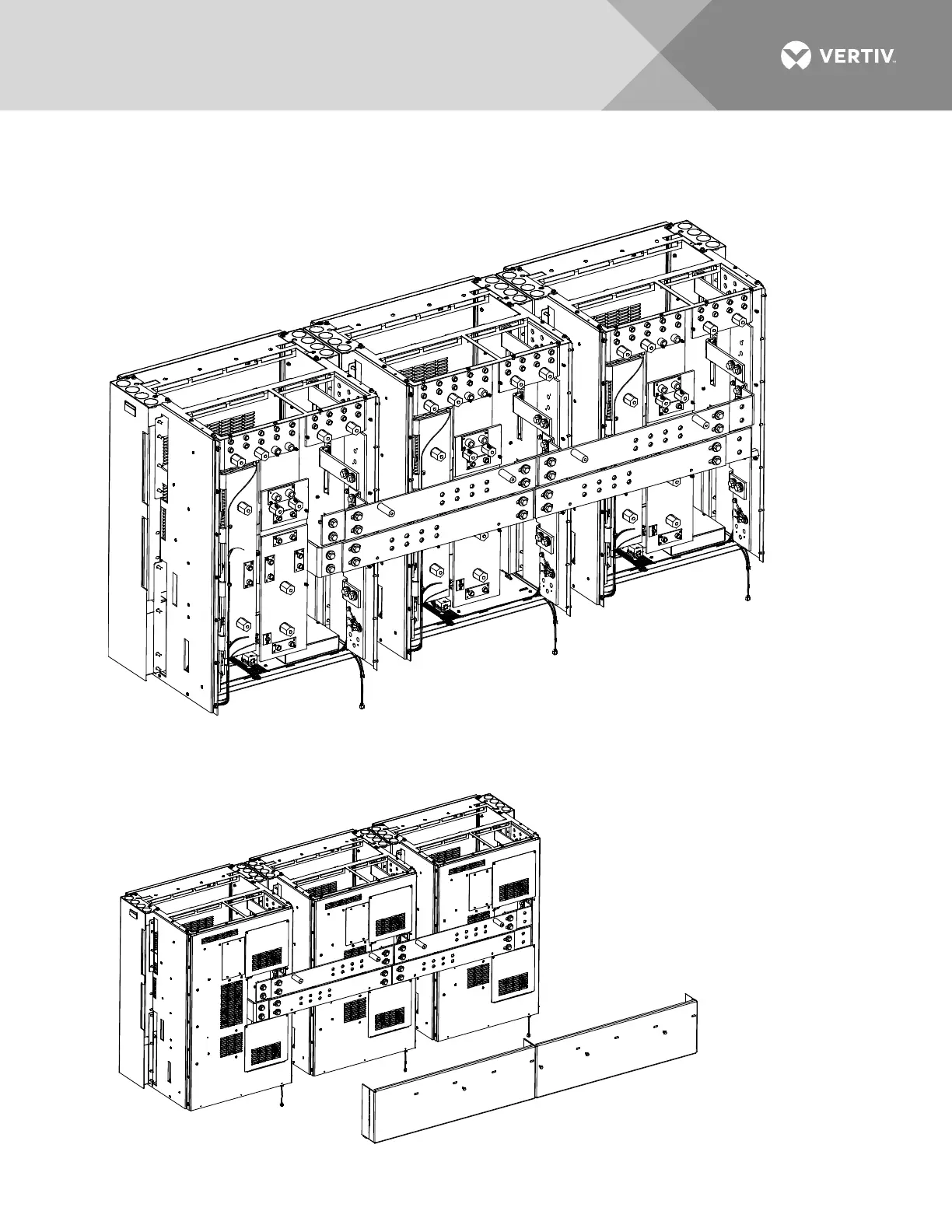

Figure 69: Installing Bay-to Bay Busbars (List 2 and 3 Only) (for system mounted in a relay rack) (cont’d from
previous page)
ATTACH REAR COVER SHIELDS
ASSEMBLED VIEW
7. Secure rear cover shields to previously
installed insulator standoffs using
1/4-20 x 1/2” Bolt and 1/4” Flat Washer,
2 places each shield.
8. Secure rear cover shields to distribution
cabinets using 6-32 x 3/8“ screws,
2 places each shield.
