Battery Connections to Optional Battery Landing Busbar Kit P/N 553584 (for system mounted in a relay
rack)
DANGER! Adhere to the “Important Safety Instructions” presented at the front of this document.

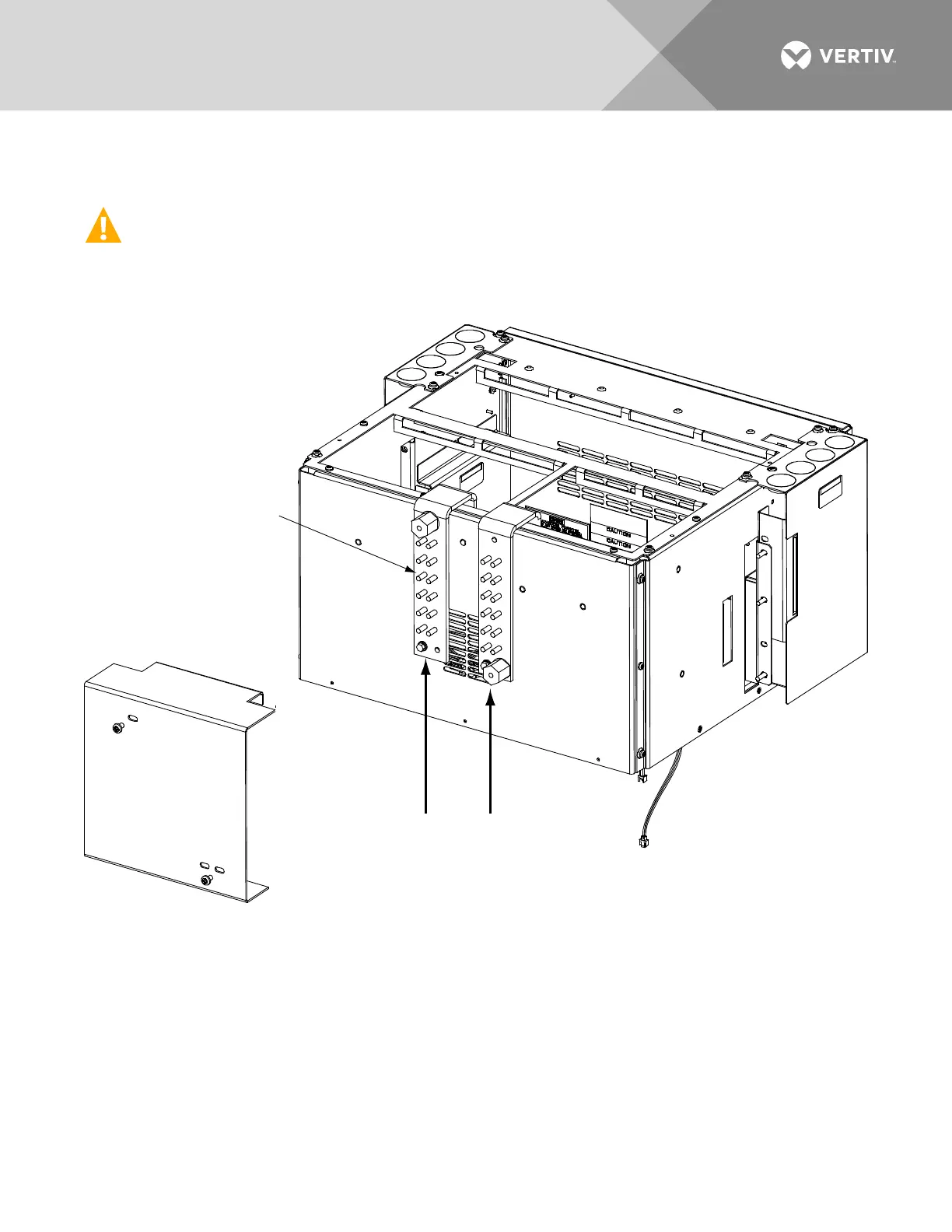

Figure 111: Battery Connections to Optional Battery Landing Busbar Kit P/N 553584 (for system mounted in a
relay rack)
Rear V
iew
GND RTN-48V SUPPLY
Plastic Shield
Up to Six (6) Battery Leads (per polarity)
1/4-20 x 0.875" Studs
on 0.625" Centers,
24 Places (Customer must
supply additional hardware.)
(One Row Cabinet
Shown, Others Similar)
Battery
(Return Side)
Busbar
Battery
(Load Side)
Busbar
