Installing Optional Battery Disconnect Circuit Breakers
Procedure
1. To install an optional battery disconnect circuit breaker onto the List 93 Battery Tray, perform the
procedure in Figure 13.
2. Battery tray wiring is shown in “Installing and Connecting Batteries in List 93 Battery Tray (if furnished)”
on page 188.

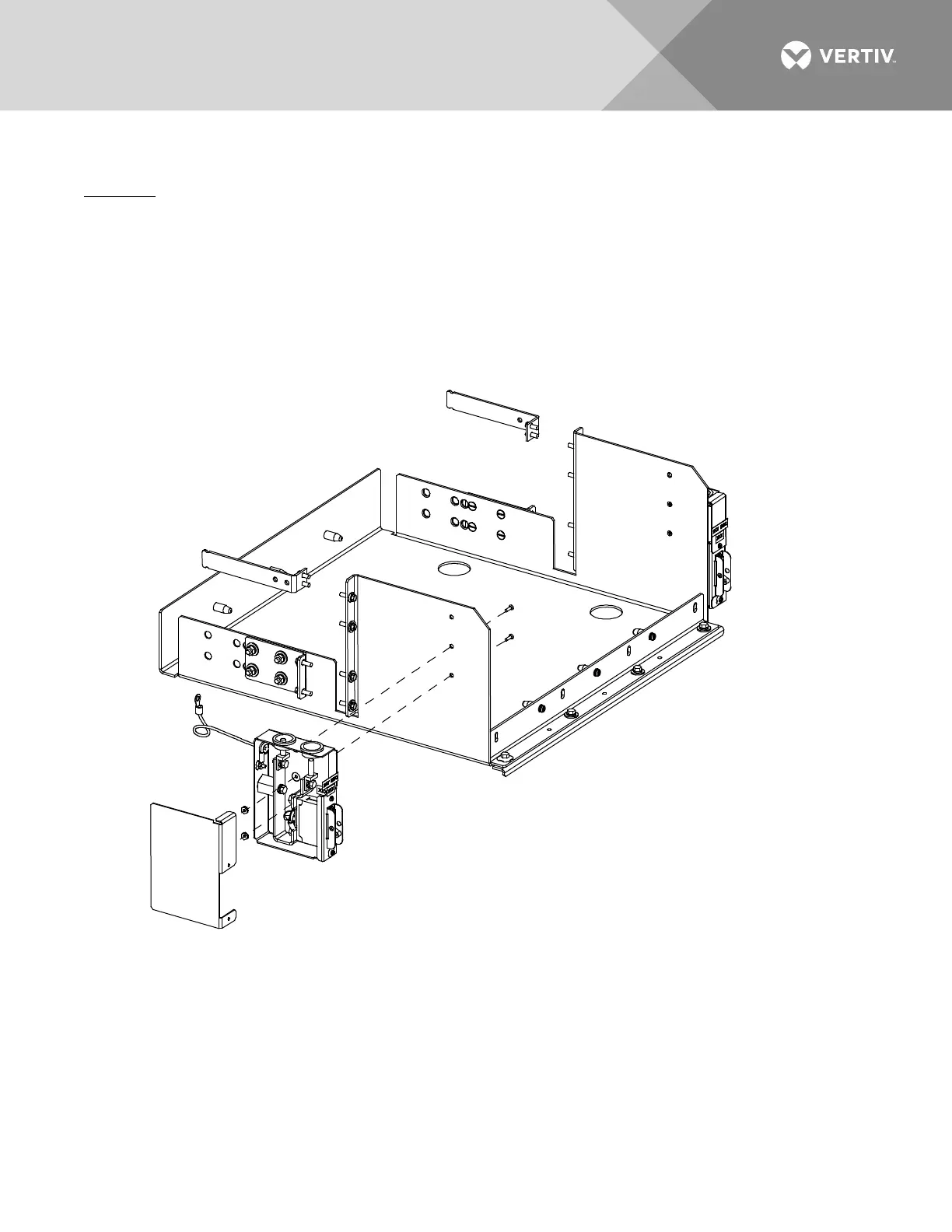

Figure 13: Installing Optional Battery Disconnect Circuit Breakers onto a List 93 Battery Tray
Battery Disconnect
Circuit Breaker Assembly
(left side kit shown,
right side kit available)
1. Remove the cover from the battery
disconnect circuit breaker assembly.
2. Secure the battery disconnect circuit
breaker assembly to the battery tray
using 6-32 x 1/2” screws and 6-32
KEPS nuts (2-places).
3. Secure the ground lead under a battery
tray relay rack mounting bolt.
4. After wiring to the battery disconnect
circuit breaker, replace the cover.
