Vertiv NetSure 7100 Series Installation Manual

Vertiv | NetSure 7100 Series -48V DC Power System Installation Manual (IM582127000) | Rev. BB
173
Load Connections to Return Bar

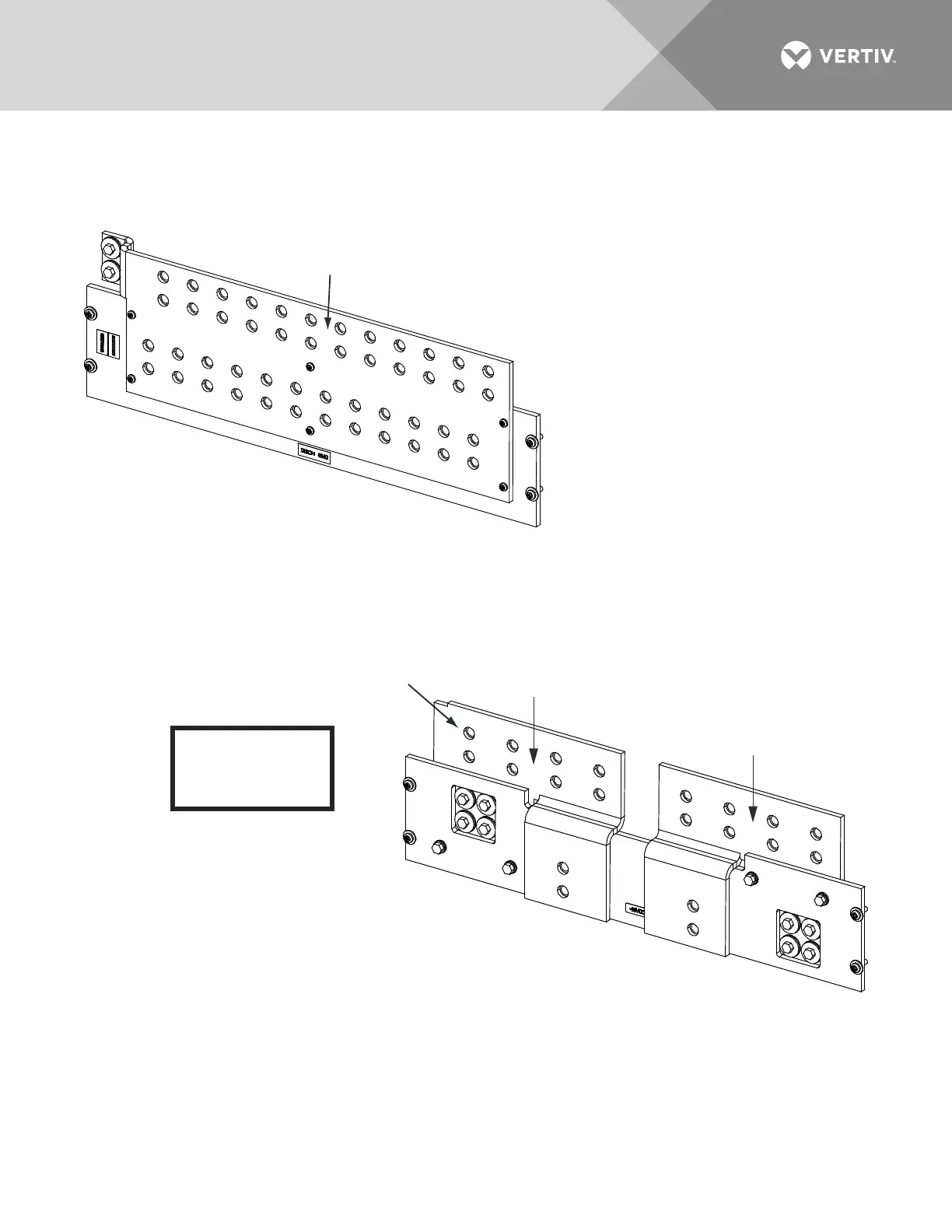

Figure 95: List GA: Return Bar Panel
Load Connections to Bulk Output Panel
Figure 96: List EA: Bulk Output Panel
Load and/or Battery
Return Connections
LOAD
AND/OR B
ATTERY RETURN CONNECTIONS
3/8-16 Captive Nuts on 1” Centers
(Customer must supply or order additional hardware)
Maximum Lug Width: 1.38 inches.
Observe proper
polarity when making
load connections.
WARNING!
Load Return
Connections
LOAD AND LOAD RETURN CONNECTIONS
3/8-16 Captive Nuts on 1” Centers
(Customer must supply or order additional hardware)
Maximum Lug Width: 2.0 inches.
Return Busbar
-48 VDC Load
Connections
