Vertiv NetSure 7100 Series Installation Manual

Vertiv | NetSure 7100 Series -48V DC Power System Installation Manual (IM582127000) | Rev. BB
172

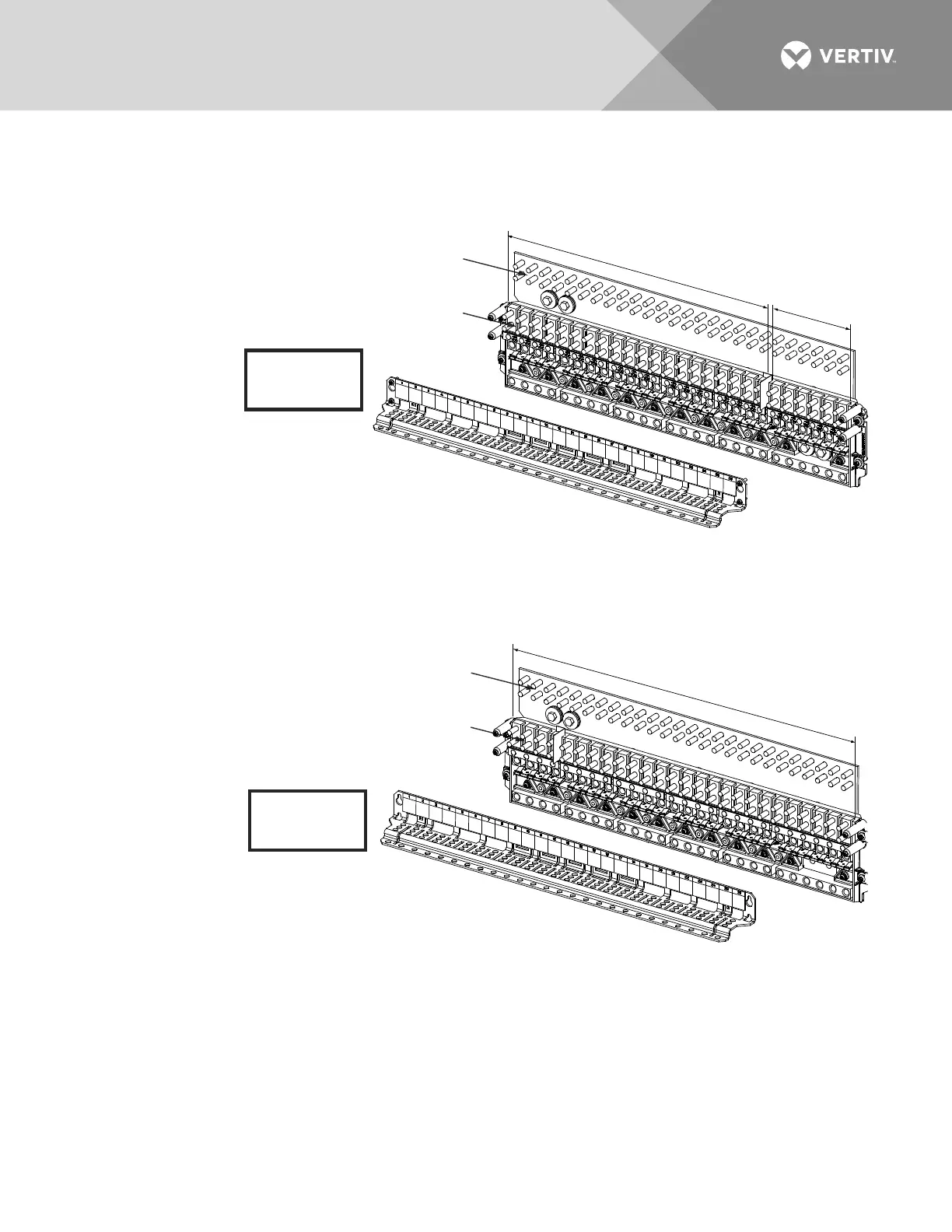

Figure 93: List DJ: -48 VDC / +24 VDC Distribution Panel, (6) -48 VDC Bullet/TPS/TLS Circuit Breaker/Fuse
Positions (with Return Busbar) and (20) +24 VDC Bullet/TPS/TLS Circuit Breaker/Fuse Positions
(with Return Busbar)
Figure 94: List DK: -48 VDC / +24 VDC Distribution Panel, (26) +24 VDC Bullet/TPS/TLS Circuit Breaker/Fuse
Positions (with Return Busbar)
Observe proper
polarity when making
load connections.
WARNING!
-
4
8V
D
i
s
tr
i
b
u
ti
o
n
+
2
4V
D
i
s
tr
i
bu
ti
on
LOAD AND LOAD RETURN CONNECTIONS
1/4-20 Studs on 5/8” Centers
(Customer must supply
or order additional
hardware)
Maximum Lug Width:
0.625 inches.
Load
Connections
Load Return
Connections
Caution: 100 A circuit breakers and fuses can be used without a space provided
the continuous operating current in each 100 A device does not exceed 64 A.
A 175 A or greater circuit breaker shall have an empty mounting position between it
and any other overcurrent protective device.
+24
V
D
i
s
tr
i
b
u
ti
o
n
LOAD AND LOAD RETURN CONNECTIONS
1/4-20 Studs on 5/8” Centers
(Customer must supply
or order additional
hardware)
Maximum Lug Width:
0.625 inches.
Load
Connections
Load Return
Connections
Observe proper
polarity when making
load connections.
WARNING!
Caution: 100 A circuit breakers and fuses can be used without a space provided
the continuous operating current in each 100 A device does not exceed 64 A.
A 175 A or greater circuit breaker shall have an empty mounting position between it
and any other overcurrent protective device.
