Vertiv NetSure 7100 Series Installation Manual

Vertiv | NetSure 7100 Series -48V DC Power System Installation Manual (IM582127000) | Rev. BB
151

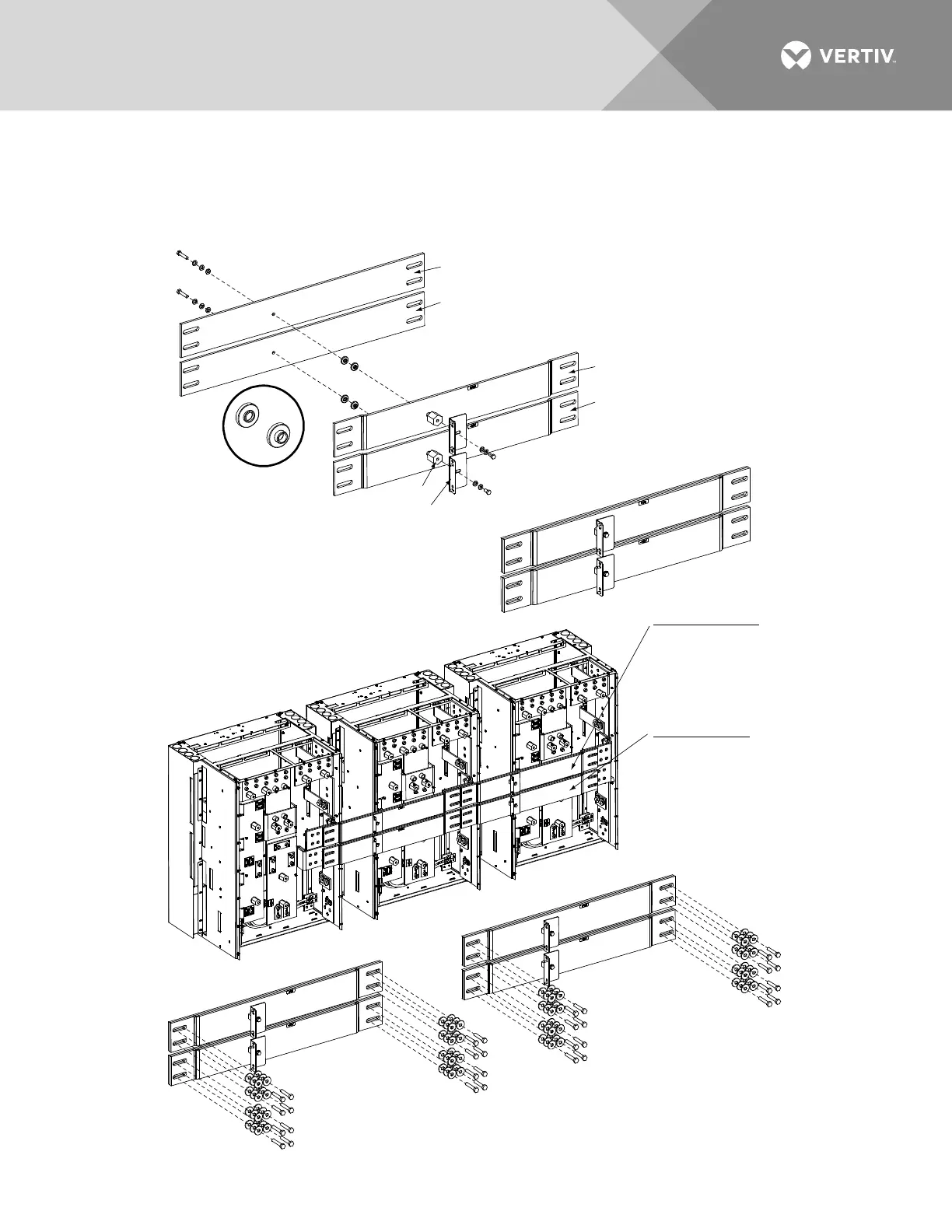

Figure 70: Installing Bay-to Bay Busbars (List 7 and 8 Only) (for system mounted in an enclosure) (cont’d from
previous page, cont’d on next page)
4. Assemble flat Return Interbay Busbars.
(Do Not Tighten)
5. Attach asembled flat Return Interbay Busbars.
6. Assemble flat -48V Interbay Busbars.
(Do Not Tighten)
7. Attach assembled flat -48V Interbay Busbars.
SEE NEXT PAGE FOR
ASSEMBLED VIEW
Return Interbay Busbar
Secure in 4 places
with (in order listed)
5/16-18 x 1-3/4” Bolt
5/16" Belleville Lock Washer
5/16" Hardened Flat Washer
(4 places)
Torque to 108 in-lbs.
-48V Interbay Busbar
Secure in 4 places
with (in order listed)
5/16-18 x 1-3/4” Bolt
5/16" Belleville Lock Washer
5/16" Hardened Flat Washer
(4 places)
Torque to 108 in-lbs.
Components removed in
illustration for clarity only.
Close-Up View
Showing Spacer
Orientation
Assembling Return Interbay
and -48V Interbay Busbars
Return Interbay and -48V Interbay
Busbars Assembled View
Return Label
-48V Label
5/16-18 x 1-3/4” Bolt
5/16" Belleville Lock Washer
5/16" Hardened Flat Washer
(4 places)
Torque to 108 in-lbs.
5/16-18 x 1-3/4” Bolt
5/16" Belleville Lock Washer
5/16" Hardened Flat Washer
(4 places)
Torque to 108 in-lbs.
Busbar 563690
Bracket
Insulator
Busbar 563690
Busbar 563514
Busbar 563514
1/4-20 x 1/2” Bolt,
1/4” Lock Washer,
1/4” Flat Washer.
Do Not Tighten
1/4-20 x 1-1/4” Bolt,
1/4” Lock Washer,
1/4” Flat Washer,
1/4” Flat Washer.
Torque to 84 in-lbs.
