Vertiv NetSure 7100 Series Installation Manual

Vertiv | NetSure 7100 Series -48V DC Power System Installation Manual (IM582127000) | Rev. BB
154

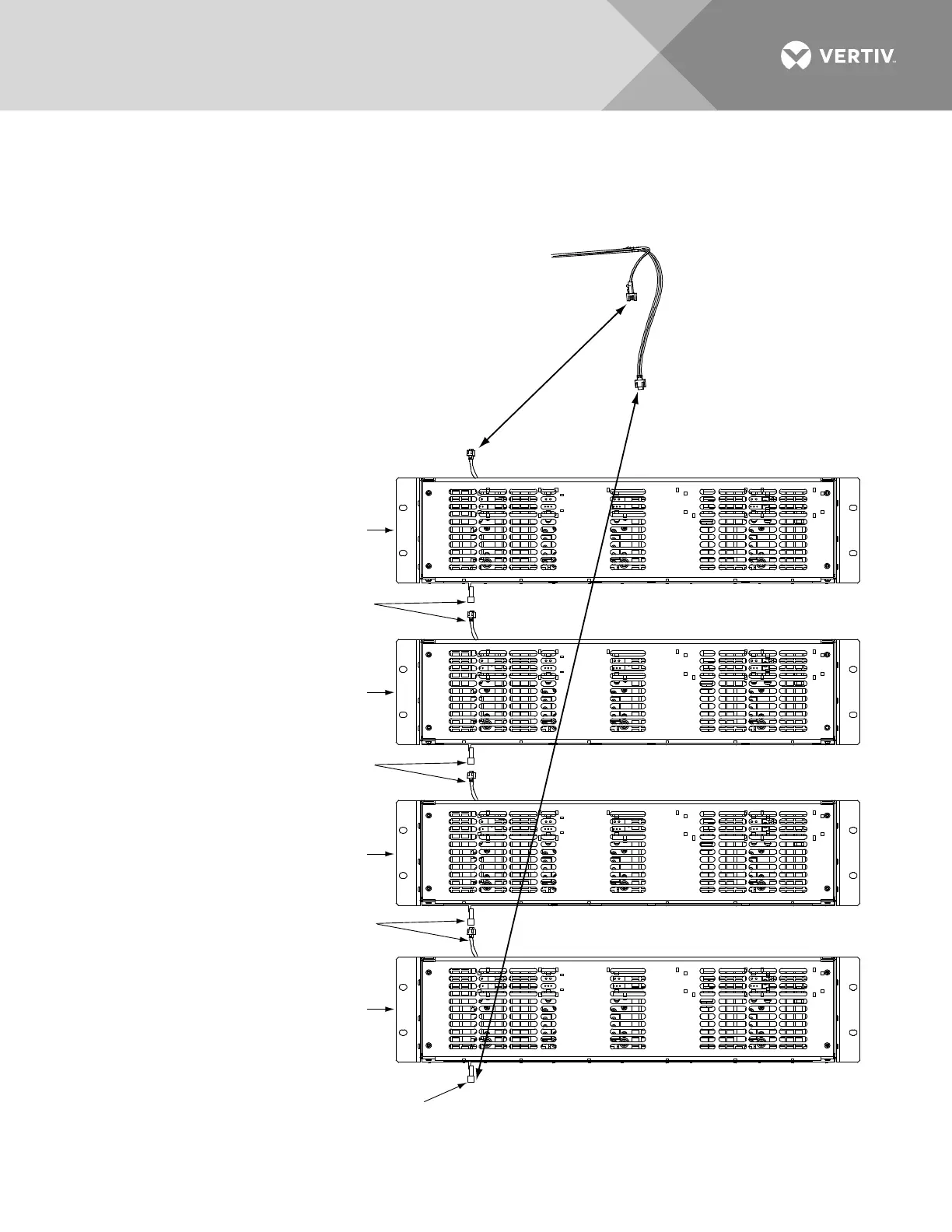

Figure 71: Control Bus Connections between Controller and Module Mounting Assemblies Spec. No.
588705000 and 588705500
Distribution
Cabinet Wire
Harness
Brown and
Brown/White Wires
Slate and
Slate/White Wires
Existing
Rectifier Module
Mounting Shelf
Existing
Rectifier Module
Mounting Shelf
These cables are
factory connected.
These cables are
factory connected.
These cables are
factory connected.
Existing
Rectifier Module
Mounting Shelf
Expansion
Rectifier Module
Mounting Shelf
Exploded View Shown to Illustrate Wire Connections Only
Disconnect cable coming from distribution
cabinet from this connector on bottom-most
existing rectifier shelf, then connect to the
top connector on the expansion rectifier shelf.
Connect the cable disconnected above
(coming from distribution cabinet) to bottom
connector on expansion rectifier shelf.
