Vertiv NetSure 7100 Series Installation Manual

Vertiv | NetSure 7100 Series -48V DC Power System Installation Manual (IM582127000) | Rev. BB
160

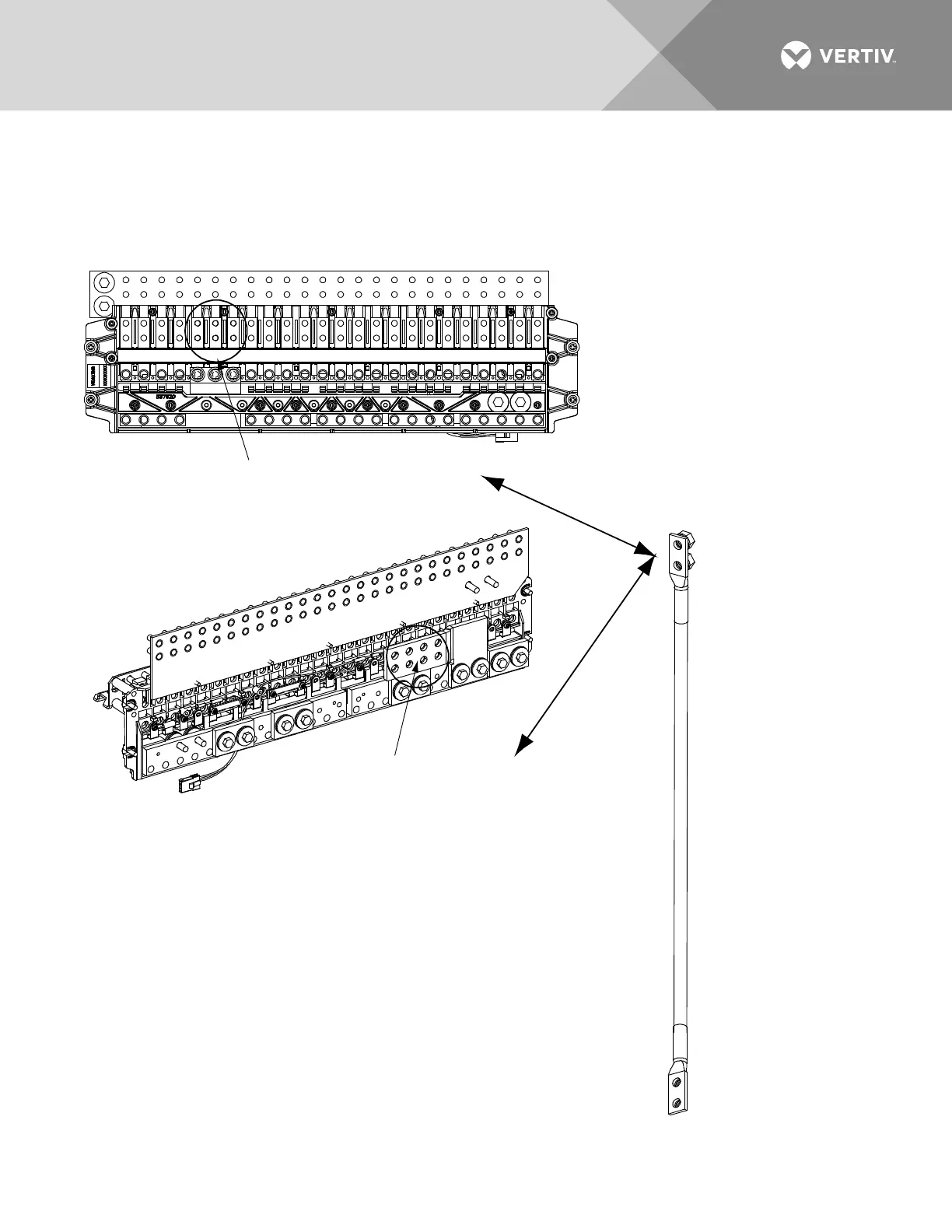

Figure 74: Installing Converter Output Cables (cont’d on next page)
List DA (Lists DB, DC, and DD similar.)
Connect /+/ jumpers to an available landing here.
Assembly order is: lug, 1/4" flat washer,
1/4" lock washer, 1/4-20 x 3/4” bolt.
Torque to 84 in-lbs.
To List DA,
DB, DC, DD,
DE, DF, DG,
DH, and DJ
Dual Voltage
Distribution Panel
This end is connected to
rectifier/converter shelf
+24V bus (see next
illustration).
Hardware provided
with Converter Option Kit.
P/N 556228
Converter
Output Cable
List DG
(Lists DE, DF, DH,
DJ, and DK similar.)
Rear
Front
Connect /+/ jumpers to an available landing here.
Assembly order is: lug, 1/4" flat washer,
1/4" lock washer, 1/4-20 x 3/4” bolt.
Torque to 84 in-lbs.
Dual Voltage Distribution Panel
Lugs may be mounted
back to back.
