Vertiv NetSure 7100 Series Installation Manual

Vertiv | NetSure 7100 Series -48V DC Power System Installation Manual (IM582127000) | Rev. BB
177

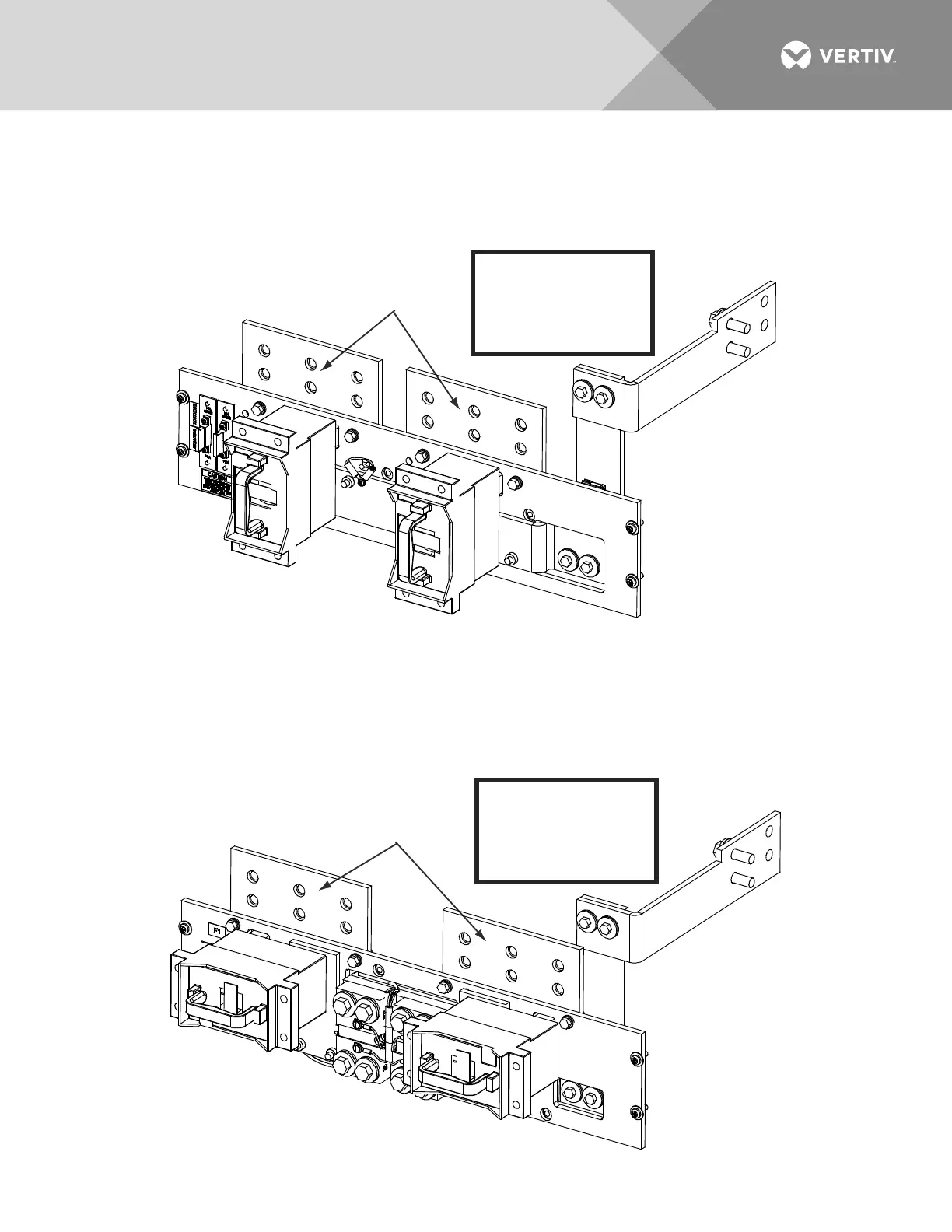

Figure 100: List BE: Battery Disconnect Distribution Panel, (2) TPH Fuse Battery Disconnect Position (without
Shunts) (without Return Busbar)
Figure 101: List BF: Battery Disconnect Distribution Panel, (2) TPH Fuse Battery Disconnect Positions (with
Shunts) (without Return Busbar)
-48VDC Battery
Connections
BATTERY CONNECTIONS
3/8-16 Captive Nuts on 1” Centers Maximum Lug Width: 1.88 inches.
(Customer must supply
or order additional
hardware)
Observe proper polarity
when making battery
connections.
WARNING!
-48VDC Battery
Connections
BATTERY CONNECTIONS
3/8-16 Captive Nuts on 1” Centers Maximum Lug Width: 1.88 inches.
(Customer must supply
or order additional
hardware)
Observe proper polarity
when making battery
connections.
WARNING!
