Vertiv NetSure 7100 Series Installation Manual

Vertiv | NetSure 7100 Series -48V DC Power System Installation Manual (IM582127000) | Rev. BB
180

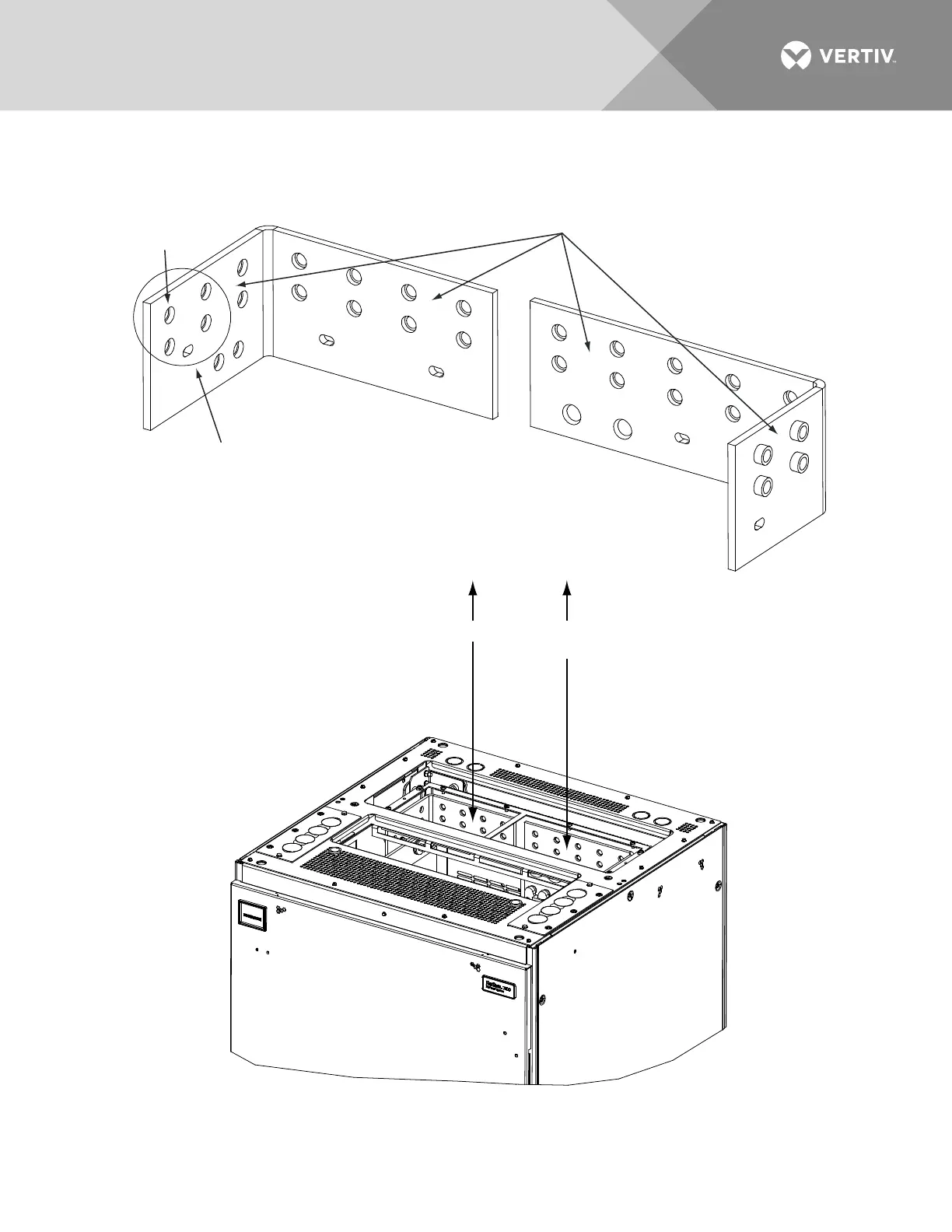

Figure 105: Battery Connections to Distribution Cabinet Battery Busbars (for system mounted in a enclosure)
Battery
(Return Side)
Busbar
Battery
(Load Side)
Busbar
BATTERY AND BATTERY RETURN CONNECTIONS
(7 landings per polarity)
3/8-16 Captive Nuts on 1” Centers
(Customer must supply
additional hardware)
Maximum Lug Width: 1.25 inches
(this location only).
3-Row and 4-Row Cabinets
Central Office
Ground
Power System Installed in a Cabinet
(Front View)
Battery
(Return Side)
Busbar
Battery
(Load Side)
Busbar
GND RTN
-48V
SUPPLY
