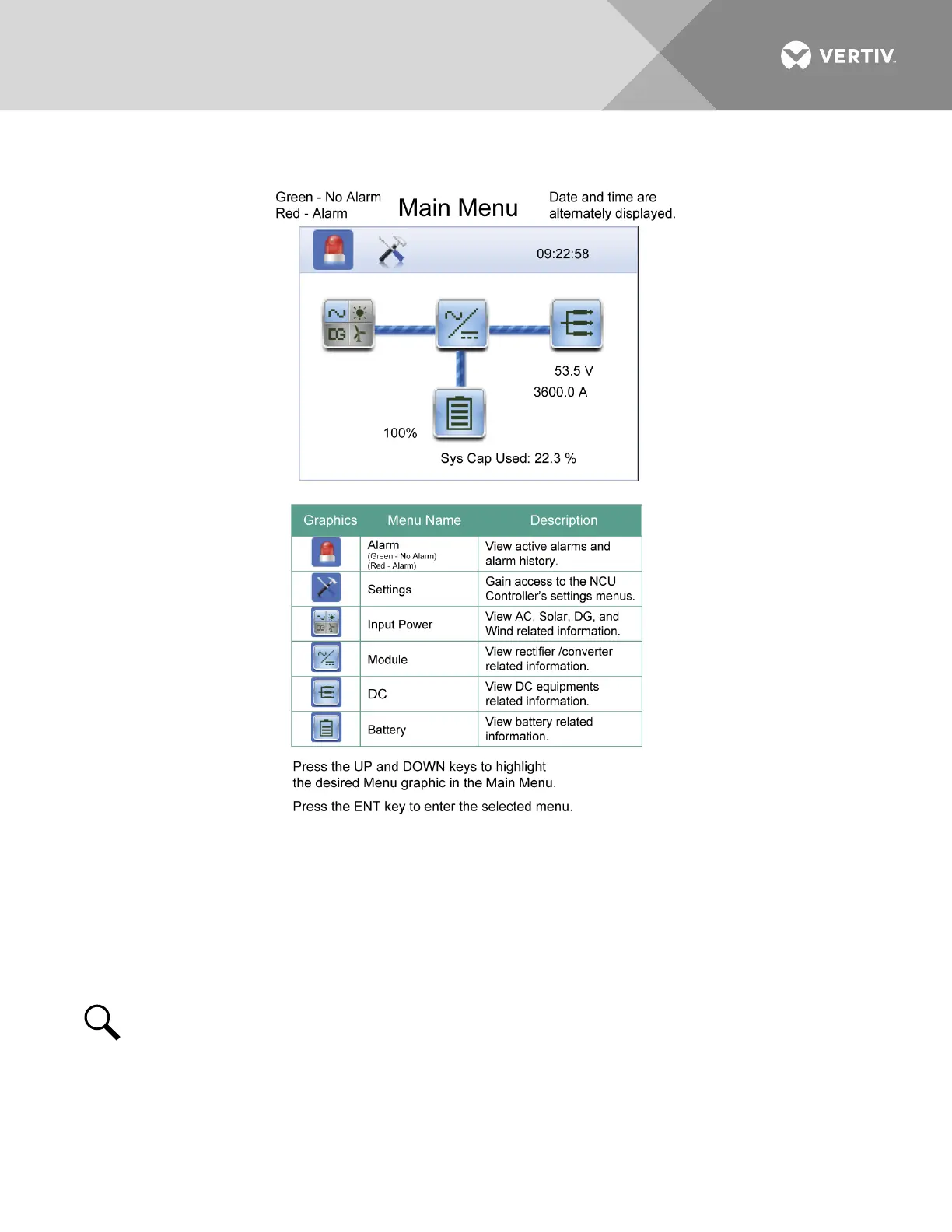

Figure 123: NCU Local Display Main Menu
4. System information is displayed in multiple screens. Press the ESC key to view other system
information. Press the down arrow key to view the next screen. Press the ESC key to return to the Main
Menu.
5. From the Main Menu, press the UP and DOWN keys to highlight the desired Menu graphic in the Main
Menu. Press the ENT key to enter the selected menu.
NOTE! Repeatedly press the “ESC” key to return in reverse order level by level from any submenu until
the Main Menu appears.
6. Verify and set the NCU controller as required for your application. Refer to the NCU Instructions
(UM1M830BNA) for procedures. Note that you will have to program the NCU for any temperature
probes and external inputs/outputs connected to the IB2 Interface Board, optional EIB Interface Board,
and optional SM-DU+ Shunt Interface Board. Refer also to “NCU Start Wizard” on page 215.
